Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) .
    2. Fig 1: View Of Coolant Heater & Heater Cord
    GM1680663Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the coolant heater cord (1) from the heater.

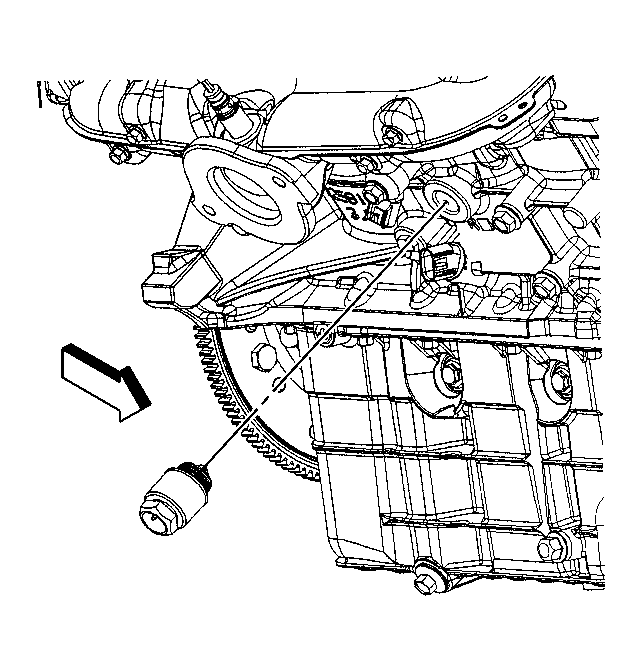

    3. Fig 2: View Of Coolant Heater
    GM1644185Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: DO NOT score the surface of the engine block hole when removing the coolant heater.
  3. Remove the coolant heater.
