Insulator, Seal Replacement - Hood (Chevrolet)
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Insulator, Seal Replacement - Hood (Chevrolet)

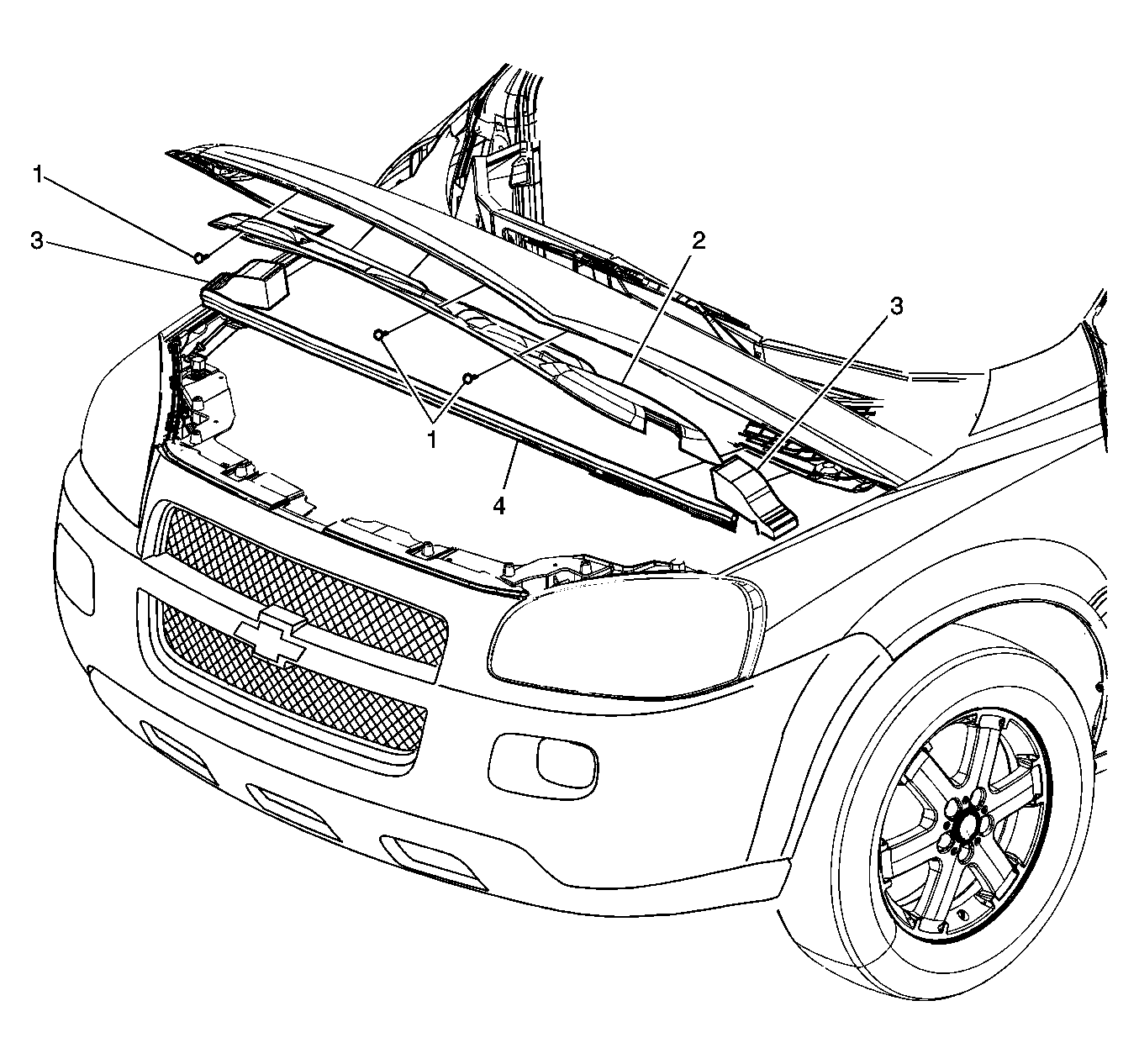

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| Hood Insulator Replacement | |
| 1 | Retainer, Hood Insulator (Qty: 4) |
| 2 | Insulator Assembly, Hood |
| Hood Rear Outer Seal Replacement | |
| 3 | Seal Assembly, Hood Rear Outer (Qty: 2) |
| Hood Rear Center Seal Replacement | |
| 4 | Seal Assembly, Hood Rear Center |
