Hood Latch Replacement (Chevrolet)
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Hood Latch Replacement (Chevrolet)
| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|

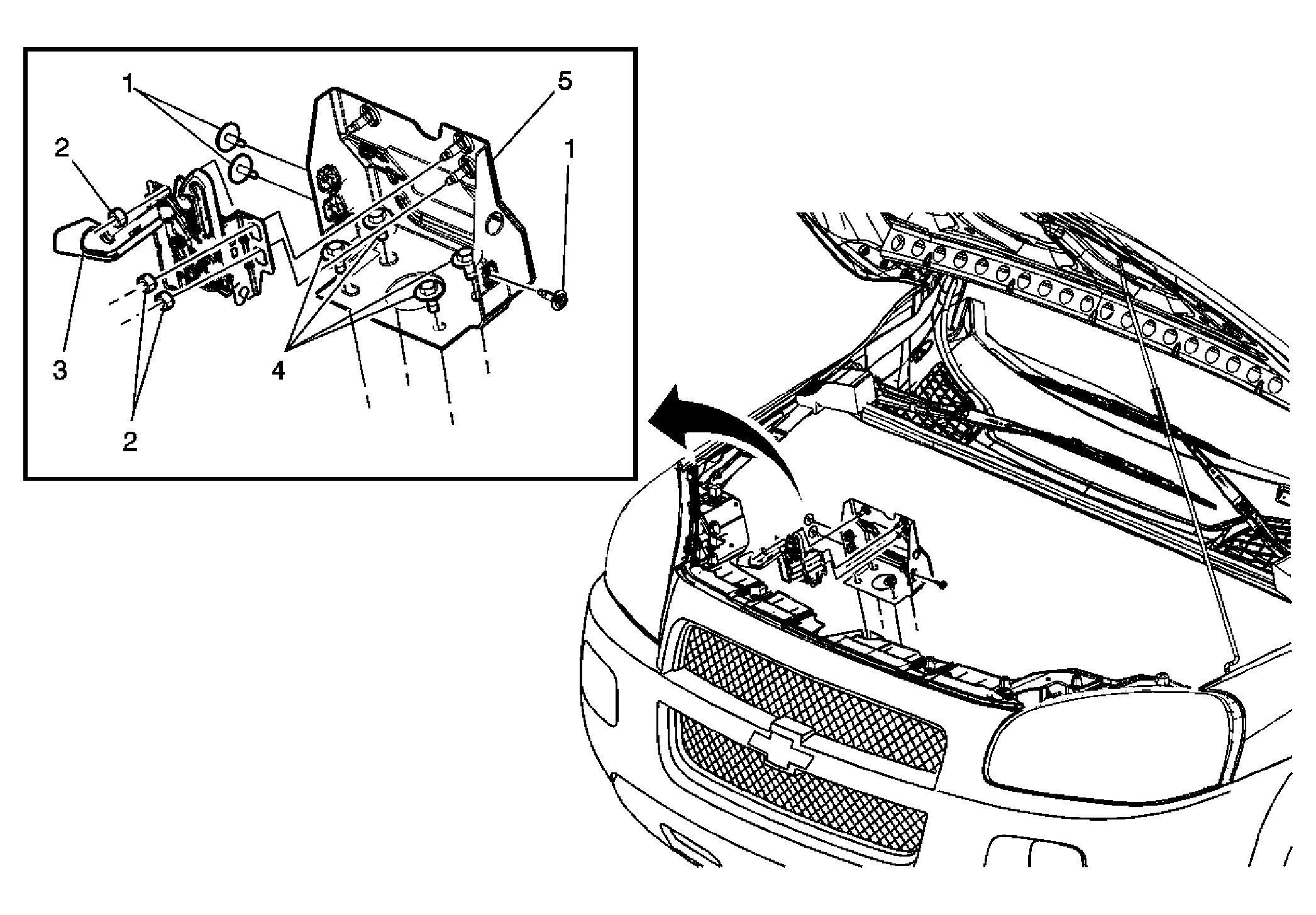

| Hood Primary and Secondary Latch Assembly Replacement | |
| 1 | Bolt, Hood Primary Latch Bracket (Qty: 3) Tighten: 12 N.m (106 lb in) |
| 2 | Nut, Hood Primary and Secondary Latch (Qty: 3) Tighten: 12 N.m (106 lb in) |
| 3 | Latch Assembly, Hood Primary and Secondary Tip: Remove the hood latch release cable from the latch assembly before removal. |
| Hood Primary Latch Bracket Assembly Replacement | |
| 1 | Bolt, Hood Primary Latch Bracket (Qty: 3) Tighten: 12 N.m (106 lb in) |
| 2 | Nut, Hood Primary and Secondary Latch (Qty: 3) Tighten: 12 N.m (106 lb in) |
| 3 | Latch Assembly, Hood Primary and Secondary Tip: Remove the hood latch release cable from the latch assembly before removal. |
| 4 | Bolt, Hood Primary Latch (Qty: 4) Tighten: 25 N.m (18 lb ft) |
| 5 | Bracket, Hood Primary Latch |
