Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
    2. Fig 1: Removing/Installing Cable At Hood Latch
    GM1479940Courtesy of GENERAL MOTORS CORP.
  2. Remove the hood latch cable (2) from the hood latch (1).
    3. Fig 2: Identifying Hood Latch Cable Retaining Clips
    GM1479942Courtesy of GENERAL MOTORS CORP.
  3. Remove the hood latch cable retaining clips (2).
  4. Attach a length of mechanics wire to the hood latch cable prior to removal. This lead will assist in reinstallation of the new hood latch cable.
  5. Remove the hood release handle. Refer to Hood Latch Release Handle Replacement .
    6. Fig 3: View Of Hood Latch Cable & Grommet
    GM363889Courtesy of GENERAL MOTORS CORP.
  6. Remove the hood latch cable and grommet rearward from the passenger compartment.

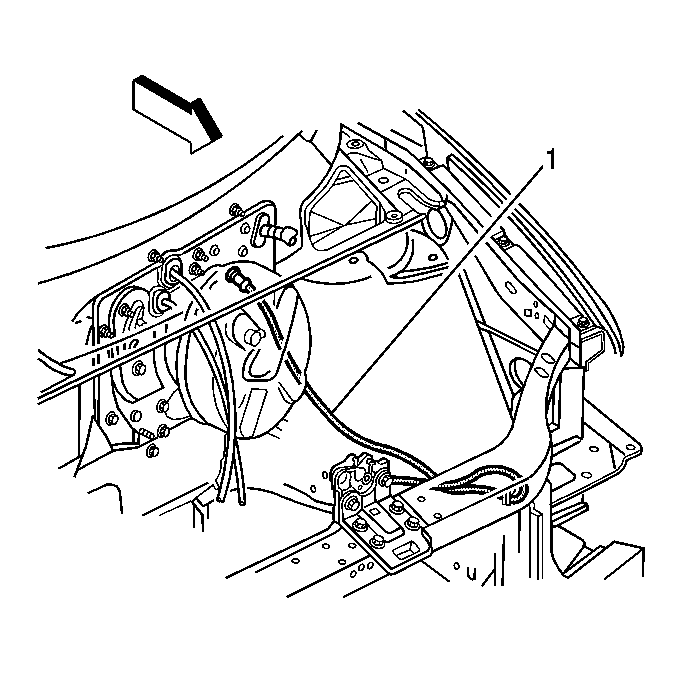

    7. Fig 4: Attaching Lead Wire To New Hood Latch Cable
    GM1479941Courtesy of GENERAL MOTORS CORP.
  7. Transfer the lead wire to the new hood latch cable (1).
