Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

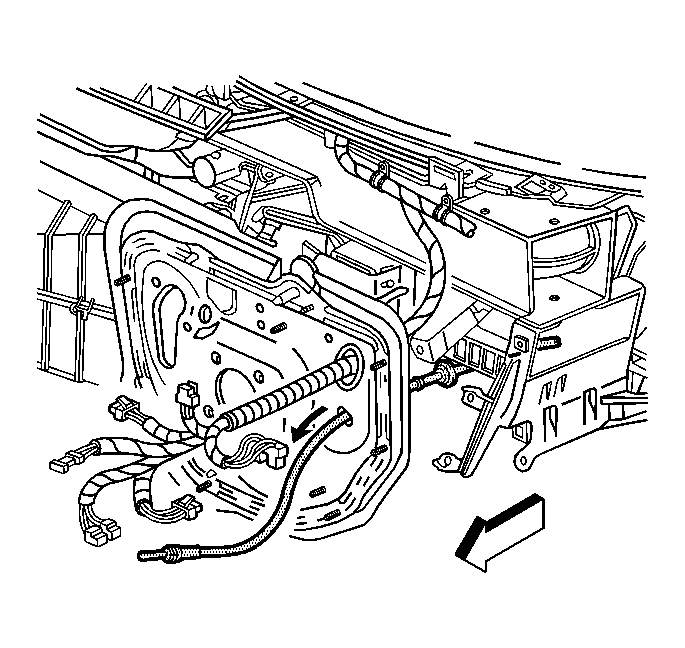

    Fig 1: Installing New Hood Latch Cable
    GM1479938Courtesy of GENERAL MOTORS CORP.
  1. Using the lead wire, pull the new hood latch cable through the dash panel and into the engine compartment.
  2. Seat the grommet fully into the dash panel.
  3. Install the hood release handle. Refer to Hood Latch Release Handle Replacement .
    4. Fig 2: Removing/Installing Cable At Hood Latch
    GM1479940Courtesy of GENERAL MOTORS CORP.
  4. Install the hood latch cable (2) to the hood latch (1).
    5. Fig 3: Identifying Hood Latch Cable Retaining Clips
    GM1479942Courtesy of GENERAL MOTORS CORP.
  5. Install the hood latch cable retaining clips (2).
  6. Close the hood.
