Headlamp and Bumper Fascia Mounting Panel - Front (Buick)
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Headlamp and Bumper Fascia Mounting Panel - Front (Buick)

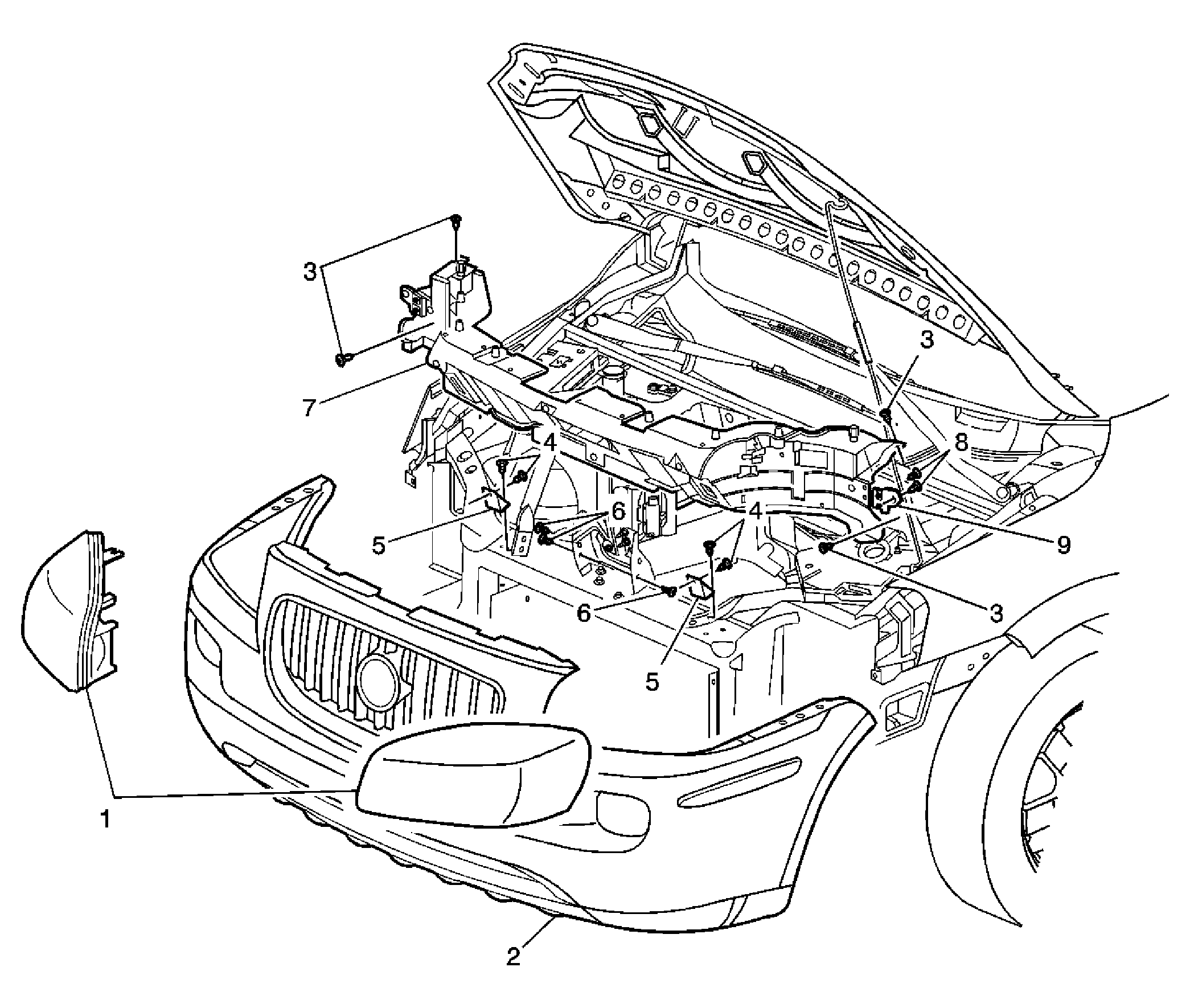

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Headlamp and Front End Mounting Panel Replacement | |
| 1 | Assembly, Headlamp (Qty: 2) Refer to Headlamp Assembly or Headlamp Bulb Replacement in Lighting Systems. |
| 2 | Fascia Assembly, Front Bumper Refer to Fascia Replacement - Front Bumper (Buick) or Fascia Replacement - Front Bumper (Chevrolet) or Fascia Replacement - Front Bumper (Pontiac) in Bumpers. |
| 3 | Bolt, Headlamp and Front End Fascia Mounting Panel (Qty: 4) Tighten: 12 N.m (106 lb in) |
| 4 | Bolt, Headlamp and Front End Fascia Mounting Panel (Qty: 4) Tighten: 12 N.m (106 lb in) |
| 5 | Bracket, Headlamp and Front End Fascia Mounting Panel Center (Qty: 2) |
| 6 | Bolt, Primary Hood Latch Release Bracket (Qty: 3) Tighten: 12 N.m (106 lb in) |
| 7 | Panel, Headlamp and Front End Fascia Mounting |
| Headlamp and Front End Mounting Panel Outer Bracket Replacement | |
| 1 | Assembly, Headlamp Refer to Headlamp Assembly or Headlamp Bulb Replacement in Lighting Systems. |
| 8 | Bolt, Headlamp and Front End Mounting Panel Outer Bracket (Qty: 2) Tighten: 12 N.m (106 lb in) |
| 9 | Bracket, Headlamp and Front End Mounting Panel Outer |
