Bumper, Adjuster Replacement - Hood (Chevrolet)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

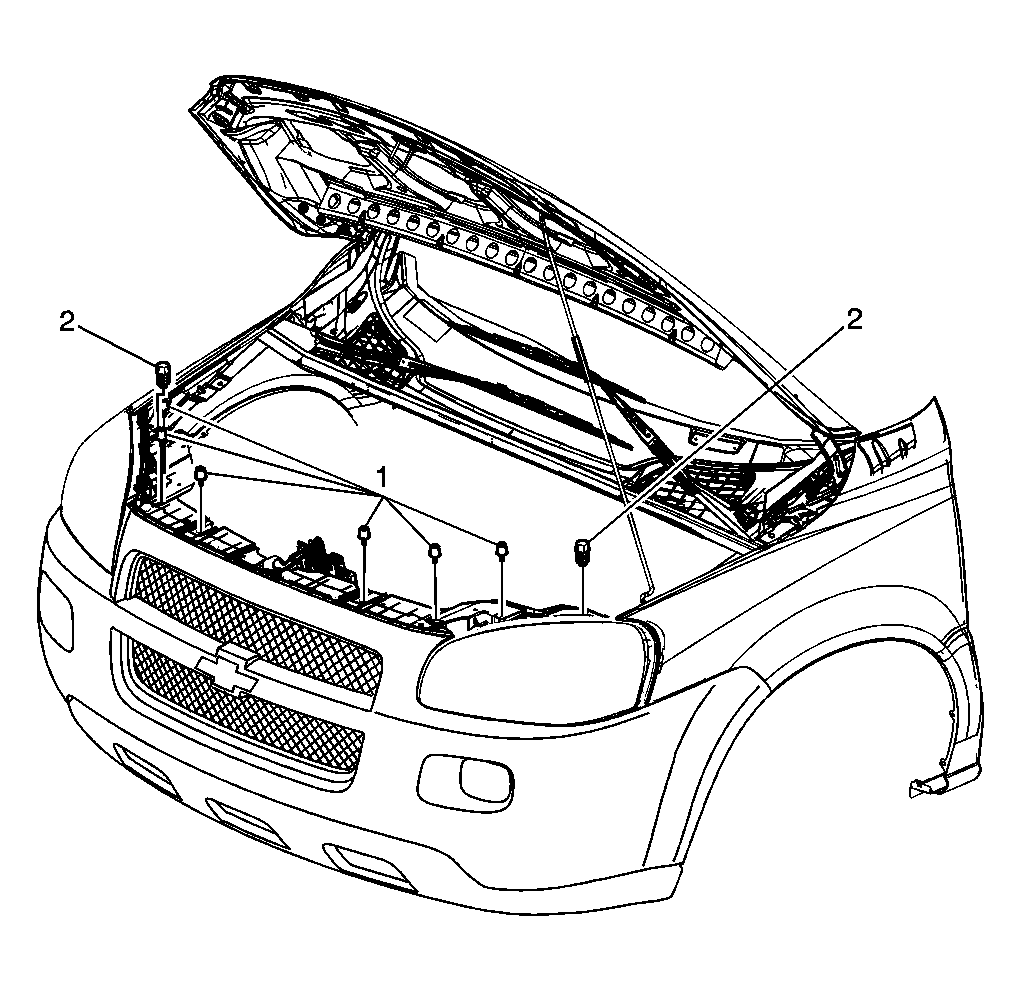

Fig 1: Locating Hood Bumper Adjuster (Chevrolet)
GM1535078Courtesy of GENERAL MOTORS CORP.
Bumper, Adjuster Replacement - Hood (Chevrolet)

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Hood Front Bumper Replacement
1 Bumper, Hood Front (Qty: 6)
Hood Adjuster Front Bumper Replacement
2 Bumper, Hood Adjuster Front (Qty: 2)
Tip:  Adjust hood bumpers as necessary by turning up or down.
