Air Inlet Grille Panel Replacement (Pontiac)
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Air Inlet Grille Panel Replacement (Pontiac)

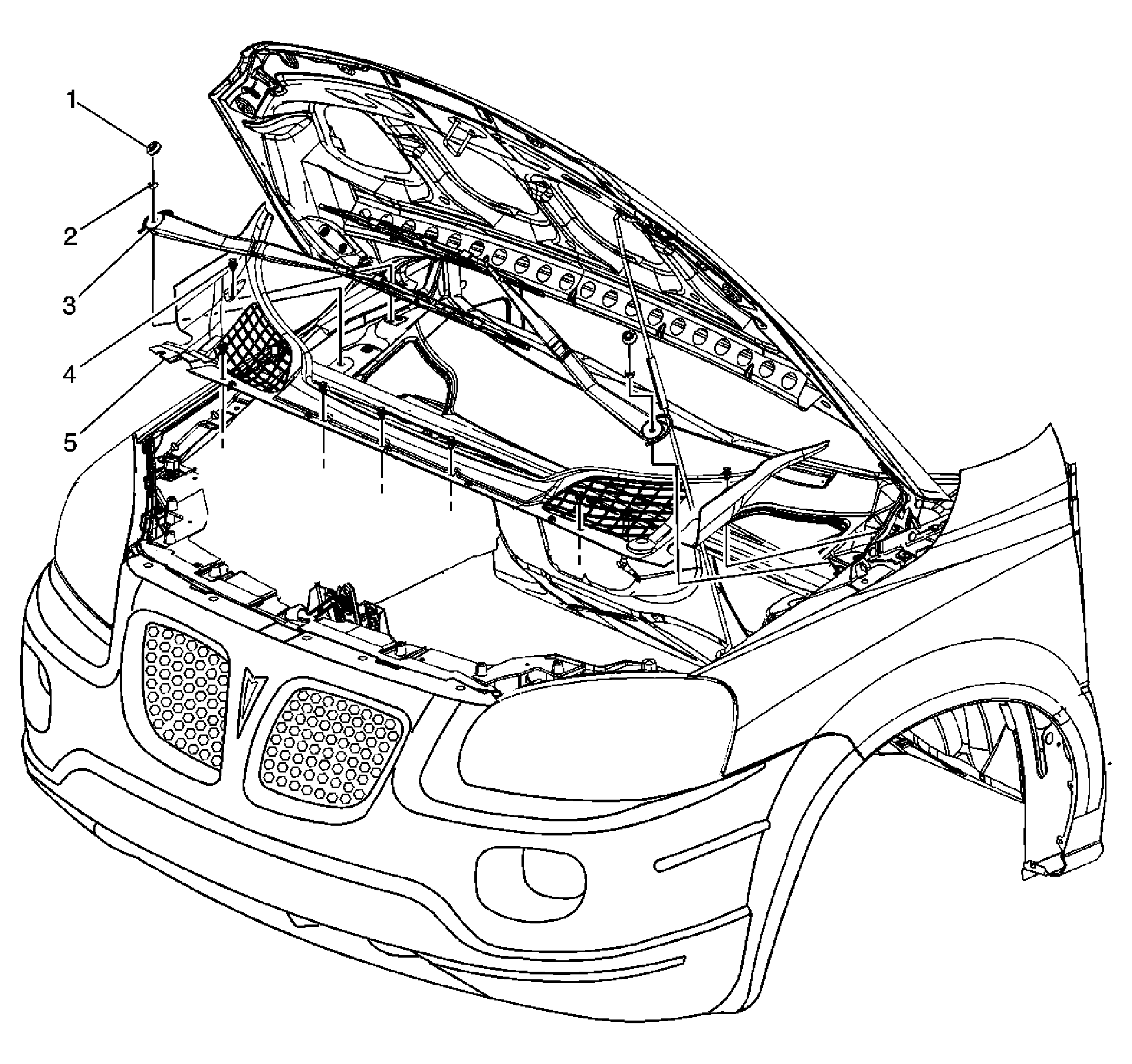

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Cap, Windshield Wiper Arm Finish |
| 2 | Nut, Windshield Wiper Arm Tighten: 30 N.m (22 lb ft) |
| 3 | Blade Assembly, Windshield Wiper Arm Refer to Wiper Arm Replacement in Wipers/Washer Systems. |
| 4 | Retainer, Air Inlet Grille (Qty: 7) |
| 5 | Panel Assembly, Air Inlet Grille |
