Air Deflector Replacement - Radiator (Pontiac)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

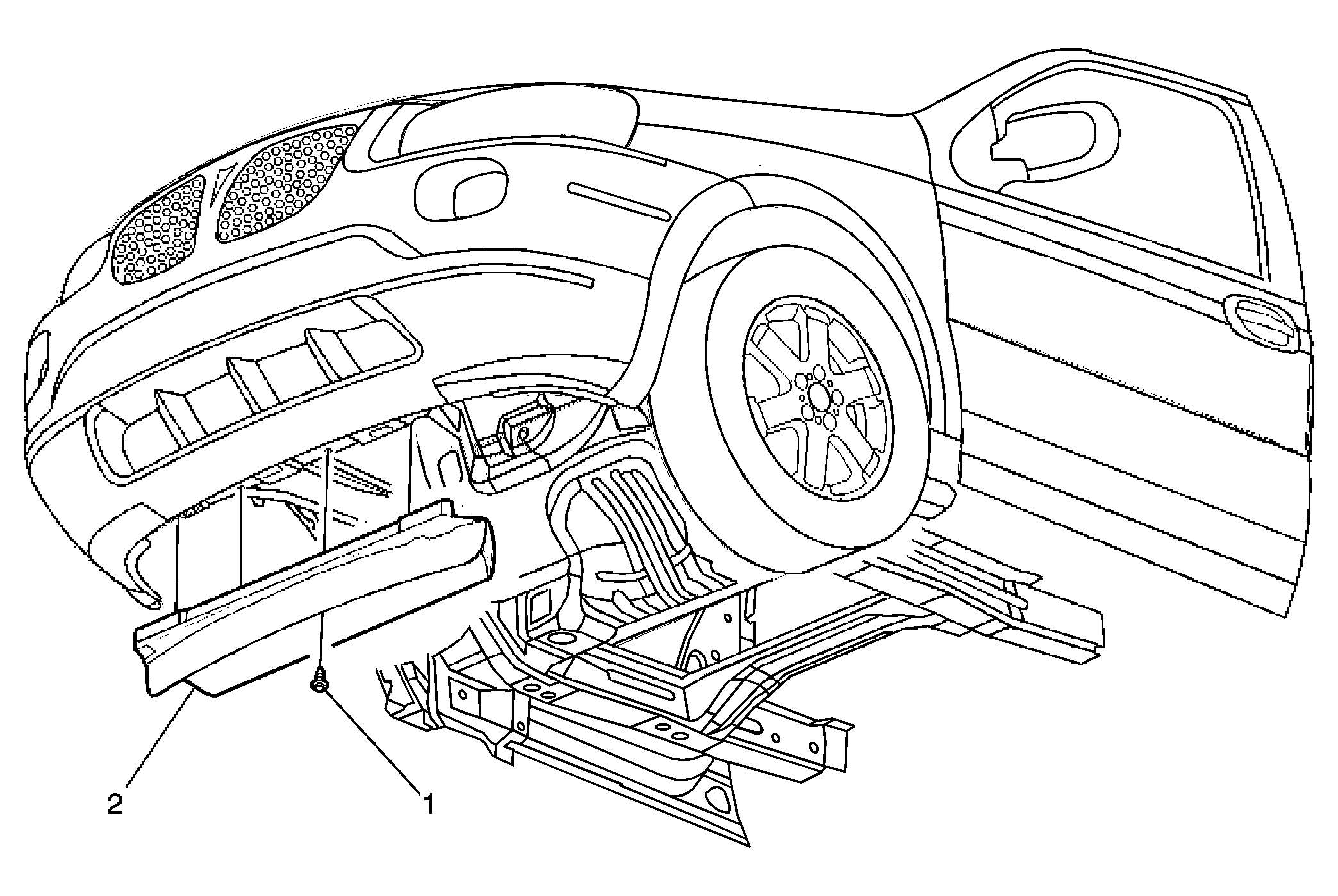

Fig 1: Replacing Radiator Air Deflector (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Screw, Radiator Air Lower Deflector (Qty: 4) Tighten: 6 N.m (53 lb in)
2	Deflector, Radiator Air Lower
