Molding Replacement - Rear Bumper Fascia Upper

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

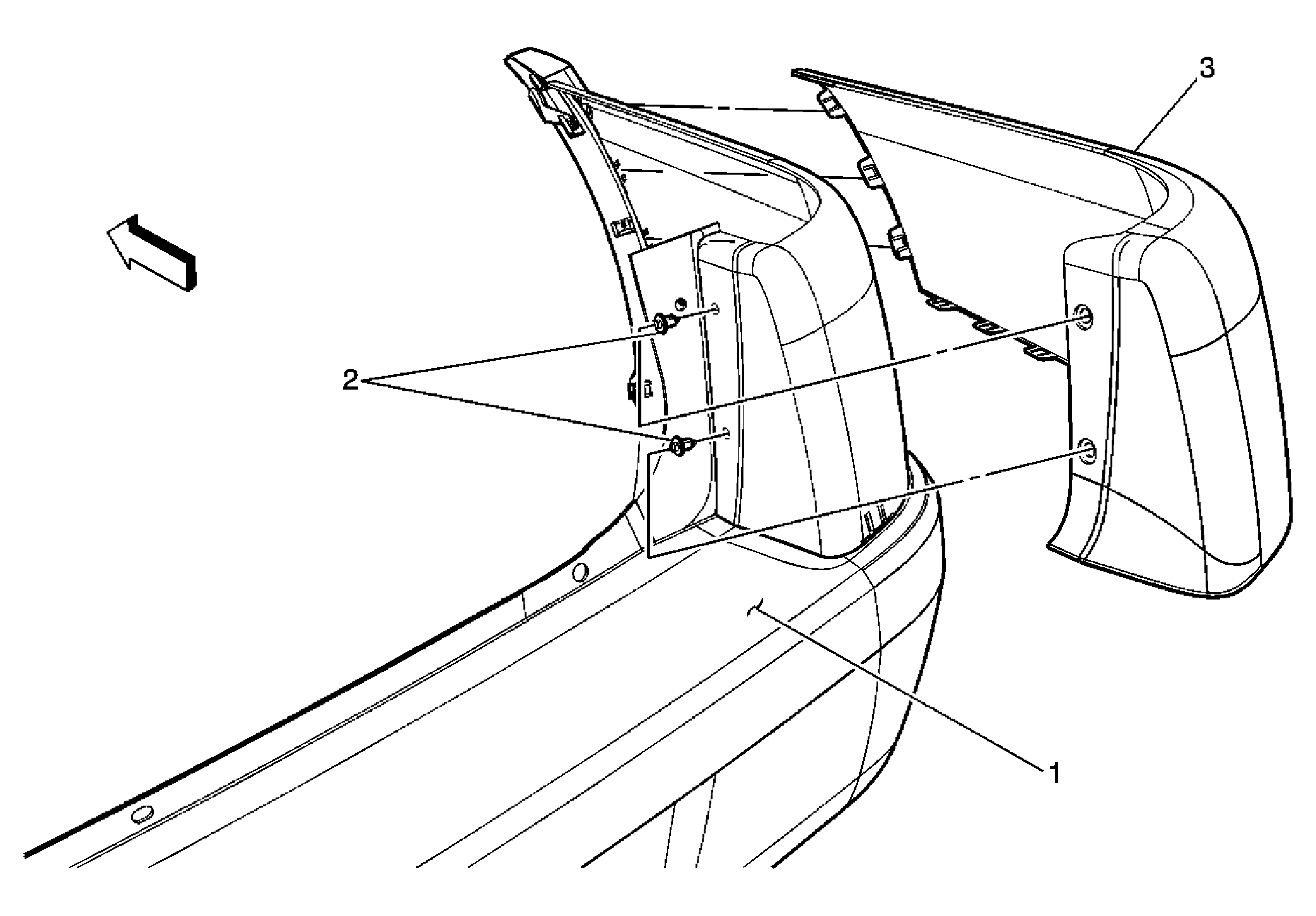

Fig 1: Identifying Rear Bumper Fascia Upper Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Fascia Assembly, Rear Bumper Refer to Fascia Replacement - Rear Bumper (Pontiac) , Fascia Replacement - Rear Bumper (Buick) or Fascia Replacement - Rear Bumper (Chevrolet) .
2	Retainer, Push-pin (Qty: 1)
3	Retainer, Push-pin (Qty: 1)
4	Upper Molding, Rear Bumper Fascia Tip: Release the integral clips from inside the upper molding and push outward. Pull forward edge of molding outward and then push rearward in order to remove.
