Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.

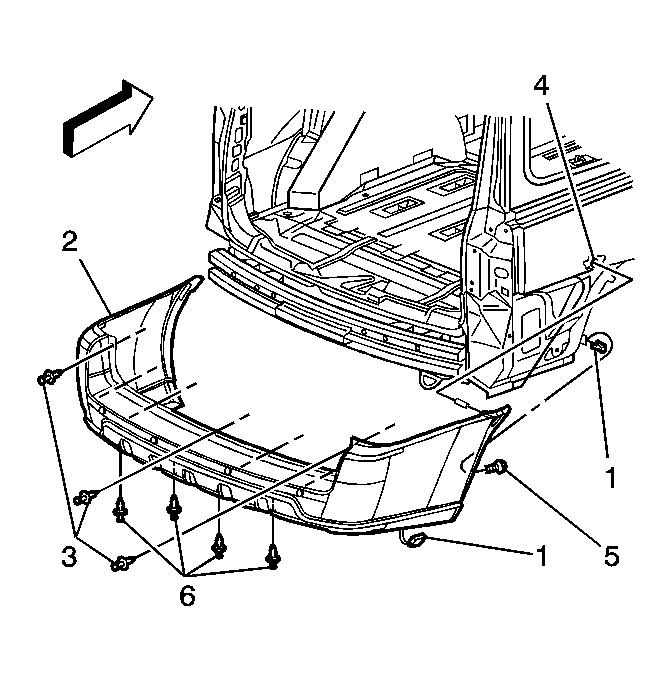

    2. Fig 1: Identifying Rear Bumper Fascia (Chevrolet)
    GM1479988Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connection (1) for the rear object sensor harness, if equipped.
  3. Use the J 38778  in order to remove the push-in retainers (3) from the upper and lower (6) rear bumper fascia.
  4. Remove the screws (5) at the right and left wheel well from the rear bumper fascia.
  5. Remove the palnut from the rear bumper fascia outer retainer.
  6. Remove the rear bumper fascia (2) from the vehicle.
  7. Remove the rear parking assist (RPA) sensors, if equipped. Refer to Rear Object Sensor Replacement in Rear Parking Assist.
  8. Transfer the rear object sensors to the new rear bumper fascia, if equipped.
