Fascia Replacement - Front Bumper - Lower (Pontiac )
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Fascia Replacement - Front Bumper - Lower (Pontiac )

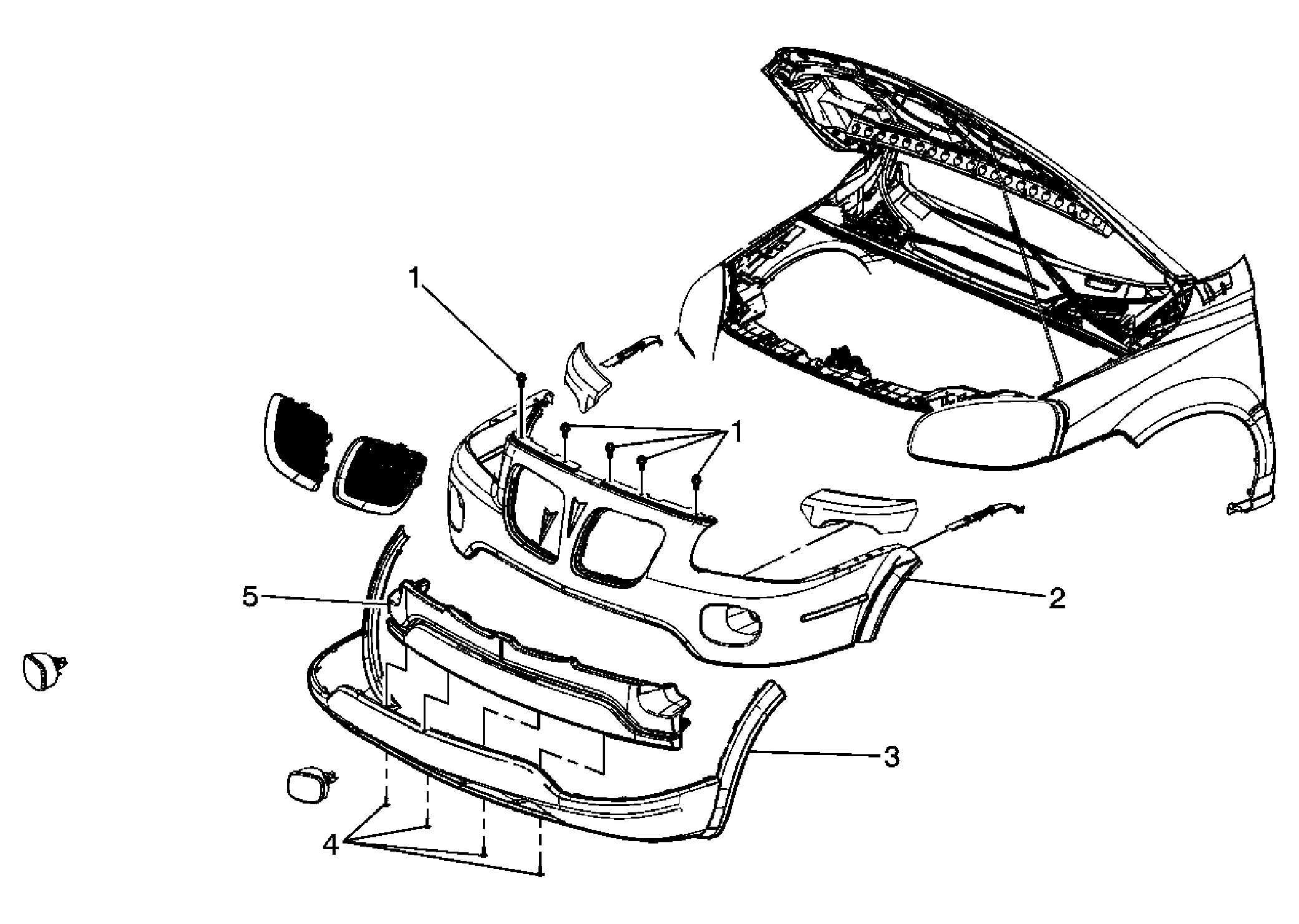

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Retainer, Front Fascia (Qty: 5) Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Buick) , Fascia Replacement - Front Bumper (Chevrolet) or Fascia Replacement - Front Bumper (Pontiac) |
| 2 | Fascia, Front Bumper Upper |
| 3 | Fascia, Front Bumper Lower Tip: You must release the integral clips in order to separate the lower fascia from the upper fascia. Pull the lower fascia outward in order to remove. |
| 4 | Retainers, Front Bumper Fascia Energy Absorber (Qty: 4) Tip: Discard the old retainers and install NEW retainers upon re-assembly. |
| 5 | Absorber, Front Bumper Fascia Energy |
