Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DRL lamps to the fascia, connect the wiring as fascia is put on the vehicle.
  2. Position the energy absorber to the lower fascia.
  3. Install the screws in order to secure the energy absorber to the lower fascia.

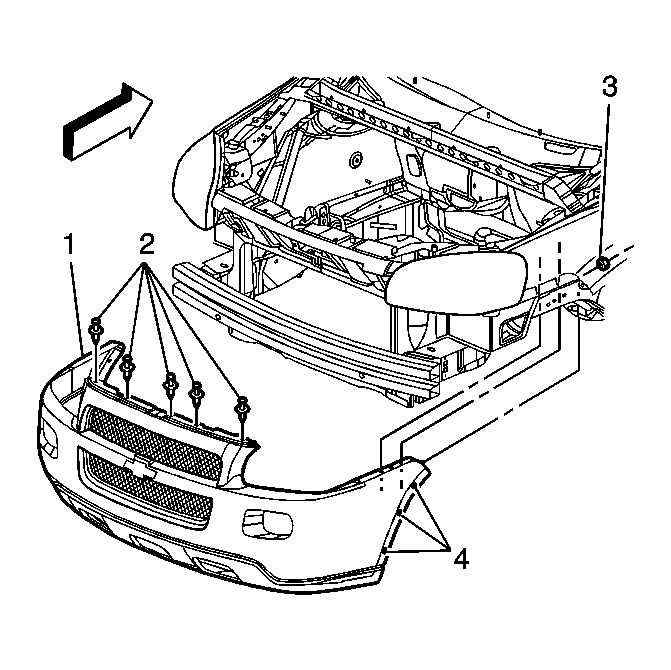

    4. Fig 1: Removing/Installing Front Bumper Impact Bar (Chevrolet)
    GM1479974Courtesy of GENERAL MOTORS CORP.
  4. Align the front bumper fascia (1) to the front impact bar and to the body.
  5. Install the push-in retainers (3) to the upper front bumper fascia.
    6. Fig 2: Identifying Front Bumper Fascia Fasteners
    GM1479985Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Secure both rear upper corner fascia fasteners.

    Tighten:  Tighten the fasteners to 3 N.m (27 lb in).

  7. Install both front headlamps. Refer to Headlamp Assembly or Headlamp Bulb Replacement in Lighting Systems.
  8. Install the right and left front fender liner. Refer to Wheelhouse Liner Replacement - Front in Body Front End.
  9. Install both of the front tires and wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  10. Lower the vehicle.
