Fascia Grille Replacement (Pontiac)
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Fascia Grille Replacement (Pontiac)

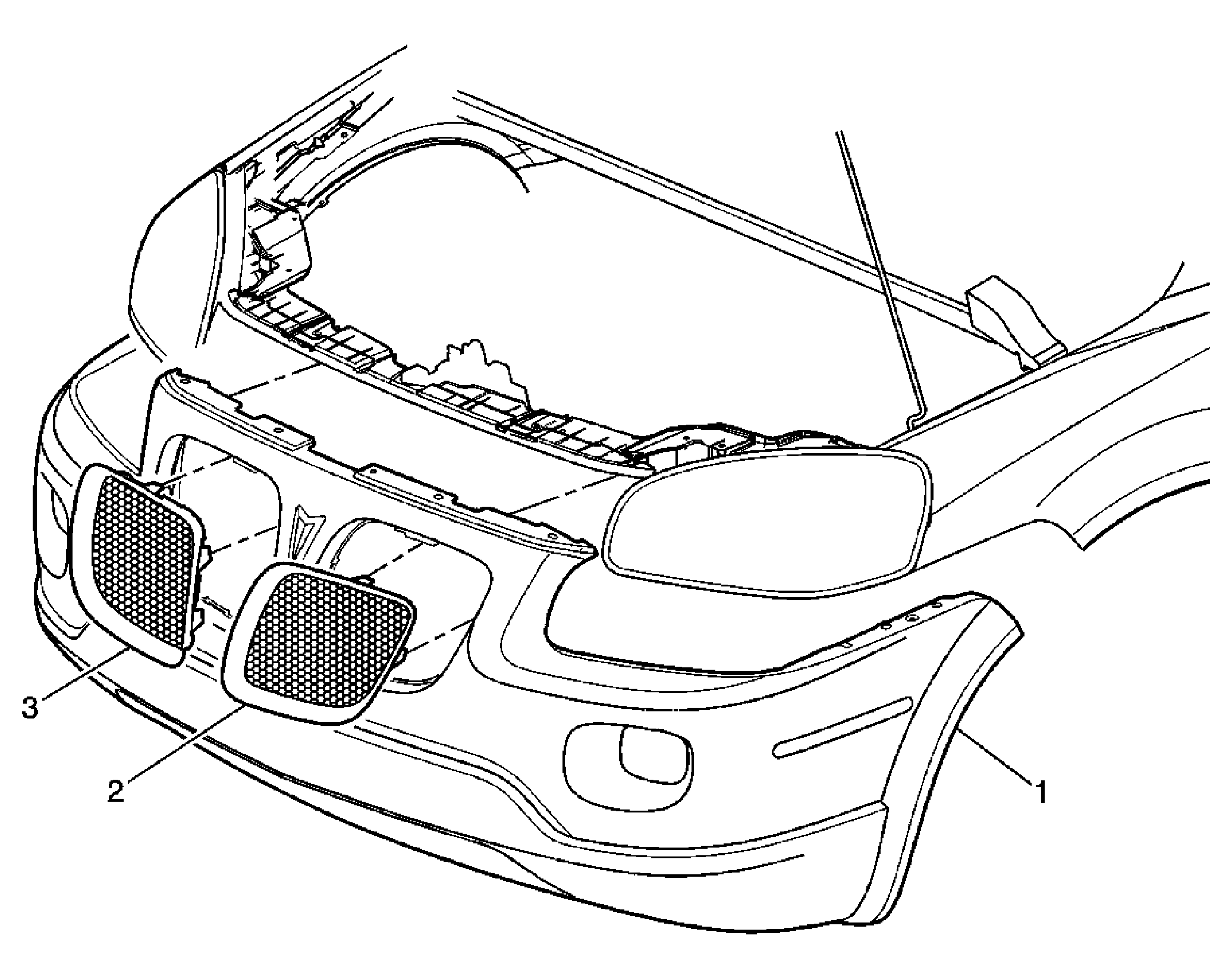

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| Radiator LH Grille Replacement | |
| 1 | Fascia Assembly, Front Bumper Refer to Fascia Replacement - Front Bumper (Buick) , Fascia Replacement - Front Bumper (Chevrolet) or Fascia Replacement - Front Bumper (Pontiac) . |
| 2 | Grille Assembly, Radiator LH Tip: From the back side of the fascia release the locking tab and push the grille out through the front of the fascia. |
| Radiator RH Grille Replacement | |
| 1 | Fascia Assembly, Front Bumper Refer to Fascia Replacement - Front Bumper (Buick) , Fascia Replacement - Front Bumper (Chevrolet) or Fascia Replacement - Front Bumper (Pontiac) . |
| 3 | Grille Assembly, Radiator RH Tip: From the back side of the fascia release the locking tab and push the grille out through the front of the fascia. |
