Fascia Grille Replacement (Chevrolet)

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

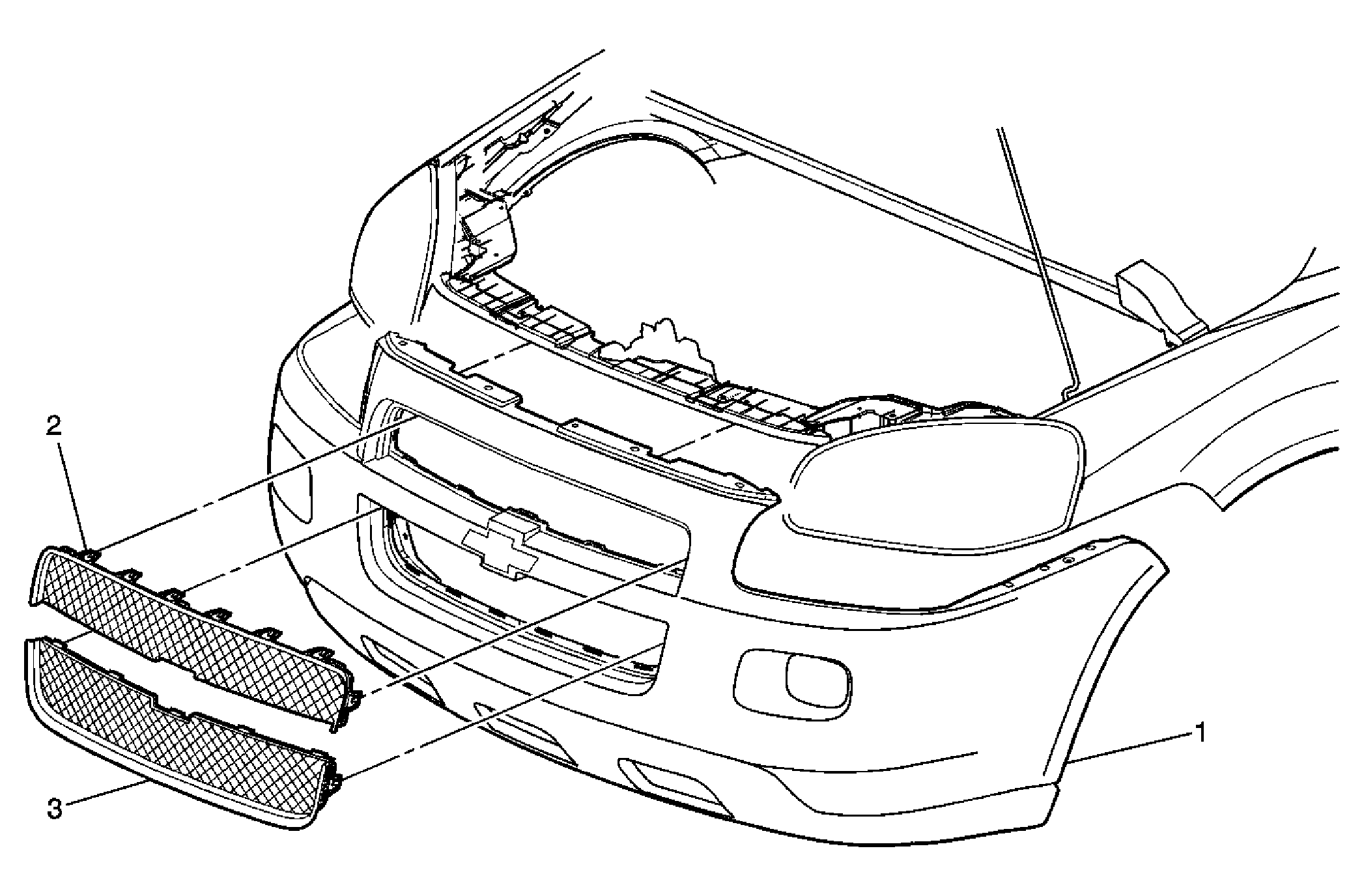

Fig 1: Identifying Fascia Grille Components (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
Upper Radiator Grille Replacement
1	Fascia Assembly, Front Bumper Refer to Fascia Replacement - Front Bumper (Buick) , Fascia Replacement - Front Bumper (Chevrolet) or Fascia Replacement - Front Bumper (Pontiac) .
2	Grille Assembly, Radiator Upper Tip: From the back side of the fascia release the locking tab and push the grille out through the front of the fascia.
Lower Radiator Grille Replacement
1	Fascia Assembly, Front Bumper Refer to Fascia Replacement - Front Bumper (Buick) , Fascia Replacement - Front Bumper (Chevrolet) or Fascia Replacement - Front Bumper (Pontiac) .
3	Grille Assembly, Radiator Lower Tip: From the back side of the fascia release the locking tab and push the grille out through the front of the fascia.
