Cigar Lighter Housing or 12 Volt Accessory Power Receptacle Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

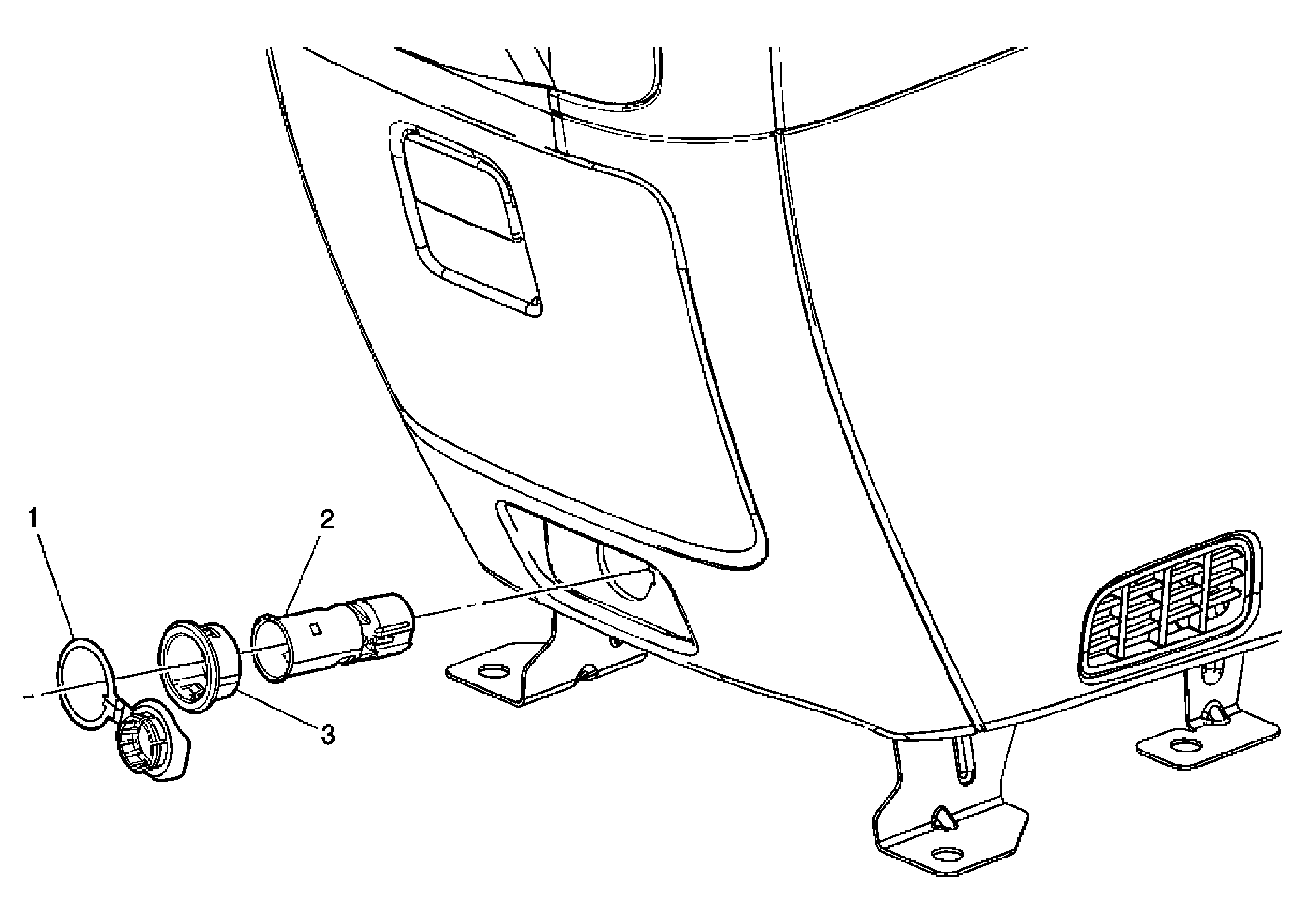

Fig 1: Identifying Cigar Lighter Housing or 12 Volt Accessory Power Receptacle
GM1502977Courtesy of GENERAL MOTORS CORP.
Cigar Lighter Housing or 12 Volt Accessory Power Receptacle Replacement

Callout Component Name
1 Cap and Tether, Accessory Power Outlet Receptacle
2 Receptacle, Accessory Power Outlet
Tip:
  1. Using J 42059  Cigar Lighter Socket Remover, remove the receptacle from the retainer. See Special Tools .
  2. Disconnect the electrical connection.
3 Retainer, Accessory Power Outlet
