120 Volt Receptacle Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

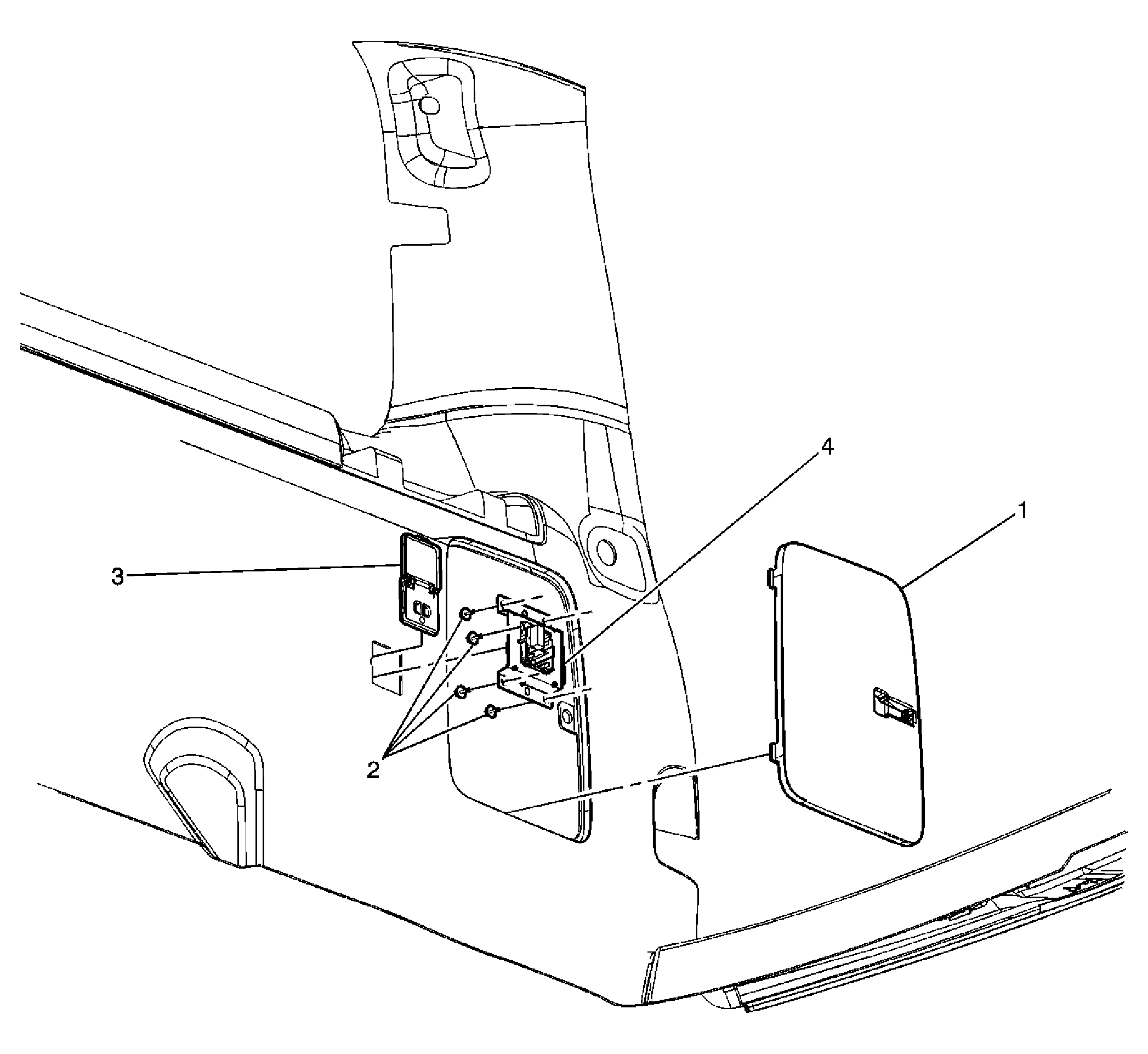

Fig 1: Identifying 120 Volt Receptacle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Panel, Accessory Trim Refer to Accessory Panel Replacement - Rear in Interior Trim.
2	Bolt/Screw, AC/DC Power Outlet Receptacle Bracket (Qty: 4) Tighten: 2 N.m (18 lb in)
3	Cover, AC/DC Power Accessory Receptacle Outlet
4	Receptacle Assembly, AC/DC Power Accessory Tip: Disconnect the electrical connectors.
