Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate sill plate. Refer to Door Sill Plate Replacement - Liftgate in Interior Trim.

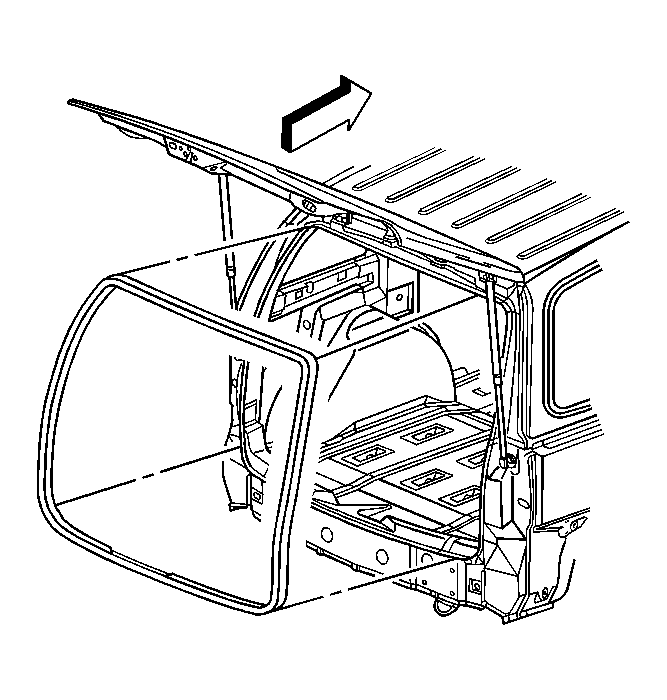

    3. Fig 1: Identifying Liftgate Weatherstrip
    GM1502064Courtesy of GENERAL MOTORS CORP.
  3. Pull the liftgate weatherstrip from the liftgate opening.
  4. Clean all adhesive from the liftgate opening pinch-weld flange.
