Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

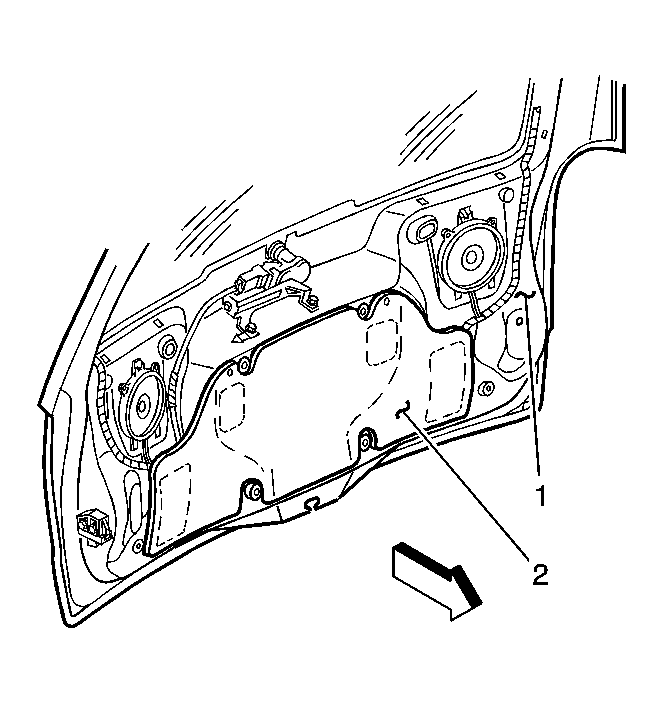

    Fig 1: View Of Liftgate Water Deflector
    GM1480611Courtesy of GENERAL MOTORS CORP.
  1. Open the liftgate.
  2. Remove the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate .
  3. Release the water deflector (2) from the liftgate structure (1).
