Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

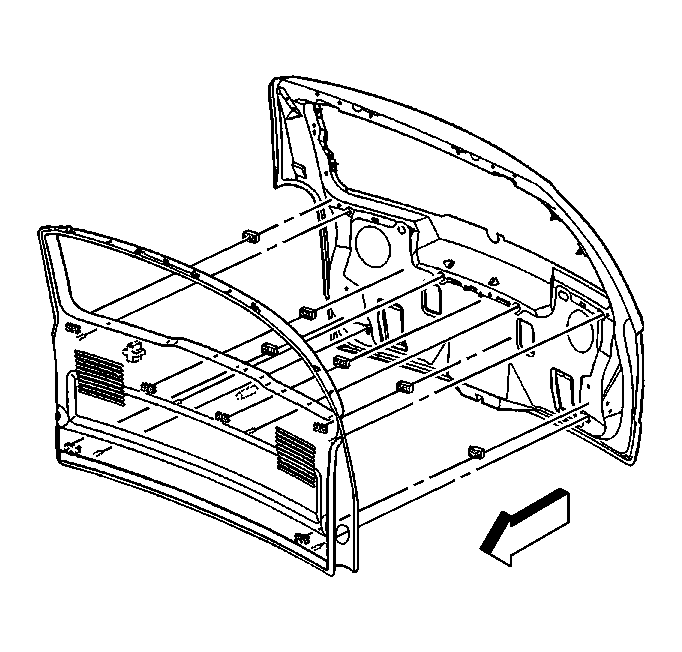

    Fig 1: View Of Trim Panel For Lift Gate
    GM313624Courtesy of GENERAL MOTORS CORP.
  1. Align the 4-way and 2-way wedges on the liftgate trim panel to the wedges on the liftgate.
  2. Align the liftgate trim panel studs to the holes in the liftgate.
  3. Align the upper edge of the liftgate trim panel to the top center of the liftgate.
  4. Install the upper edge of the liftgate trim panel to the top center of the liftgate.
  5. Push on the liftgate trim panel in the four corners and center to secure the trim panel retainers.
  6. Install the liftgate pull strap. Refer to Pullstrap Replacement - Liftgate .
  7. Close the liftgate.
