Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

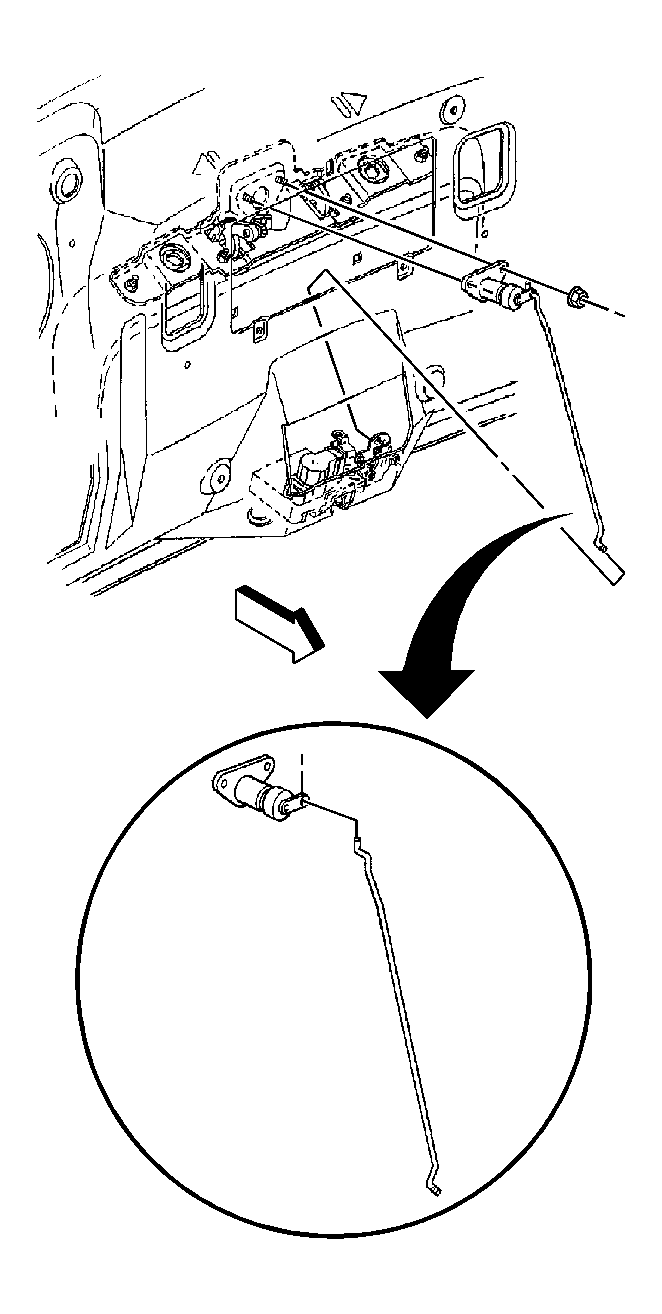

    Fig 1: Locating Nuts For Lock Cylinder
    GM313609Courtesy of GENERAL MOTORS CORP.
  1. Install the lock cylinder to the liftgate.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the liftgate lock cylinder retaining nuts.

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

  3. Attach the lock rod to the key cylinder.

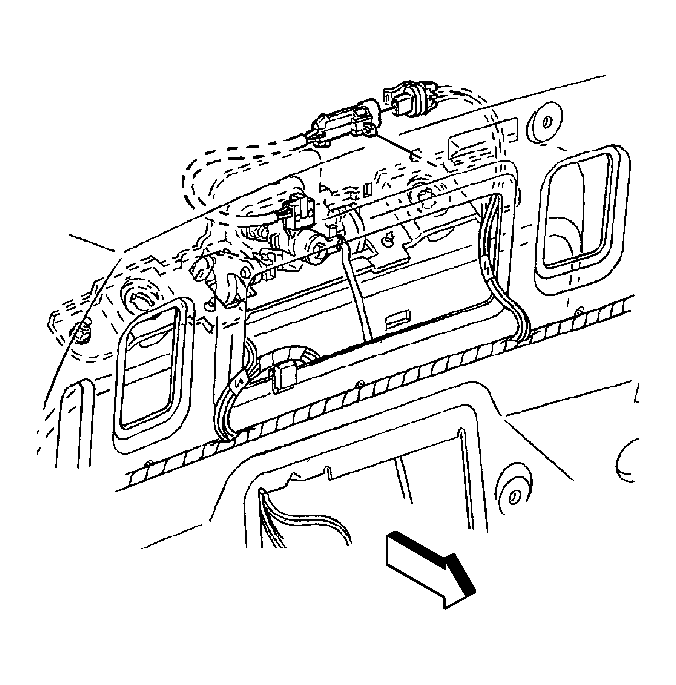

    4. Fig 2: View Of Electrical Connector
    GM313608Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector, if equipped.
  5. Attach the lock rod to the latch.
  6. Install the liftgate handle molding. Refer to Handle Replacement - Liftgate .
  7. Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate .
  8. Close the liftgate.
