Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Installing Liftgate Handle Gasket
    GM1479960Courtesy of GENERAL MOTORS CORP.
  1. Install a new liftgate handle gasket (1) prior to installing the liftgate handle.
    2. Fig 2: View Of Liftgate Handle
    GM1479958Courtesy of GENERAL MOTORS CORP.
  2. Install the liftgate latch cable to the liftgate handle.
  3. Align the liftgate handle studs with holes in liftgate.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the liftgate handle retaining bolts (2).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

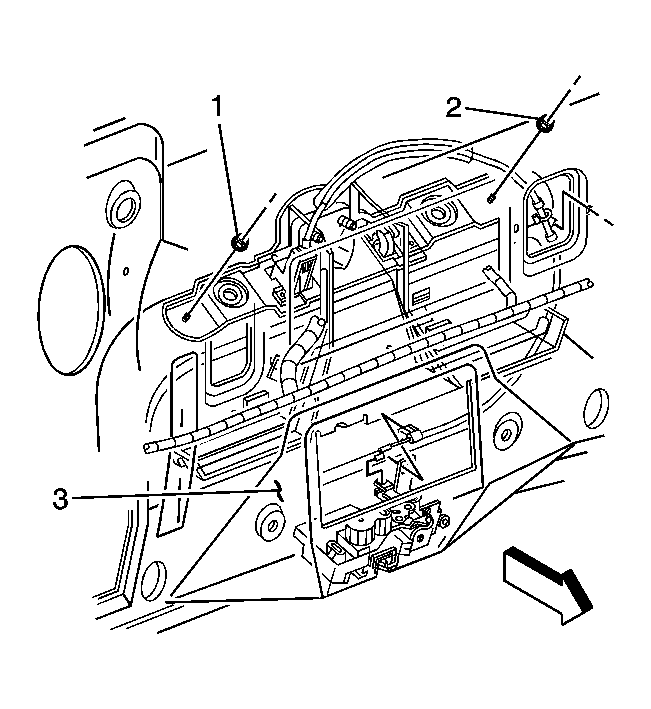

    5. Fig 3: Identifying Liftgate Handle Assembly
    GM1479957Courtesy of GENERAL MOTORS CORP.
  5. Install the liftgate handle retaining nuts (1, 2) to the studs.

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

  6. Install license plate lamp sockets by turning sockets clockwise.
  7. Install the water deflector. Refer to Water Deflector Replacement - Liftgate .
  8. Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate .
  9. Close the liftgate.
