Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  2. Install the splash shield. Refer to Splash Shield Replacement - Engine .

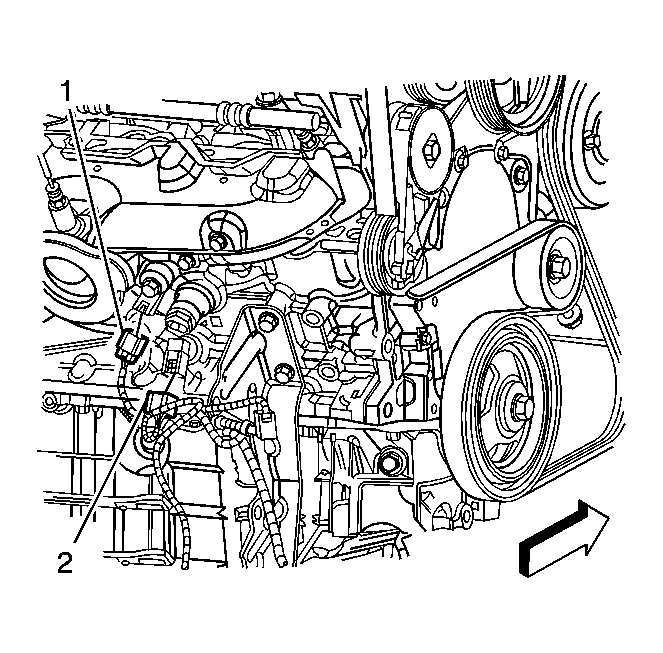

    3. Fig 1: Identifying Knock Sensor (KS) & Crankshaft Position (CKP) Sensor Connectors
    GM1679872Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine harness electrical connector (1) from the knock sensor.

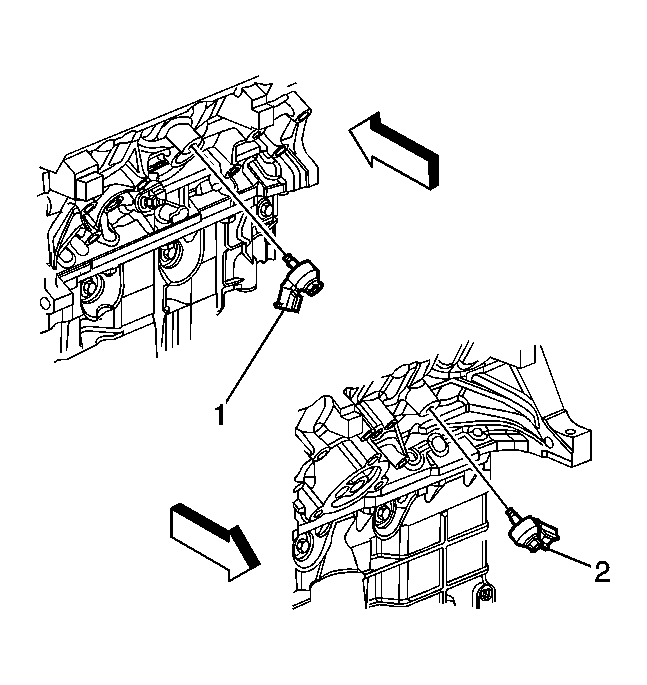

    4. Fig 2: Removing/Installing Knock Sensor
    GM1587771Courtesy of GENERAL MOTORS CORP.
  4. Loosen and remove the bank 2 knock sensor (2).
