Roof Console Filler and Compartment Door Latch Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

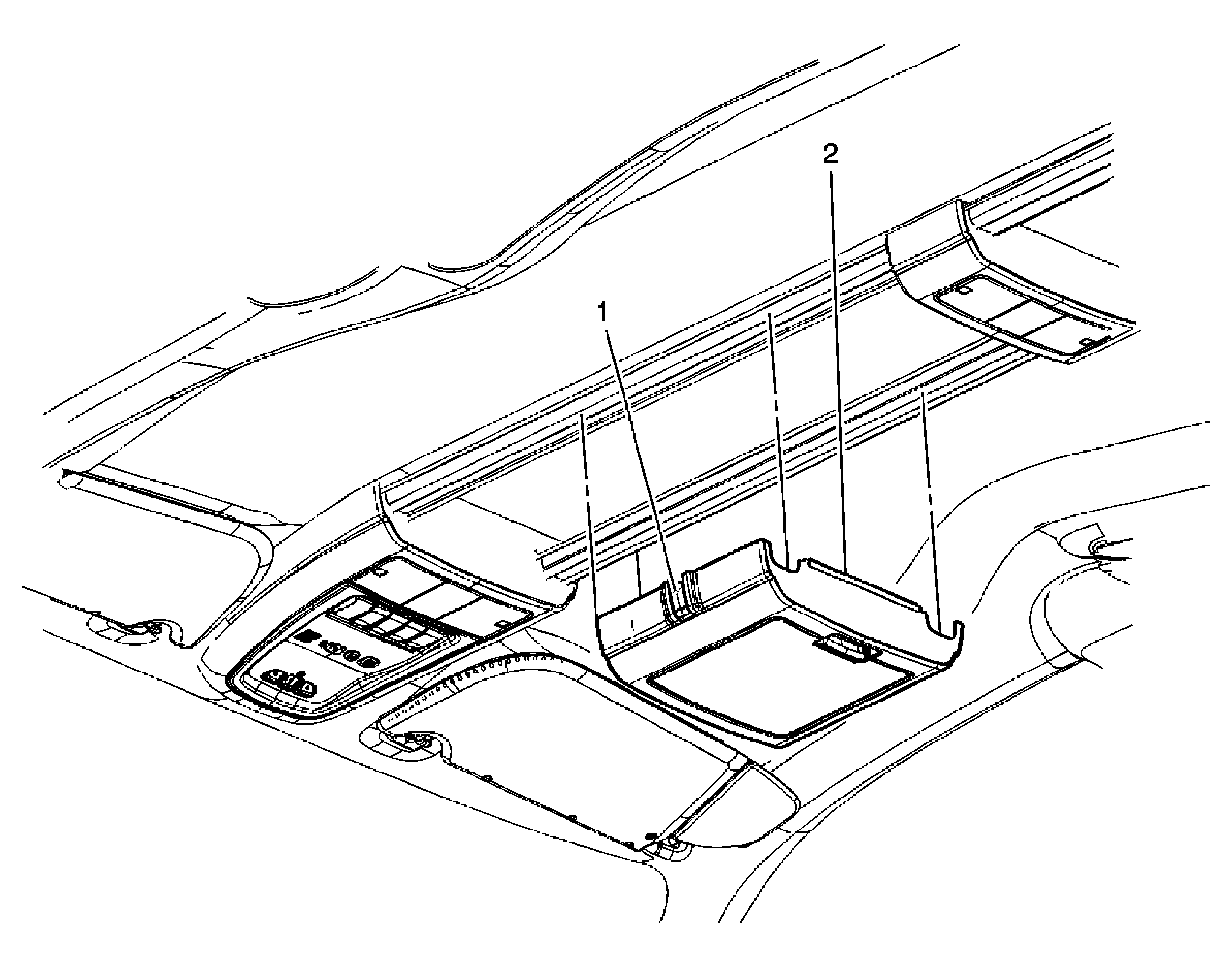

Fig 1: Identifying Roof Console Filler & Compartment Door Latch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Latch Assembly, Roof Console Filler Compartment (Qty: 2) Tip: Twist the latch assembly counterclockwise, located one on each side of the console filler. Pull outward on the latch clips in order to release the console filler from the console rails. Twist and pull the latch assembly out of the console filler if replacing the latch assembly.
2	Compartment, Roof Console Filler
