Console and Mounting Bracket Replace - Overhead

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

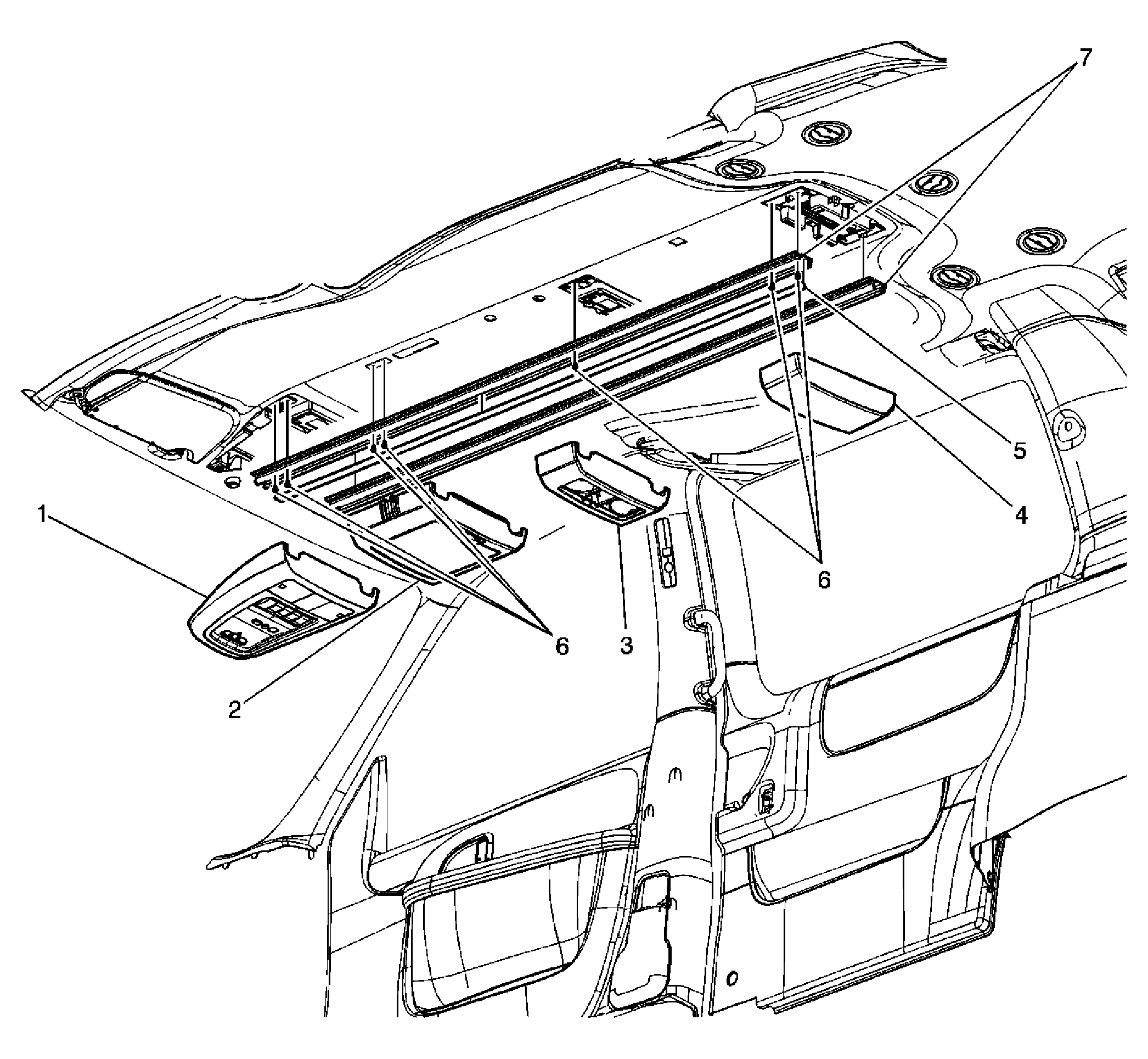

Fig 1: View Of Overhead Console & Mounting Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Console Assembly, Overhead Refer to Console Replacement - Overhead .
2	Compartment Assembly, Overhead Storage Tip: Twist the latch clips counterclockwise, located one on each side of the storage compartment. Pull outward on the latch clips in order to release the storage compartment from the rail assembly. Twist and pull the latch out of the storage compartment if replacing the latch.
3	Lamp Assembly, Dome Refer to Dome Lamp Replacement .
4	Cap, Rail End Tip: Pull downward to disengage the yield clip retainers.
5	Sealing Strip, Roof Console Rail (Qty: 2)
6	Screw, Overhead Console Rail (Qty: 14) Tighten: 9 N.m (80 lb ft)
7	Rail, Overhead Console (Qty: 2)
