Steering Wheel Control Switch Assembly Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

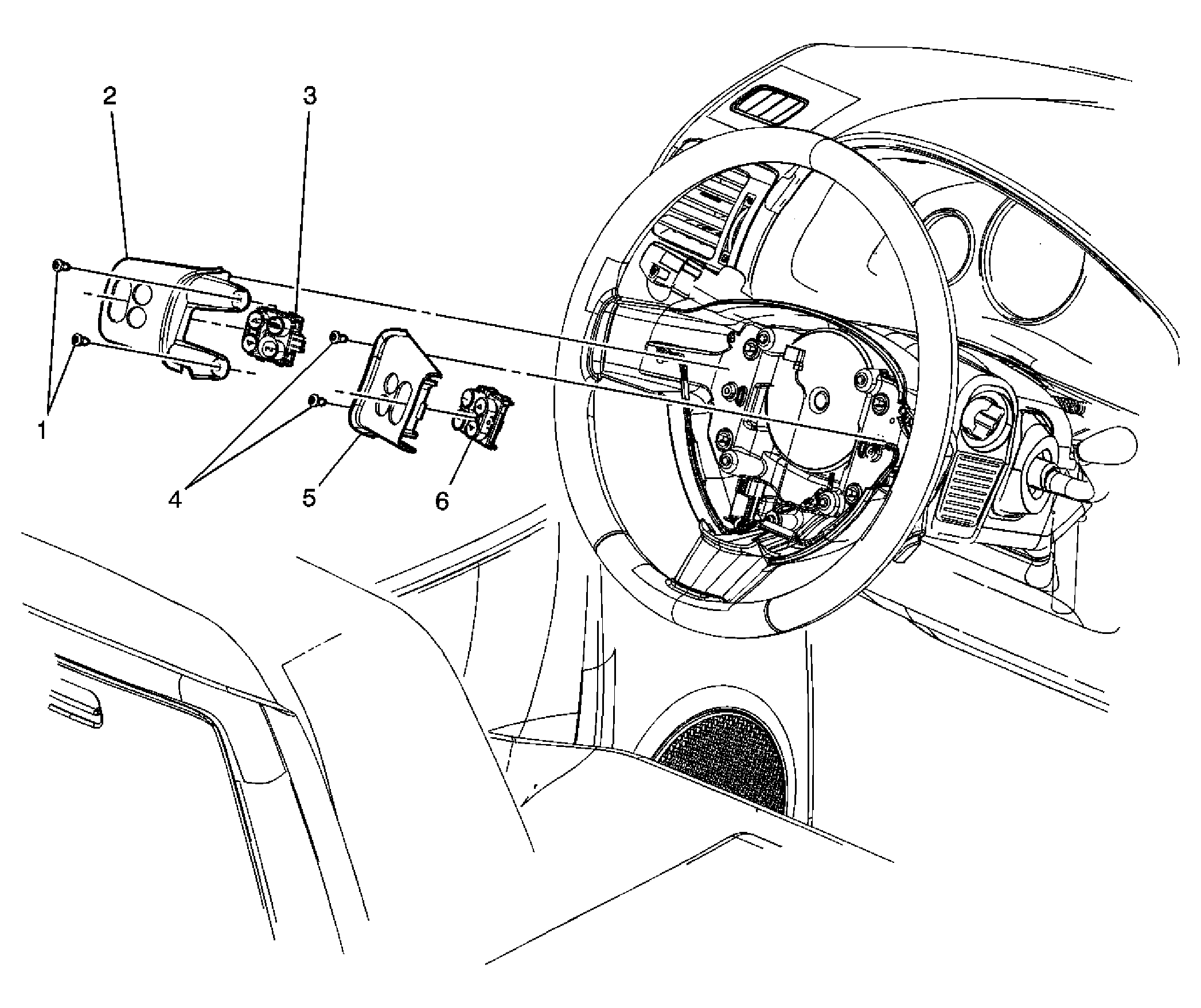

Fig 1: Identifying Steering Wheel Control Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the steering wheel inflatable restraint module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
Radio Control Switch Replacement - Left
1	Screws, Steering Wheel Cover (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Cover, Steering Wheel
3	Switch Assembly, Radio Controls Tip: Disconnect the electrical connector. Use a small flat-bladed tool to remove the switch from the cover.
Radio Control Switch Replacement - Right
4	Screws, Steering Wheel Cover (Qty: 2) Tighten: 2 N.m (18 lb in)
5	Cover, Steering Wheel
6	Switch Assembly, Radio Controls Tip: Disconnect the electrical connector. Use a small flat-bladed tool to remove the switch from the cover.
