Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  3. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
  4. Remove the theft deterrent exciter module from the lock cylinder housing. Refer to Theft Deterrent Exciter Module Replacement in Theft Deterrent.

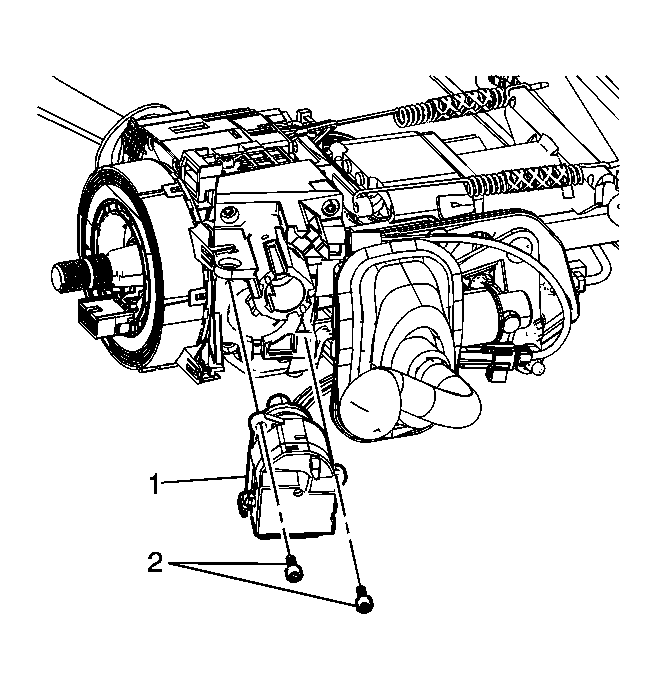

    5. Fig 1: Removing/Installing Ignition Switch
    GM1540116Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws (2) from the ignition switch (1).
  6. Remove the ignition switch (1) from the ignition lock cylinder case.
  7. Disconnect the ignition switch electrical connector.
