Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: By removing the power sliding door (PSD) 15A fuse, the low current logic power for both the LH and RH power sliding door modules (PSDM) will be interrupted and both PSDs will be inoperative.
  1. If equipped with a power sliding door, disable the PSD system by removing the PSD 15A fuse from the instrument panel (I/P) fuse block.
  2. Open the sliding rear door.

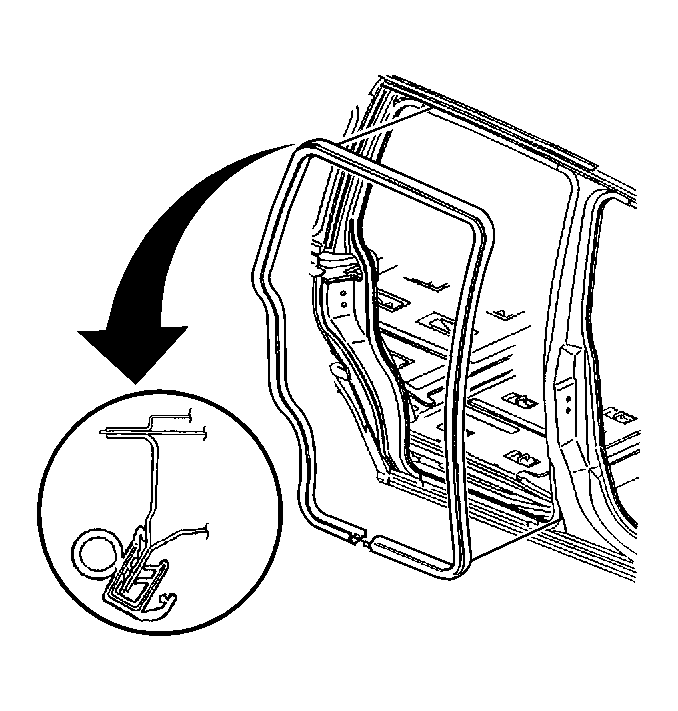

    3. Fig 1: View Of Sliding Door Opening Weatherstrip
    GM320097Courtesy of GENERAL MOTORS CORP.
  3. Remove the sliding door opening weatherstrip from the sliding door pinch-weld flange.
  4. Clean all adhesive from the pinch-weld flange.
