Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully open the sliding rear door.

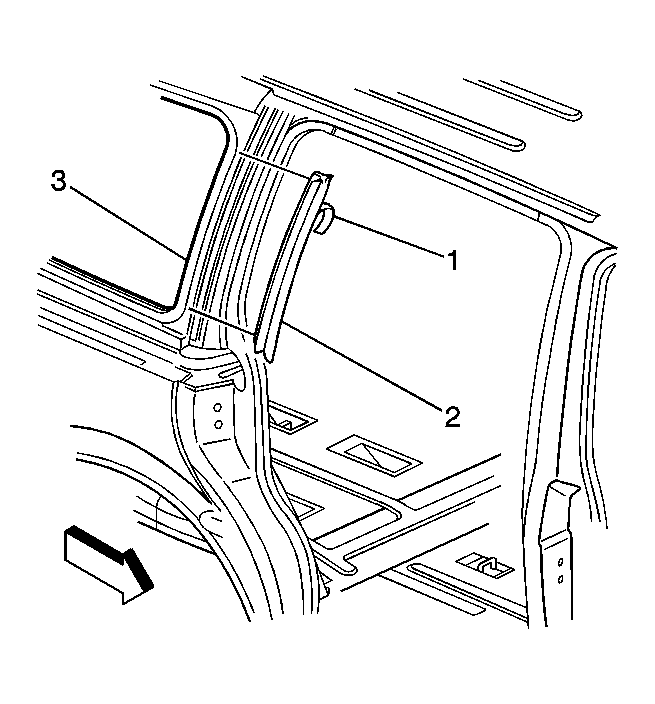

  2. Fig 1: Identifying Auxiliary Weatherstrip
    GM1502970Courtesy of GENERAL MOTORS CORP.
  3. Use a heat gun in order to heat the sliding door auxiliary weatherstrip (2). Keep the heat gun 150 mm (6 in) from the surface. Use a circular motion while applying heat for about 30 seconds.
  4. Use a flat-bladed tool in order to peel the sliding door auxiliary weatherstrip from the panel surface. DO NOT damage the paint.
  5. Use oil-free naphtha or alcohol in order to clean the body panel.
