Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: By removing the power sliding door (PSD) 15A fuse, the low current logic power for both the LH and RH power sliding door modules (PSDM) will be interrupted and both PSDs will be inoperative.
  1. If equipped with a power sliding door, disable the PSD system by removing the PSD 15A fuse from the instrument panel (I/P) fuse block.
  2. Remove the sliding door inner trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the sliding door water deflector. Refer to Water Deflector Replacement - Sliding Door .

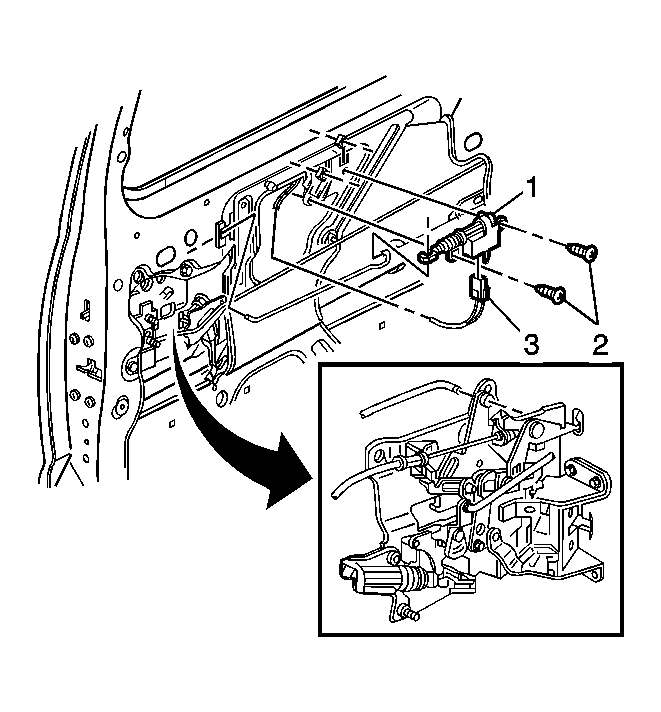

    4. Fig 1: View Of Sliding Door Latch Assembly
    GM320039Courtesy of GENERAL MOTORS CORP.
  4. Remove the power sliding door unlatch release actuator electrical connector (3).
  5. Remove the power sliding door unlatch release actuator screws (2).
  6. Remove the power sliding door unlatch release actuator (1) from the power sliding door.
  7. Unhook the power sliding door latch release actuator rod from the power sliding door latch release actuator.
