Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: By removing the power sliding door (PSD) 15A fuse, the low current logic power for both the LH and RH power sliding door modules (PSDM) will be interrupted and both PSDs will be inoperative.
  1. Disable the PSD system by removing the PSD 15A fuse from the instrument panel (I/P) fuse block.
  2. Remove the right rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter - Right .
  3. Open the sliding door 1/3 of the way.
  4. Support the bottom of the sliding door.
    5. Fig 1: Removing/Installing/Installing Sliding Door Center Bracket Pin
    GM1480614Courtesy of GENERAL MOTORS CORP.
  5. Remove the center roller bracket pin (1). Separate the center roller bracket (4), body side, from the center roller bracket (2), door side.
  6. Position the bottom of the sliding door out at the rear in order to provide access to the center roller bracket (2), body side.
  7. Remove the sliding door center track cover. Refer to Center Track Cover Replacement - Sliding Door .
  8. Position the sliding door center roller bracket, body side, at the front of the center roller track.
  9. Manually pull the forward cable in order to release the cable barrel from the sliding door bracket.
    10. Fig 2: Removing Center Roller Bracket
    GM1563031Courtesy of GENERAL MOTORS CORP.
  10. Lift the center roller bracket, body side, up and out from the front radius of the sliding door center track.
  11. Detach the cable barrel end (1) from the sliding door center roller bracket, body side.

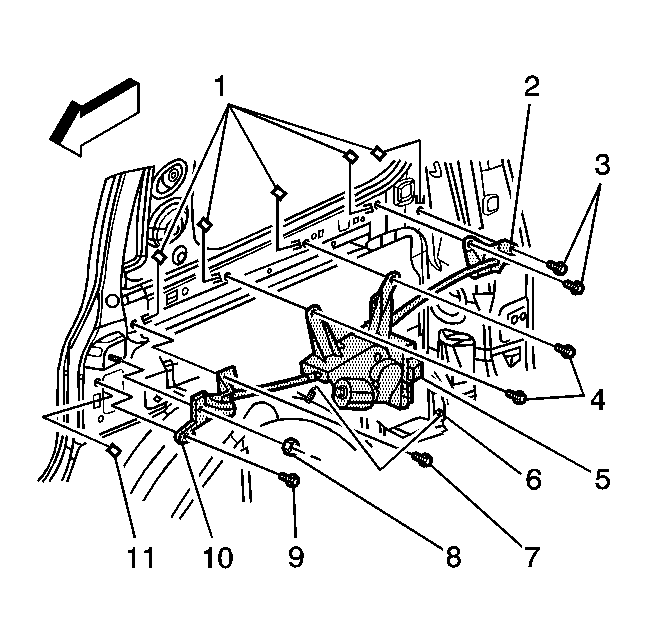

    12. Fig 3: Identifying Motor Clutch Assembly Components
    GM1480630Courtesy of GENERAL MOTORS CORP.
  12. Remove the front pulley bolts (9).
  13. Remove the front pulley nut (8).
  14. Remove the front pulley (10) from the front inner quarter panel.
  15. Remove the rear pulley cover (4) and bolts.
    16. Fig 4: Removing/Installing Rear Pulley
    GM1563032Courtesy of GENERAL MOTORS CORP.
  16. Remove the rear pulley (3).
    17. NOTE: Use care when feeding cables to and from the center track and body to avoid damage to the coated cables and the vehicle's painted surface.
    IMPORTANT: Note the routing of the cables to ensure the new cables are properly seated.
  17. Remove the rear cable from the opening at the rear of the sliding door center track.
  18. Remove the rear pulley from the rear inner quarter panel.
    19. Fig 5: Removing/Installing Power Sliding Door (PSD) Actuator Control Module Connector
    GM1563030Courtesy of GENERAL MOTORS CORP.
  19. Disconnect the wiring harness connectors from the actuator control module (3).
    20. Fig 6: Identifying Motor Clutch Assembly Components
    GM1480630Courtesy of GENERAL MOTORS CORP.
  20. Remove the motor clutch assembly nuts (6).
  21. Remove the motor clutch assembly bolts (4).
  22. Carefully remove the motor clutch assembly from the vehicle.
