Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter - Right .

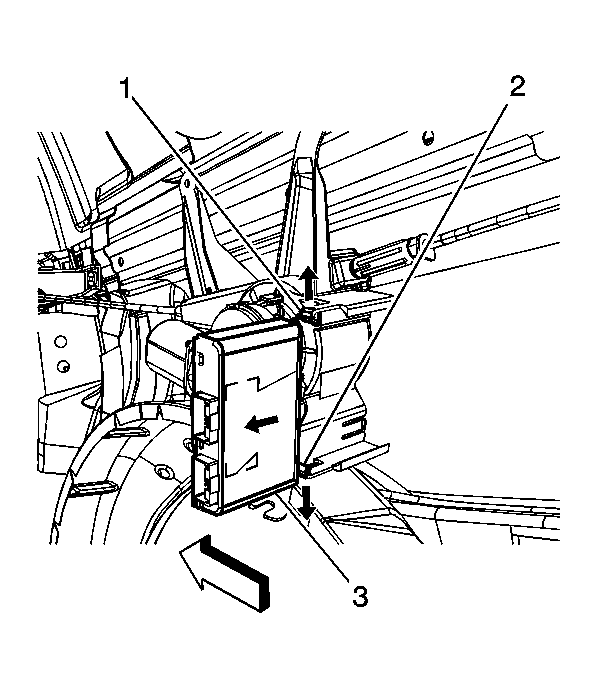

    2. Fig 1: Removing/Installing Power Sliding Door (PSD) Actuator Control Module Connector
    GM1563030Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors from the power sliding door (PSD) actuator control module.
  3. Release the integral clips (1, 2) securing the actuator module (3) at the rear motor bracket.
  4. Pull the PSD actuator control module (3) inboard in order to release the control module from the actuator motor bracket.
