Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

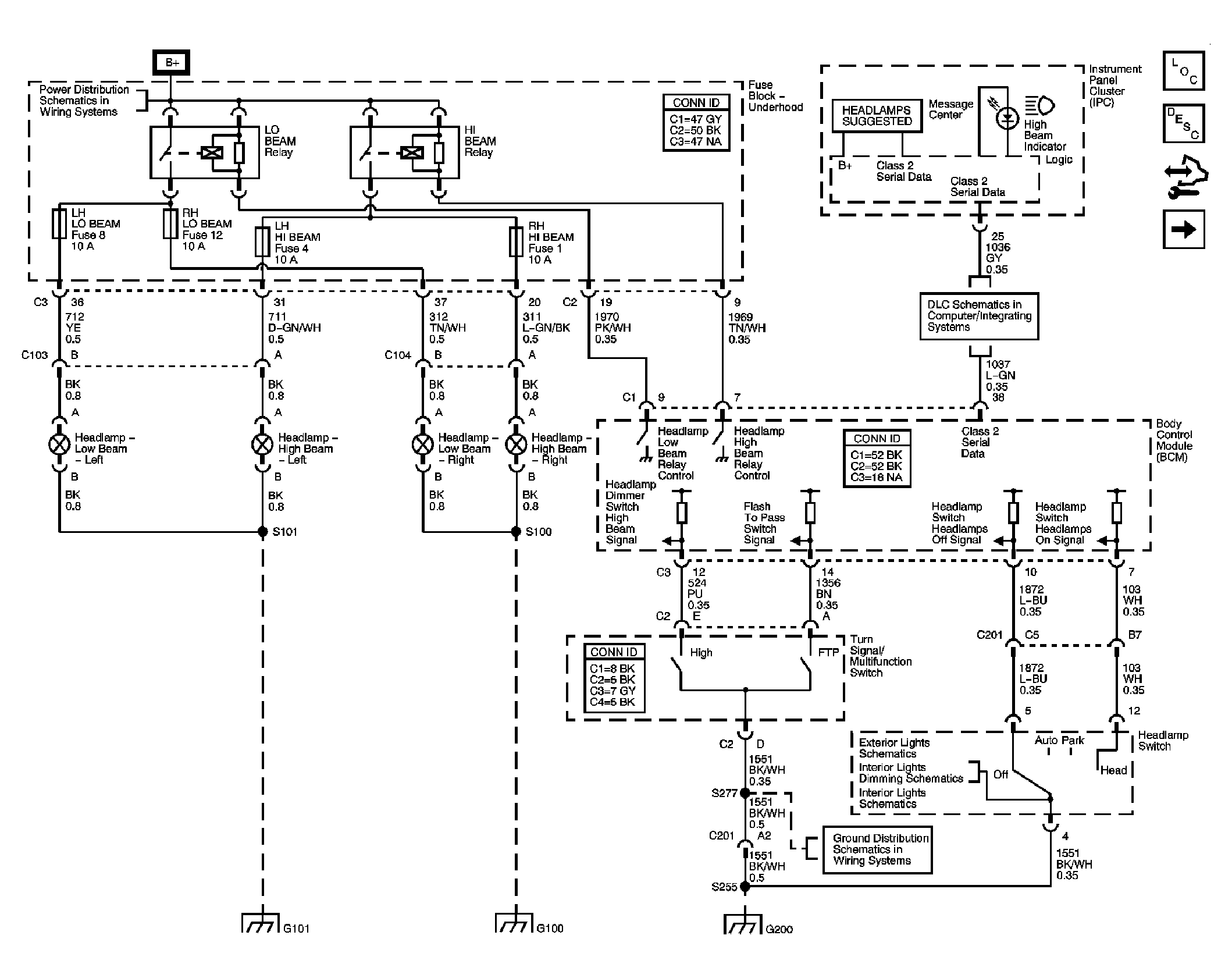

Fig 1: Headlights Schematic
GM1636932Courtesy of GENERAL MOTORS CORP.

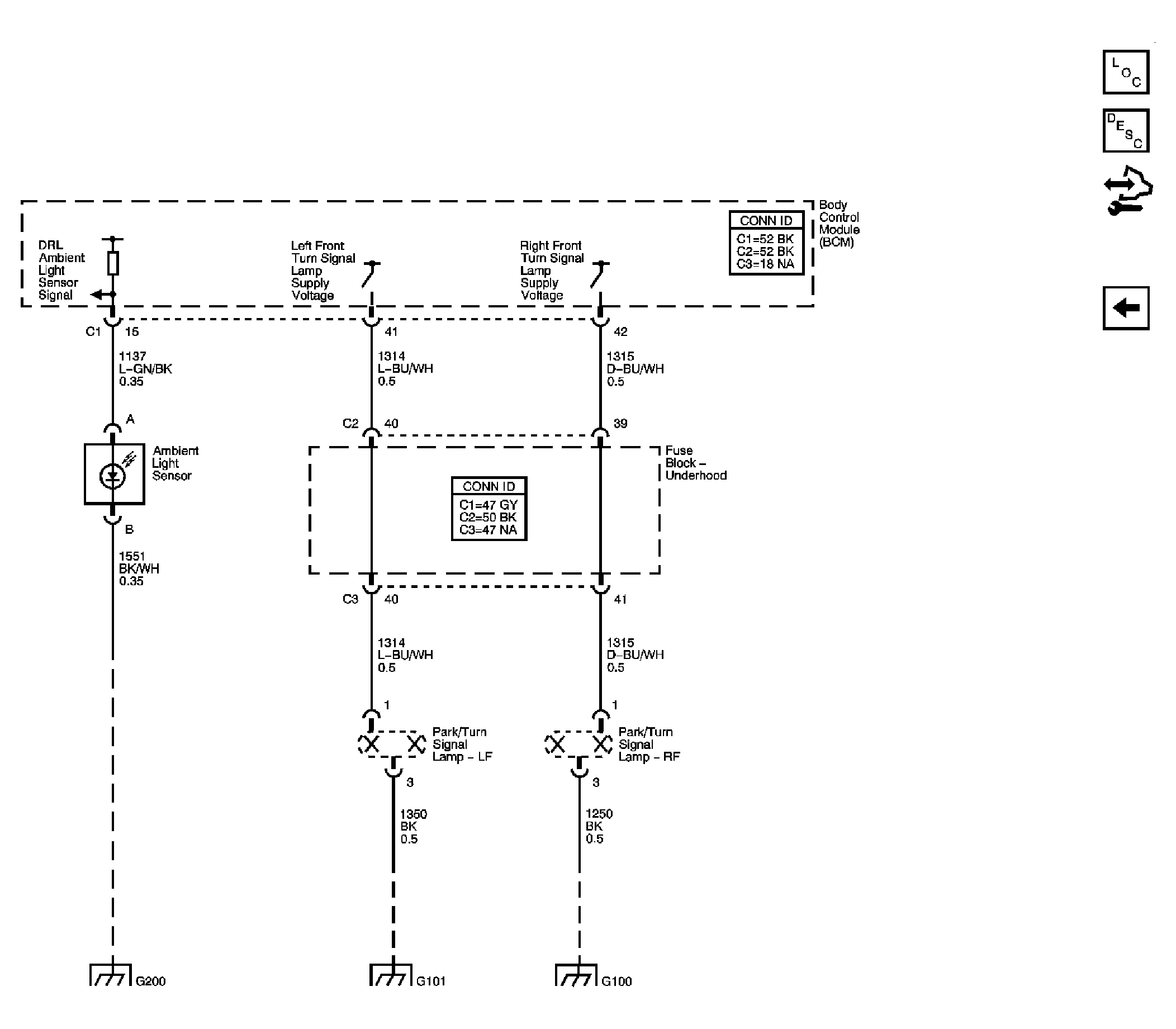

Fig 2: Daytime Running Lights Schematic
GM1636933Courtesy of GENERAL MOTORS CORP.
