Exterior Lights Schematics

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

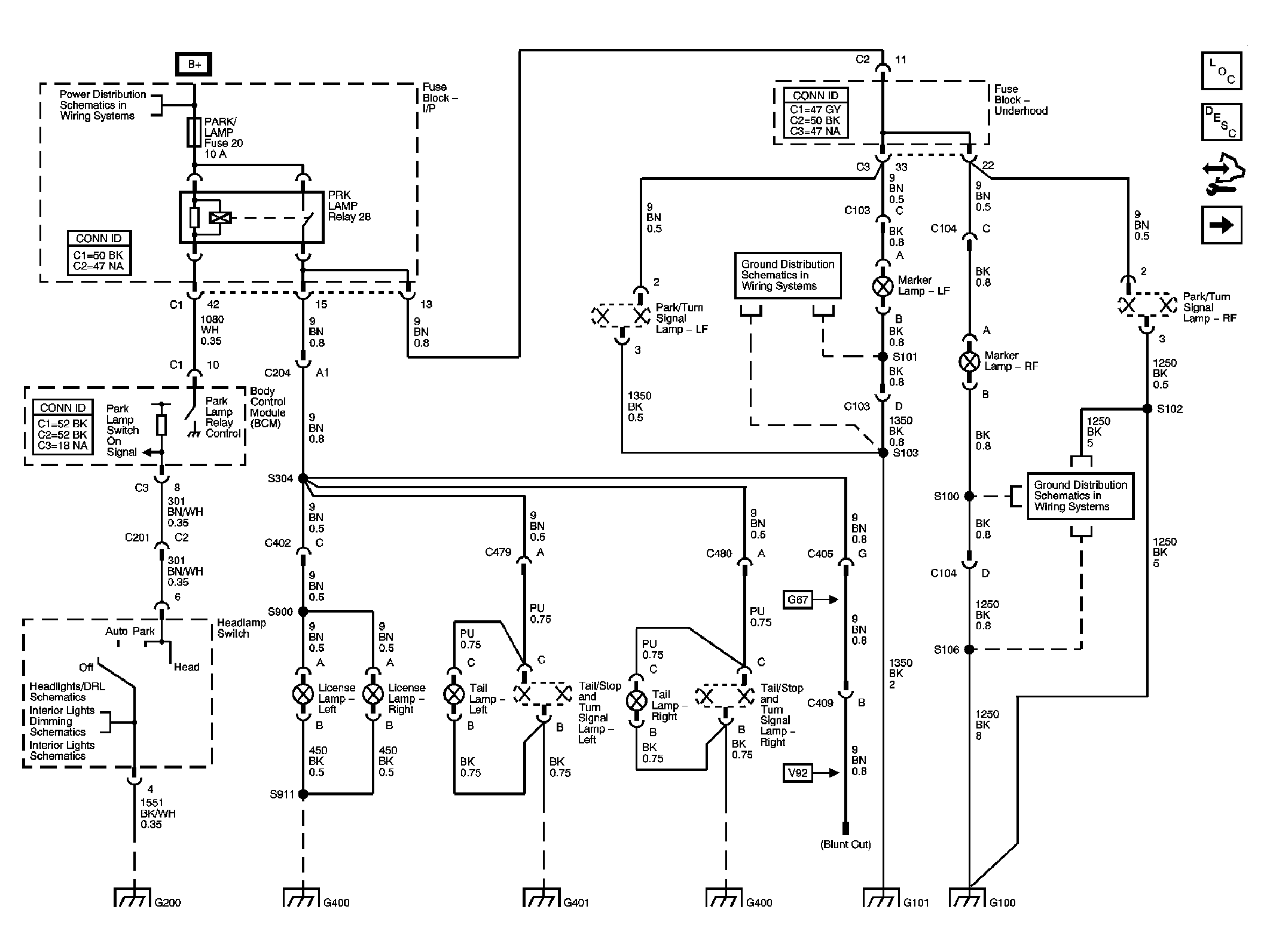

Fig 1: Park, Marker & License Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

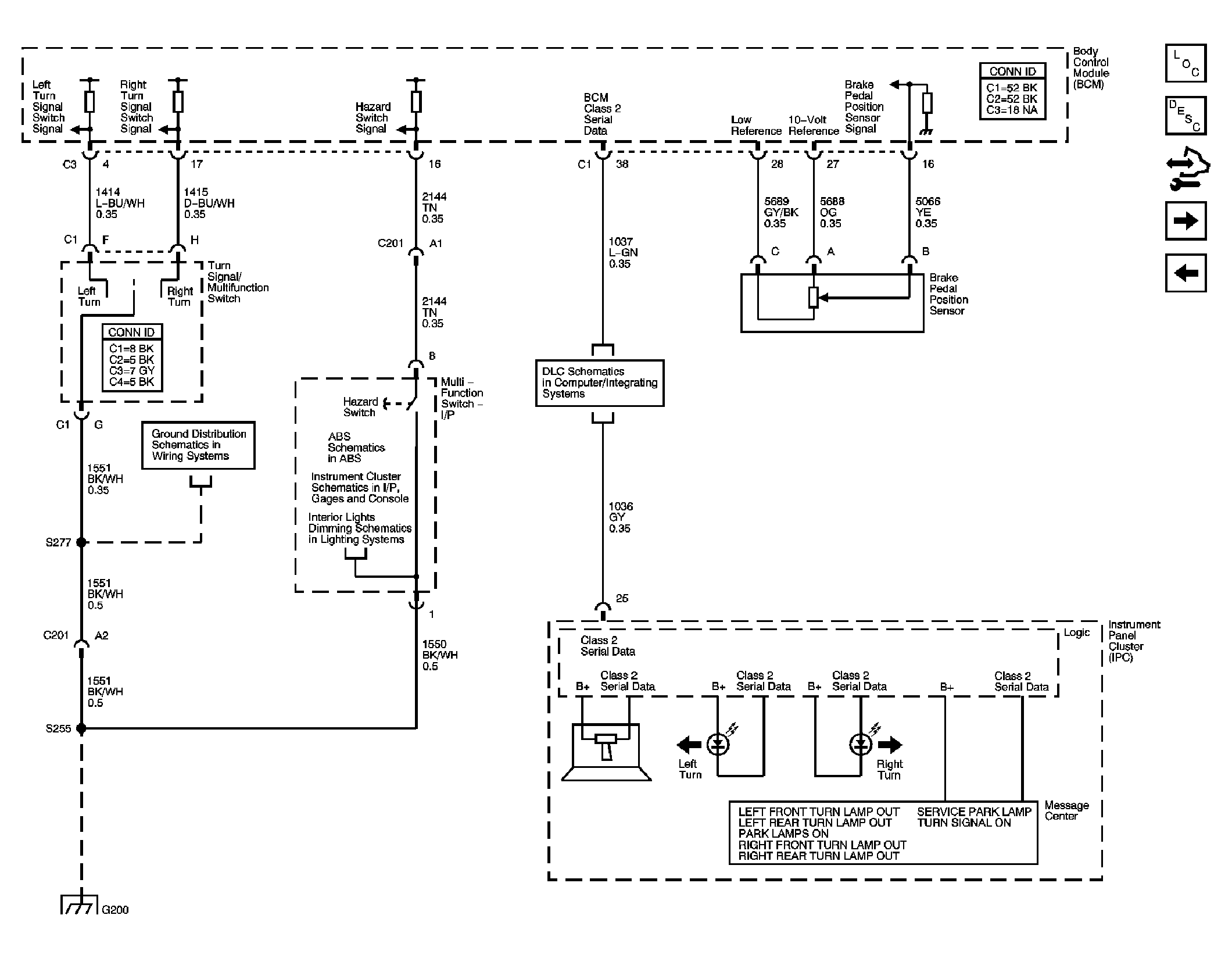

Fig 2: Stop/Turn Signal Lamps Controls & Indicators Schematic

Courtesy of GENERAL MOTORS CORP.

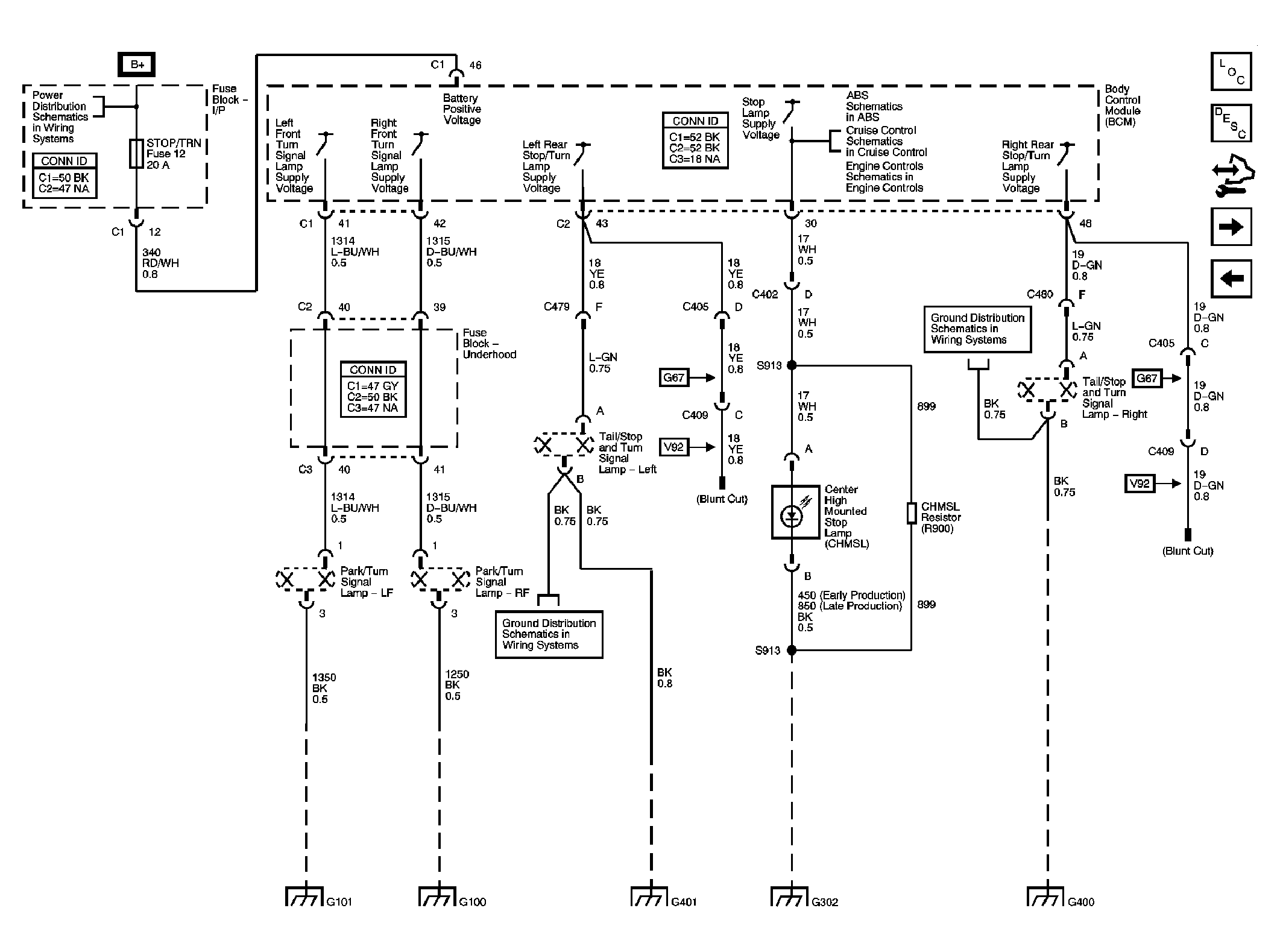

Fig 3: Stop/Turn Signal Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

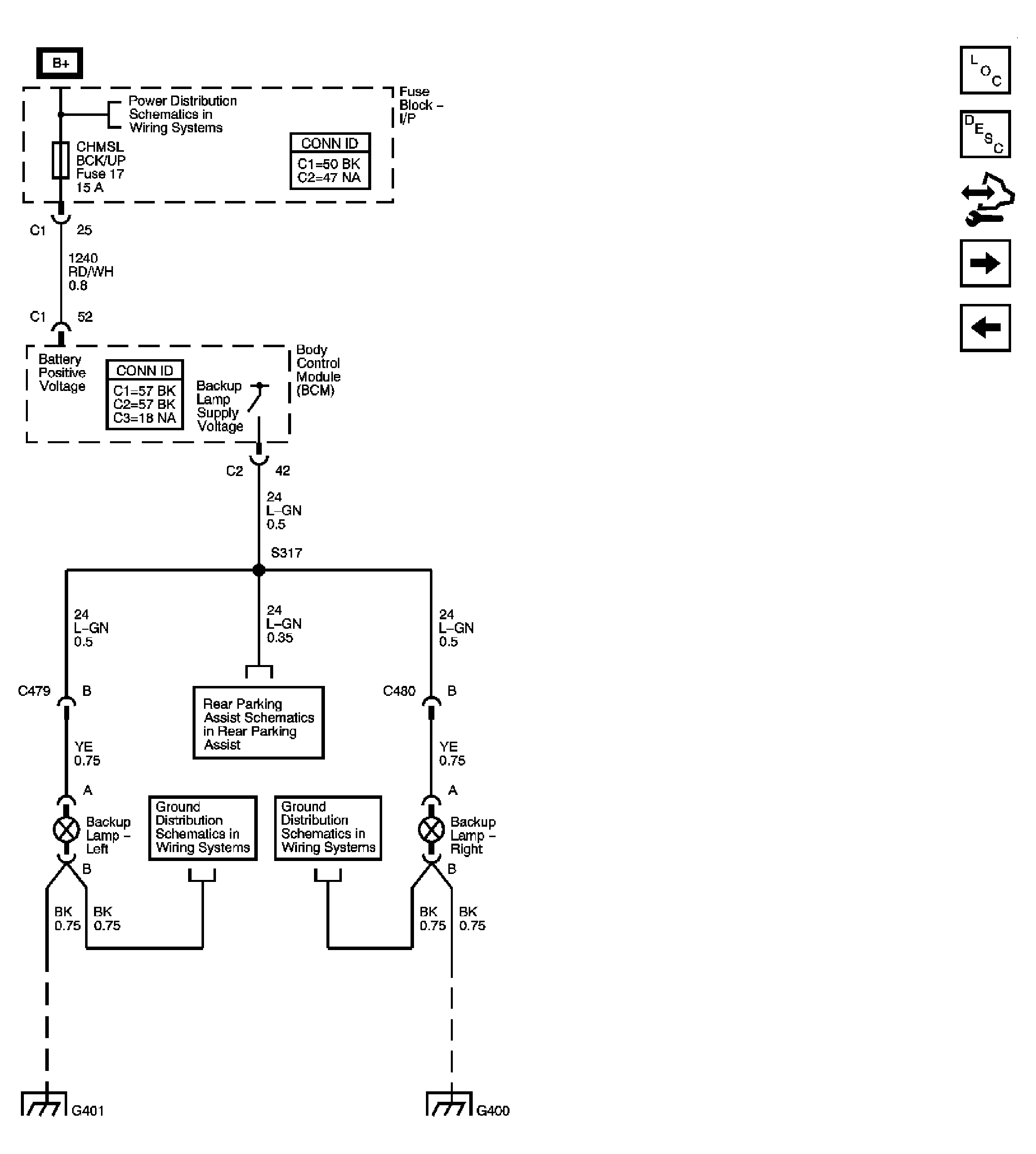

Fig 4: Backup Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Trailer Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
