Daytime Running Lamp, Park and Turn Signal Lamp and Bulb Replacement - Front

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

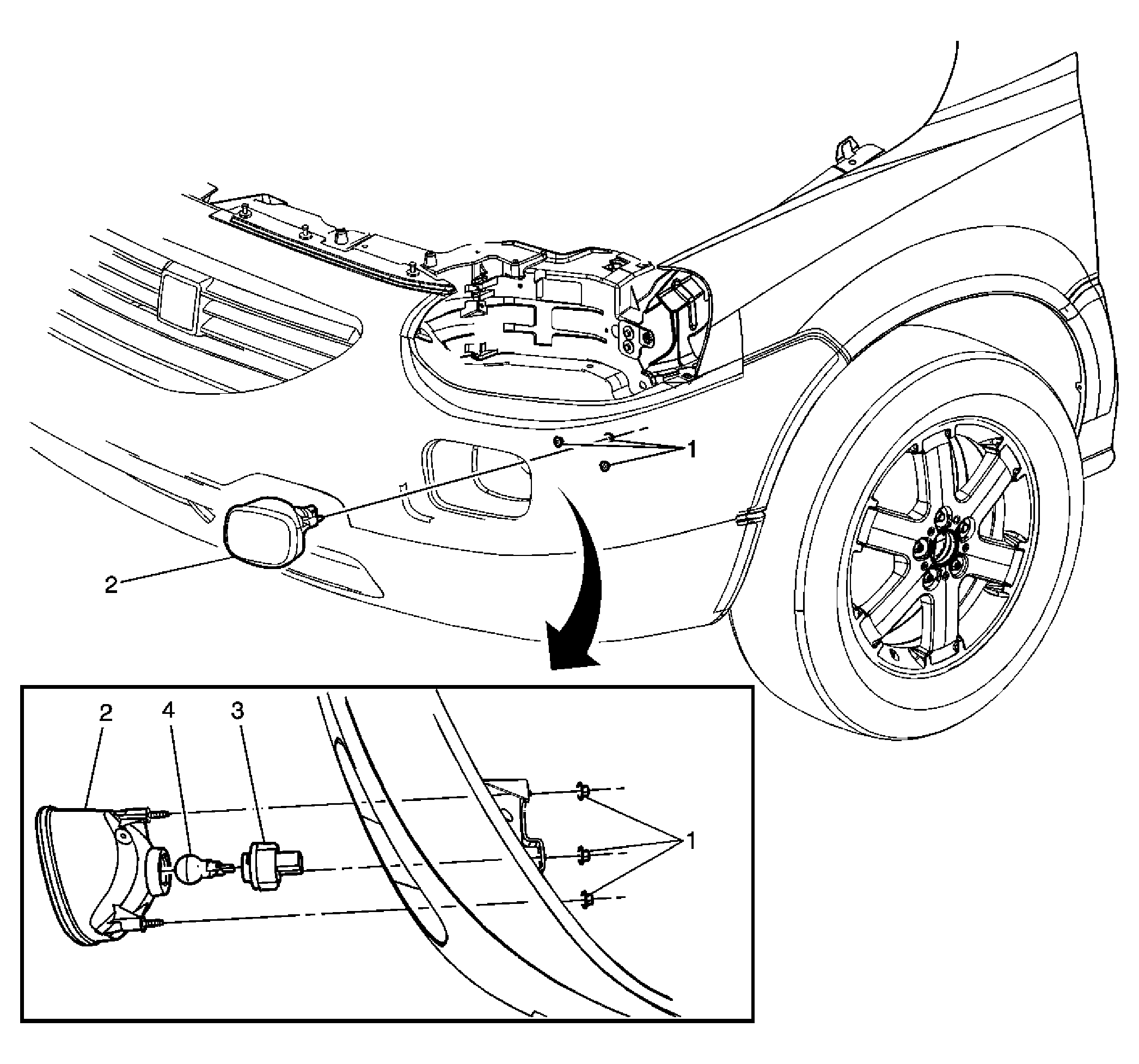

Fig 1: Exploded View Of Daytime Running Lamp, Park and Turn Signal Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove either the LF or RF headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb Replacement .
1	Park and Turn Signal and Daytime Running Lamp Nuts (Qty: 3) Tip: Disconnect the forward lamp harness connector from the lamp socket. Tighten: 6 N.m (53 lb in)
2	Park and Turn Signal and Daytime Running Lamp Tip: Remove the lamp from the exterior side of the front bumper fascia.
3	Park and Turn Signal and Daytime Running Lamp Socket Tip: Twist the lamp socket a quarter turn counterclockwise to remove.
4	Park and Turn Signal and Daytime Running Lamp Bulb Tip: Pull the lamp bulb straight from the socket.
