Power Distribution Schematics

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

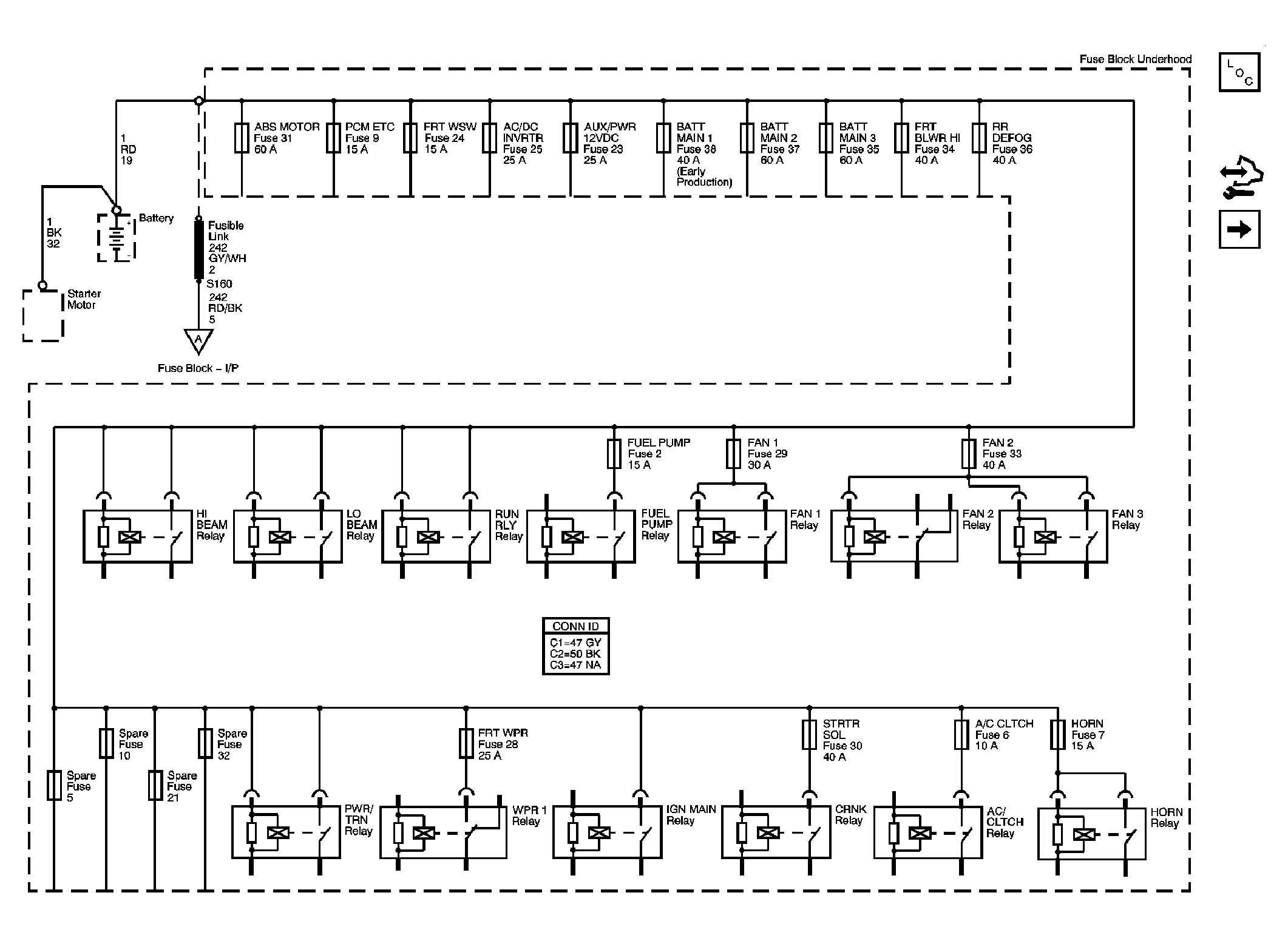

Fig 1: B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

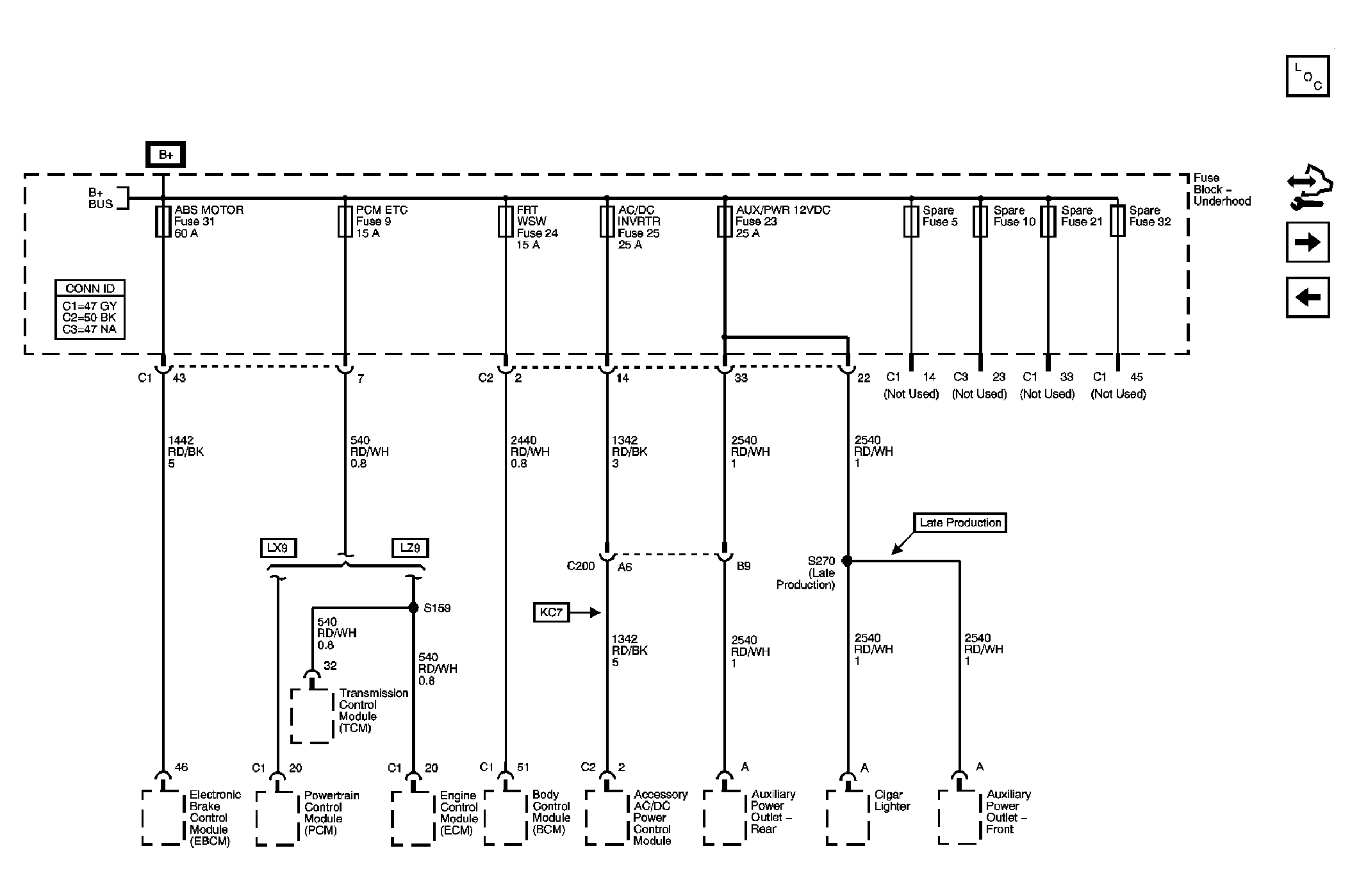

Fig 2: ABS MOTOR, AC/DC INVRTR, AUX/PWR 12VDC, FRT WSW & PCM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

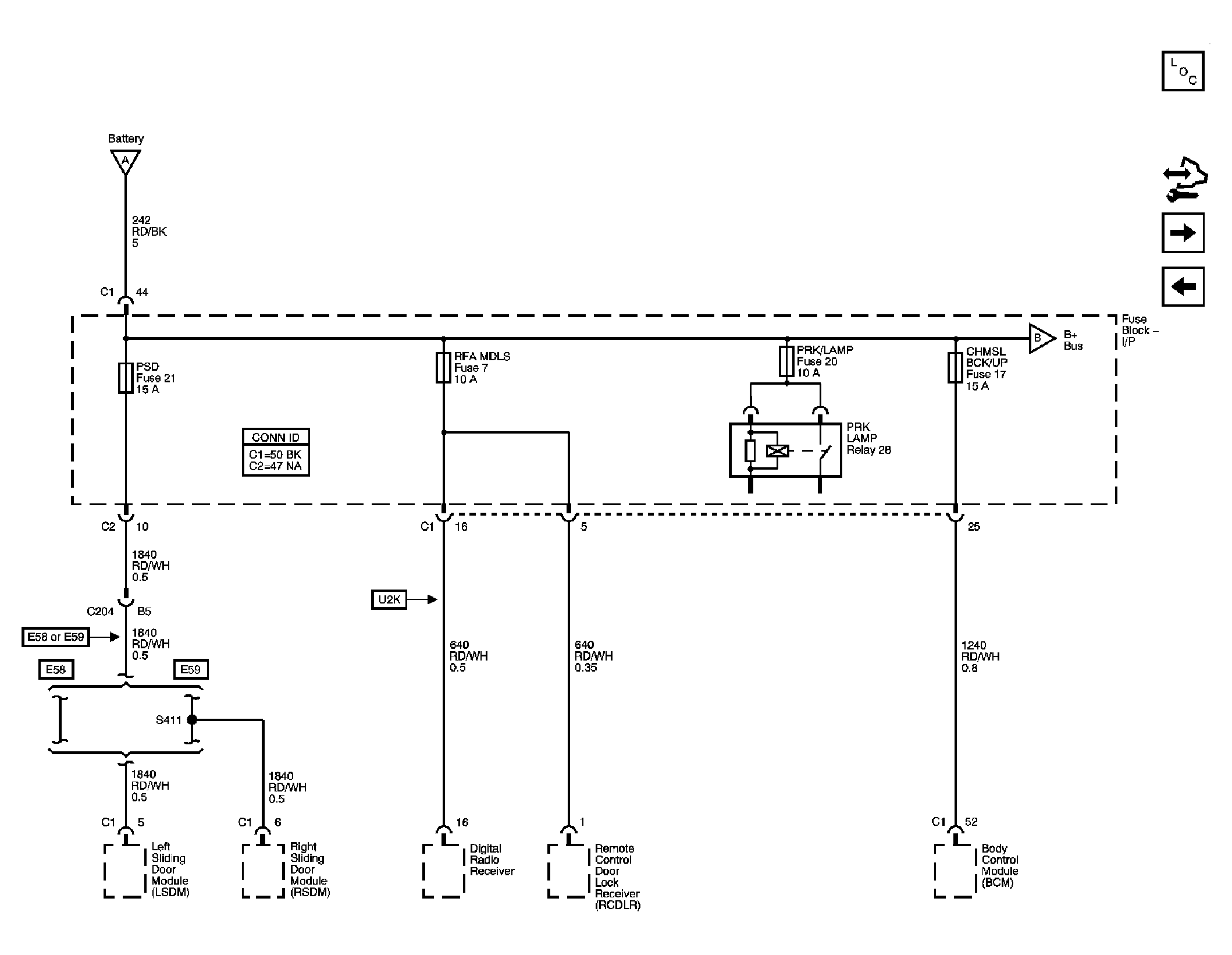

Fig 3: CHMSL BCK/UP, PRK/LAMP, PSD RFA MDLS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

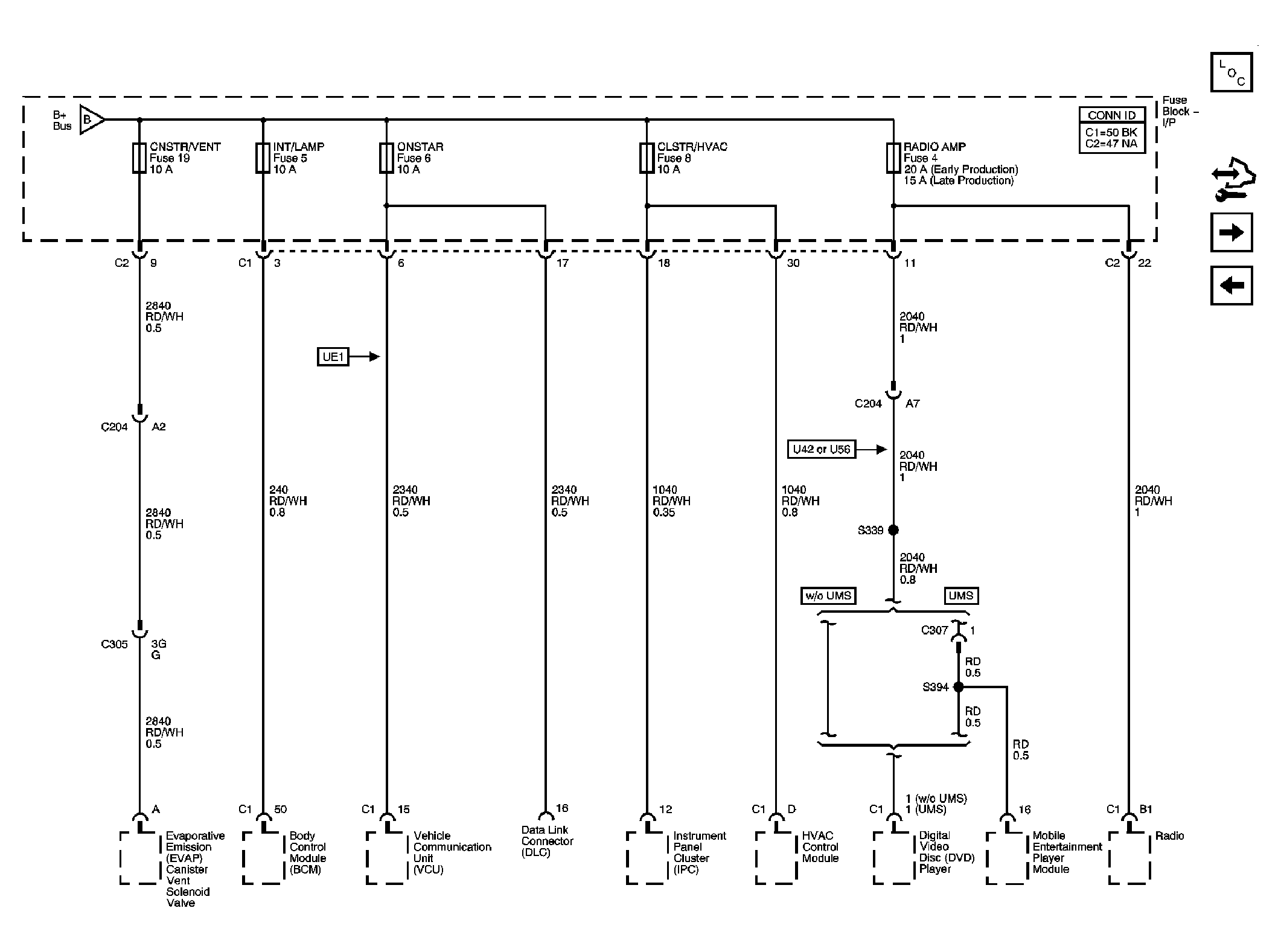

Fig 4: CNSTR/VENT, CLSTR/HVAC, INT/LAMP, ONSTAR & ADIO AMP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

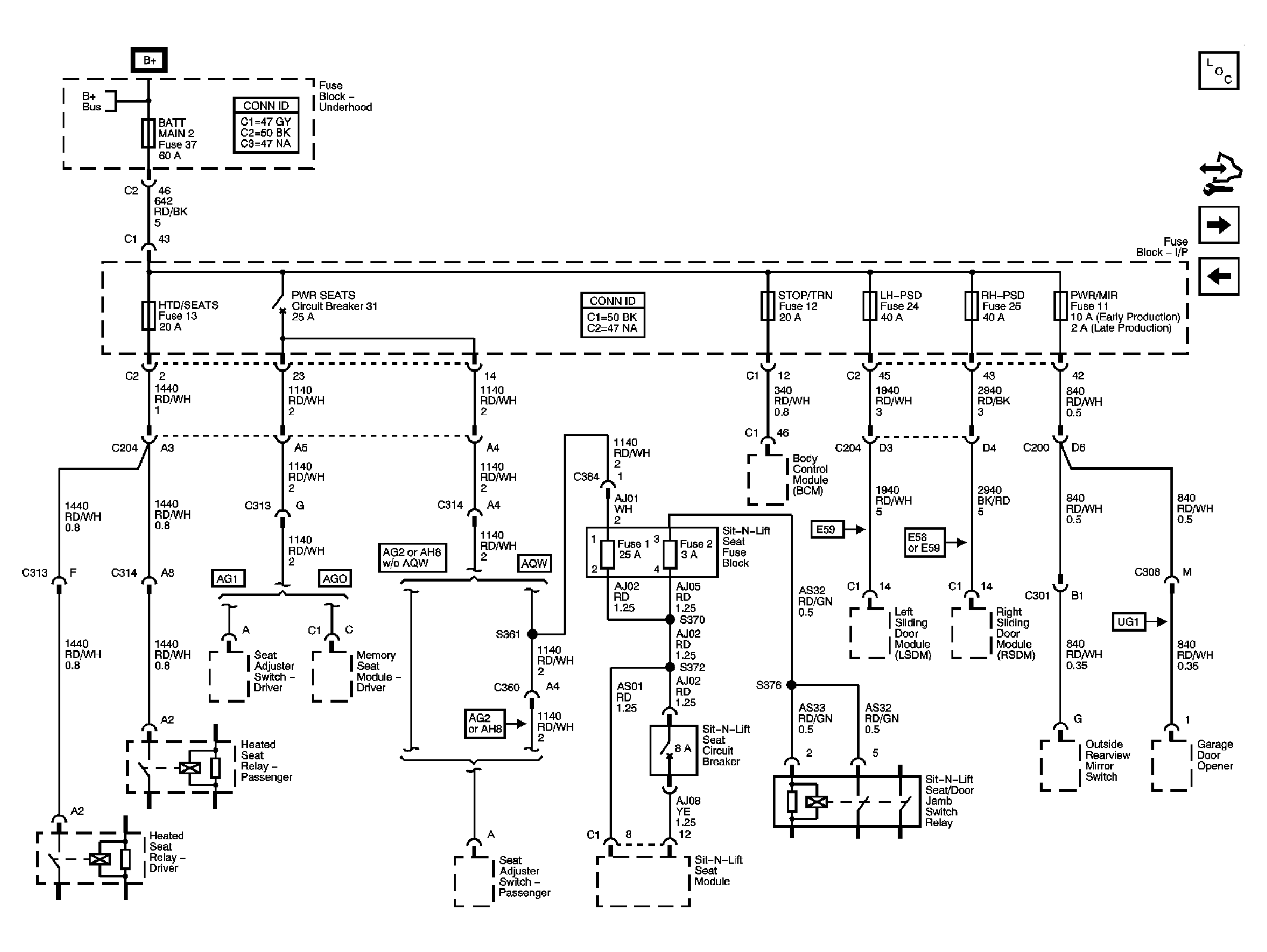

Fig 5: BATT MAIN 2, HTD/SEATS, LH-PSD, PWR/MIR, RH-PSD, Sit-N-Lift Seat and STOP/TRN Fuses, PWR SEATS &Sit-N-Lift Seat Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

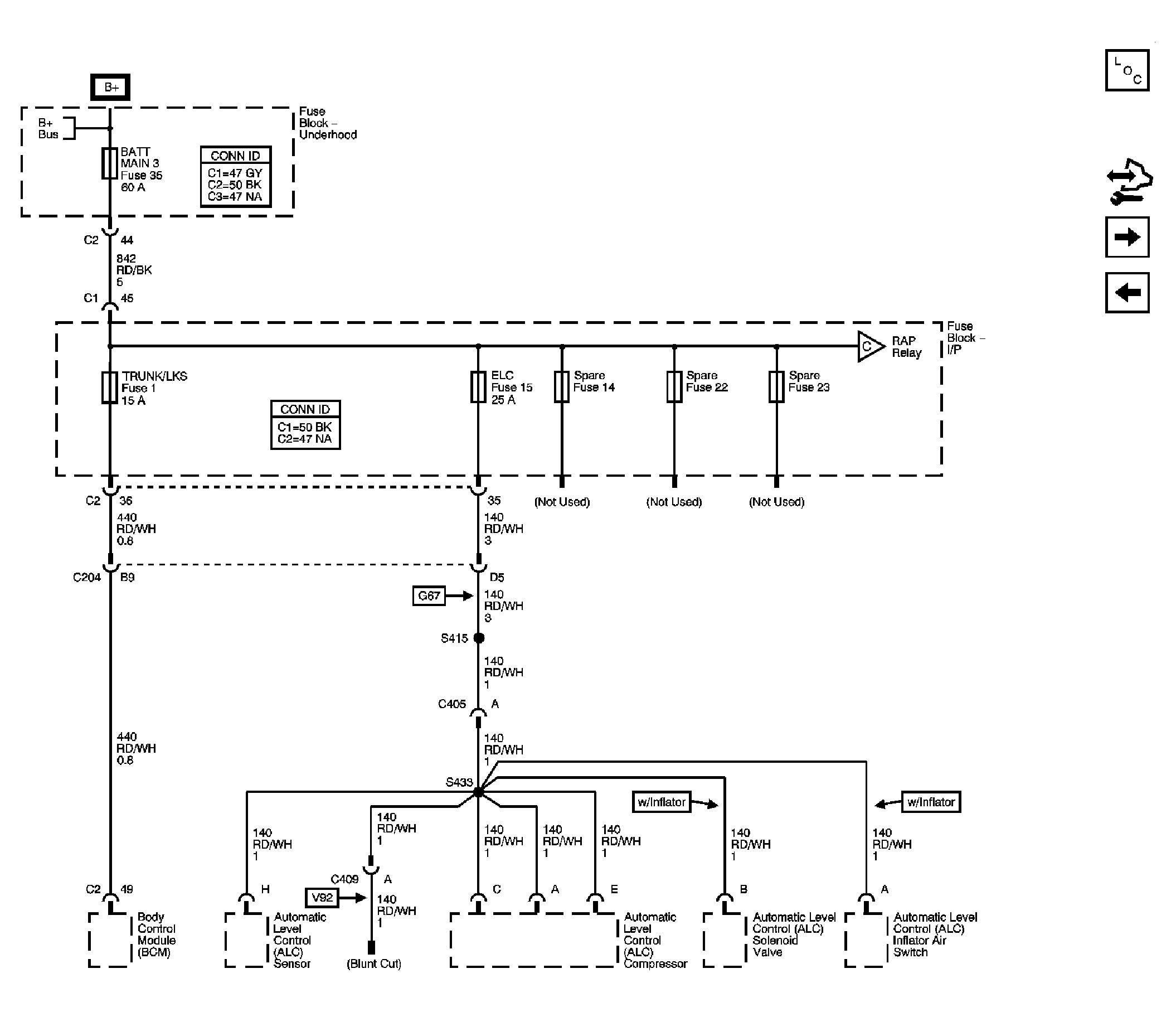

Fig 6: BATT MAIN 3, ELC &TRUNK/LKS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

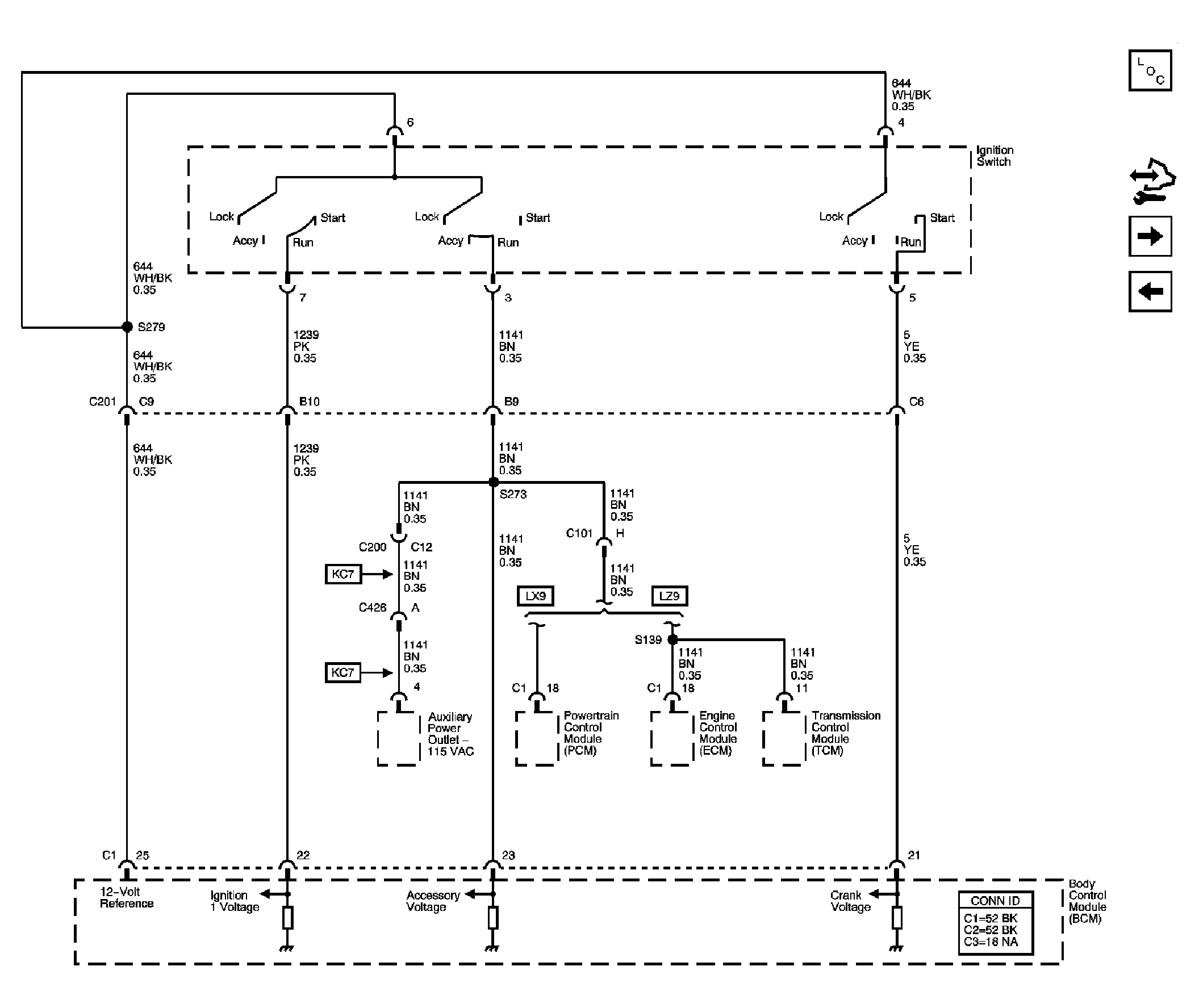

Fig 7: Ignition Switch Schematic

Courtesy of GENERAL MOTORS CORP.

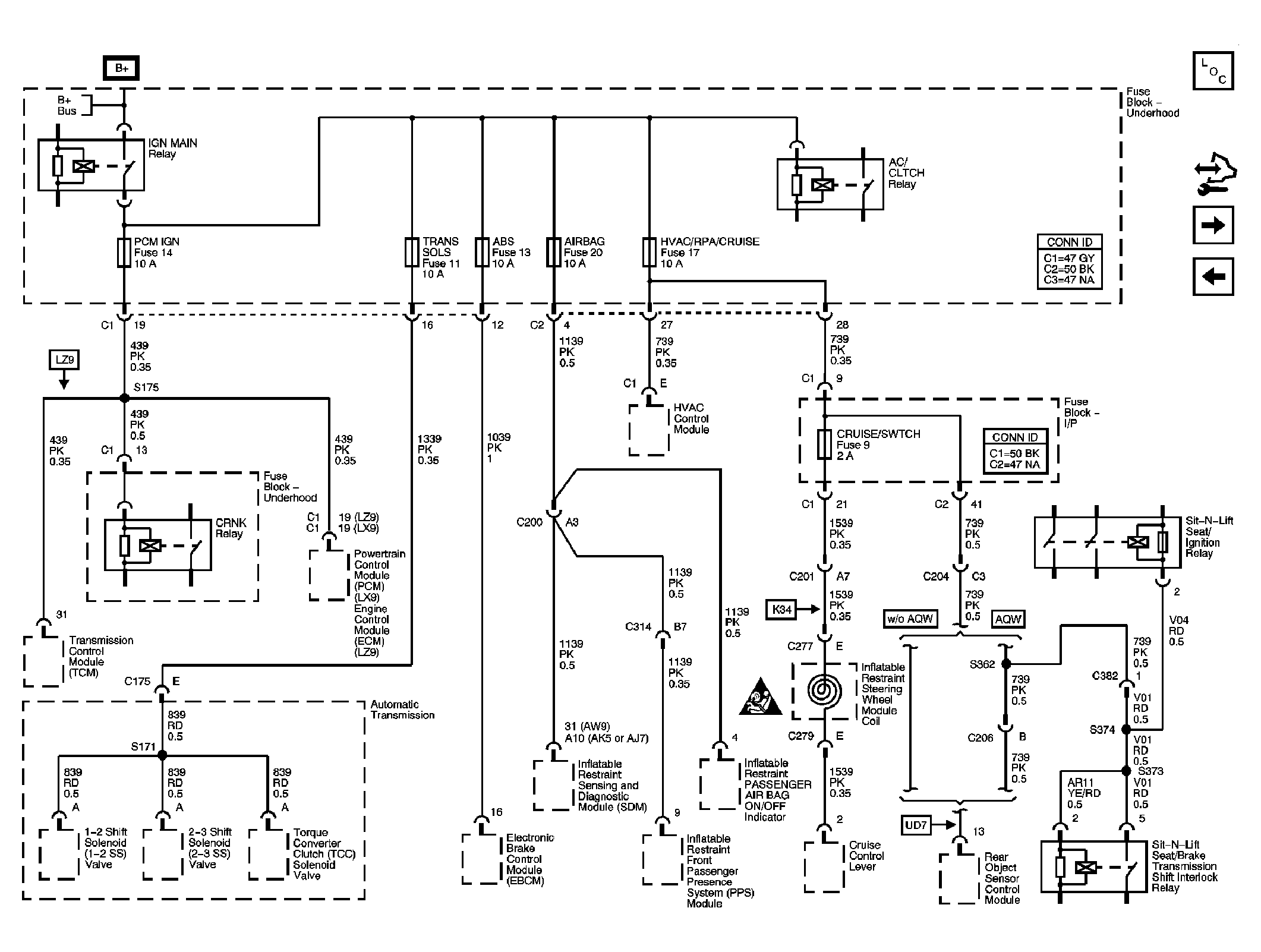

Fig 8: ABS, AIRBAG, CRUISE/SWTCH, HVAC/RPA/CRUISE, PCM IGN &TRANS SOLS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

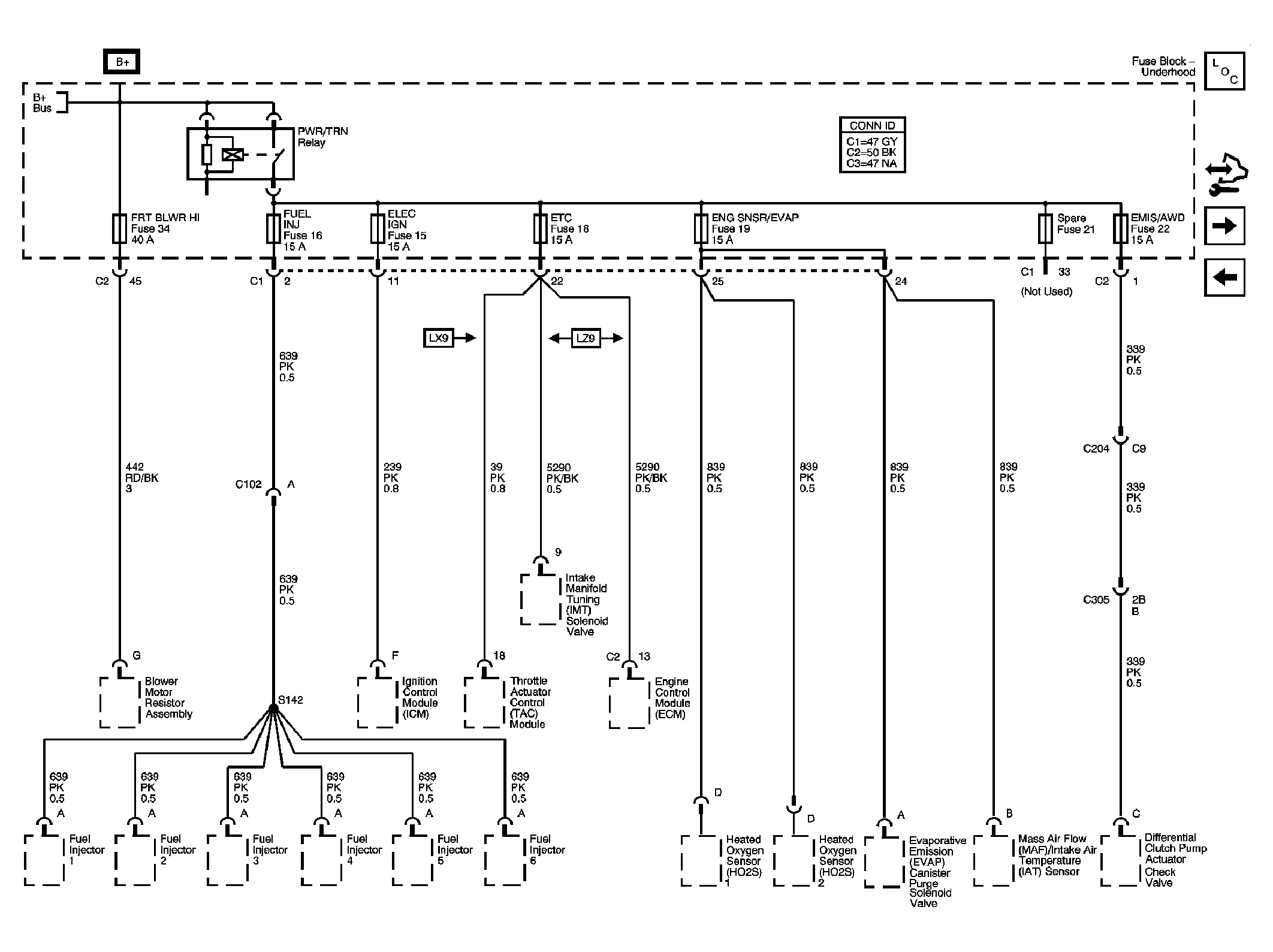

Fig 9: ELEC IGN, EMIS/AWD, ENG SNSR/EVAP, ETC, FRT BLWR HI & FUEL INJ Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

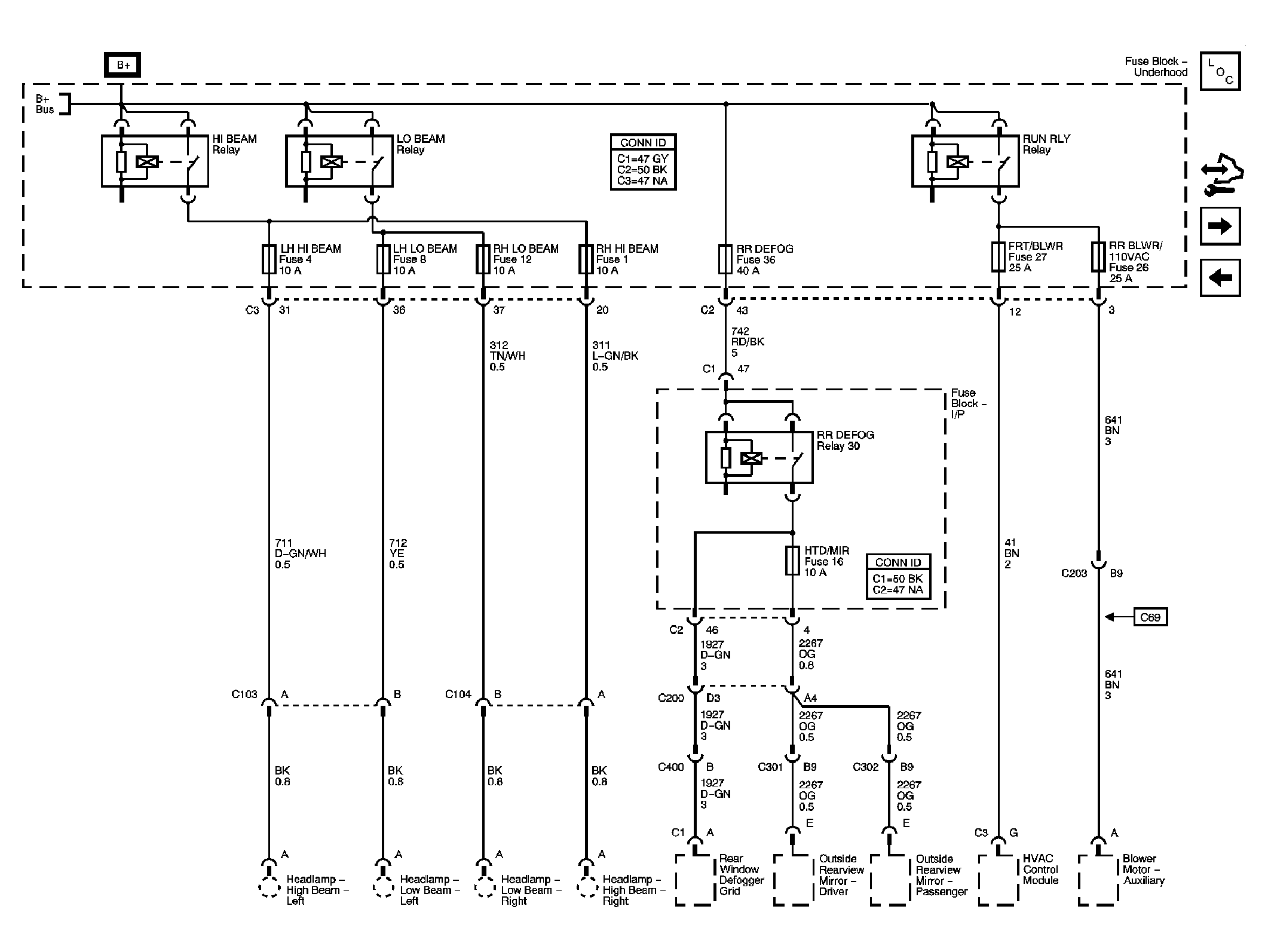

Fig 10: FRT/BLWR, HTD/MIR, LH HI BEAM, LH LO BEAM, RH LO BEAM, RH HI BEAM, RR BLWR/110VAC & RR DEFOG Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

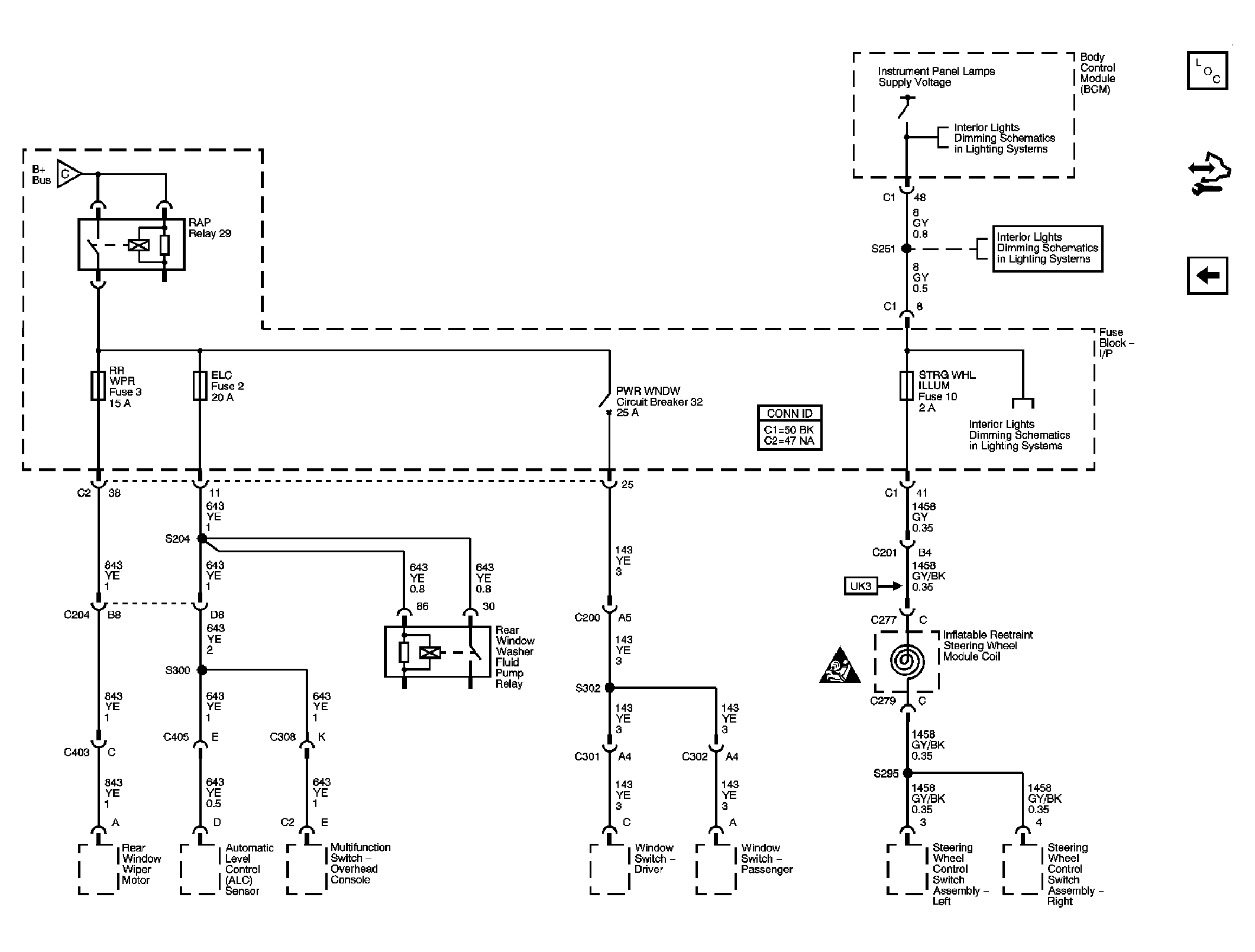

Fig 11: ELC, RR WPR & STRG WHL ILLUM Fuses, PWR WNDW Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.
