Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the harness connectors are securely locked to the retention tabs (3).
  2. Position the connector (1) to the I/P wiring harness junction block.

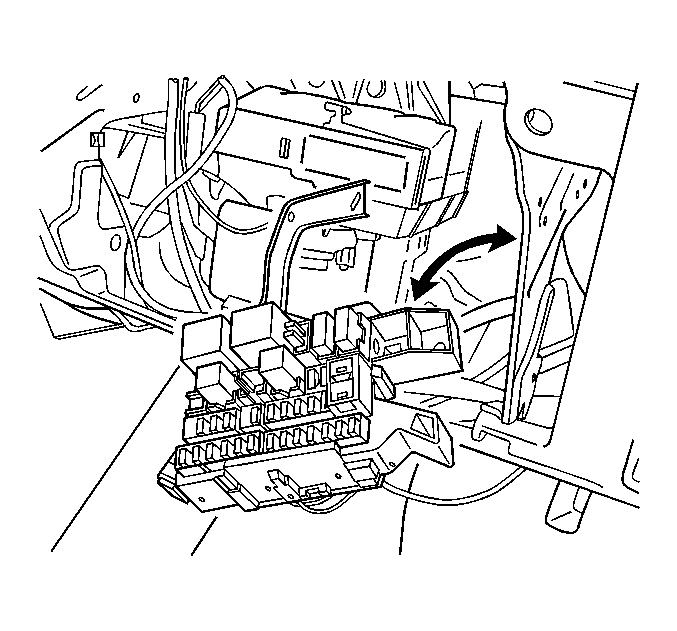

    3. Fig 1: Removing/Installing Connector Base
    GM1536802Courtesy of GENERAL MOTORS CORP.
  3. Once the connector is aligned, carefully squeeze the connector to the base until both outer locking tabs are secure.
  4. Repeat step 3 for the additional connectors.
    5. Fig 2: Removing/Installing Wiring Junction Block Assembly Bracket
    GM1536801Courtesy of GENERAL MOTORS CORP.
  5. Position the I/P wiring harness junction block bracket (2) back to the I/P carrier bracket studs.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the nuts (1).

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

    7. Fig 3: Removing/Installing negative battery cable
    GM1536799Courtesy of GENERAL MOTORS CORP.
  7. Secure the 2 screws (1) at the I/P endcap.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  8. Install the I/P compartment. Refer to Compartment Assembly, Door, Striker, Latch Replacement - Instrument Panel in Instrument Panel, Gages and Console.
  9. Install the I/P right side end cap cover. Refer to Upper Trim Pad, Outer Trim Cover, Fuse Block Access Cover Replacement - Instrument Panel in Instrument Panel, Gages and Console.
  10. Connect the negative battery cable. Refer to BATTERY DISCONNECT CAUTION .
  11. Perform the power sliding door re-initialization procedure. Refer to Acutator Control Module - Power Sliding Door (PSD) Programming and Setup .
