Air Outlet Replacement - Side Window (Right)
WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Air Outlet Replacement - Side Window (Right)

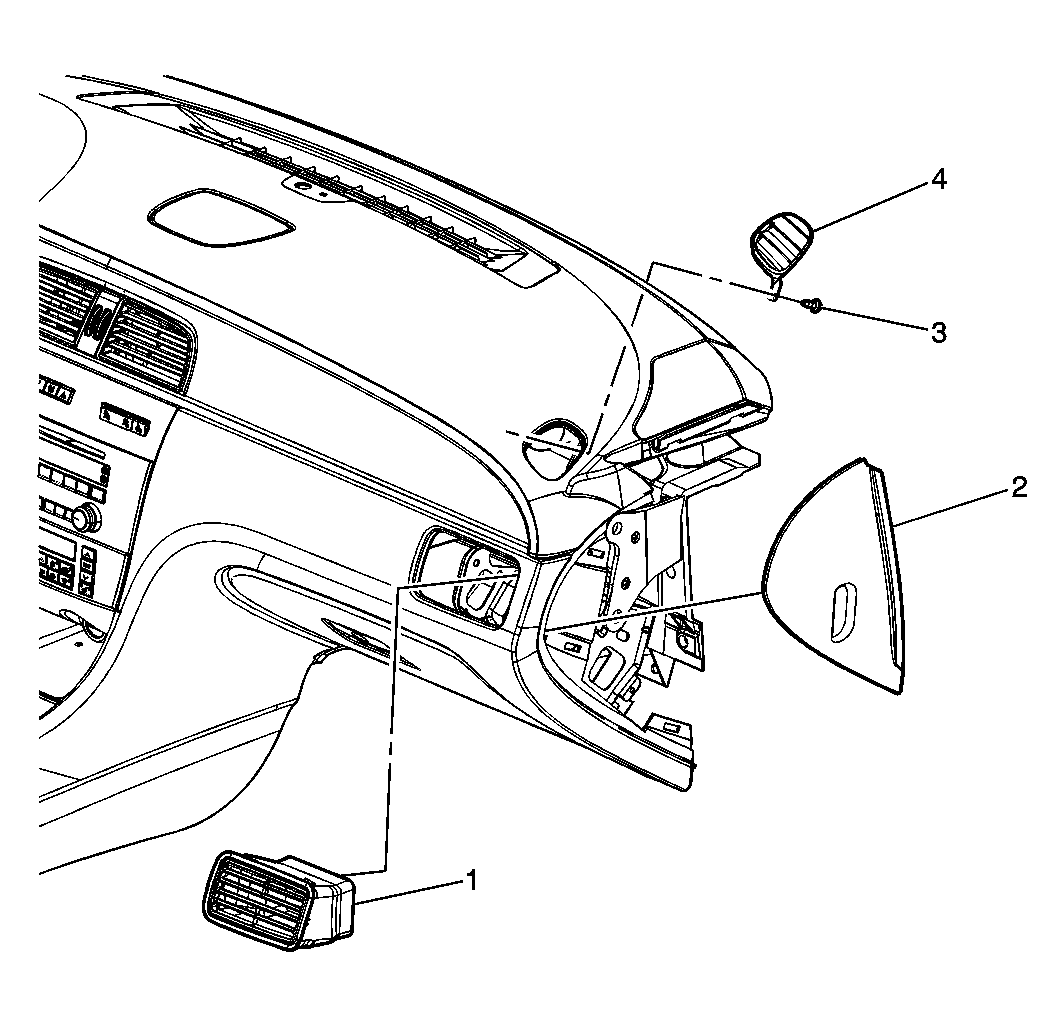

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. |
|
| 1 | Outlet, Air Instrument Panel - Right |
| 2 | Panel, Fuse Block Access |
| 3 | Screw, Air Outlet Side Window Tip: Use a flexible driver with a Phillips bit to remove the side window defog outlet grille screw. Tighten: 2 N.m (18 lb in) |
| 4 | Outlet, Air Side Window - Right |
