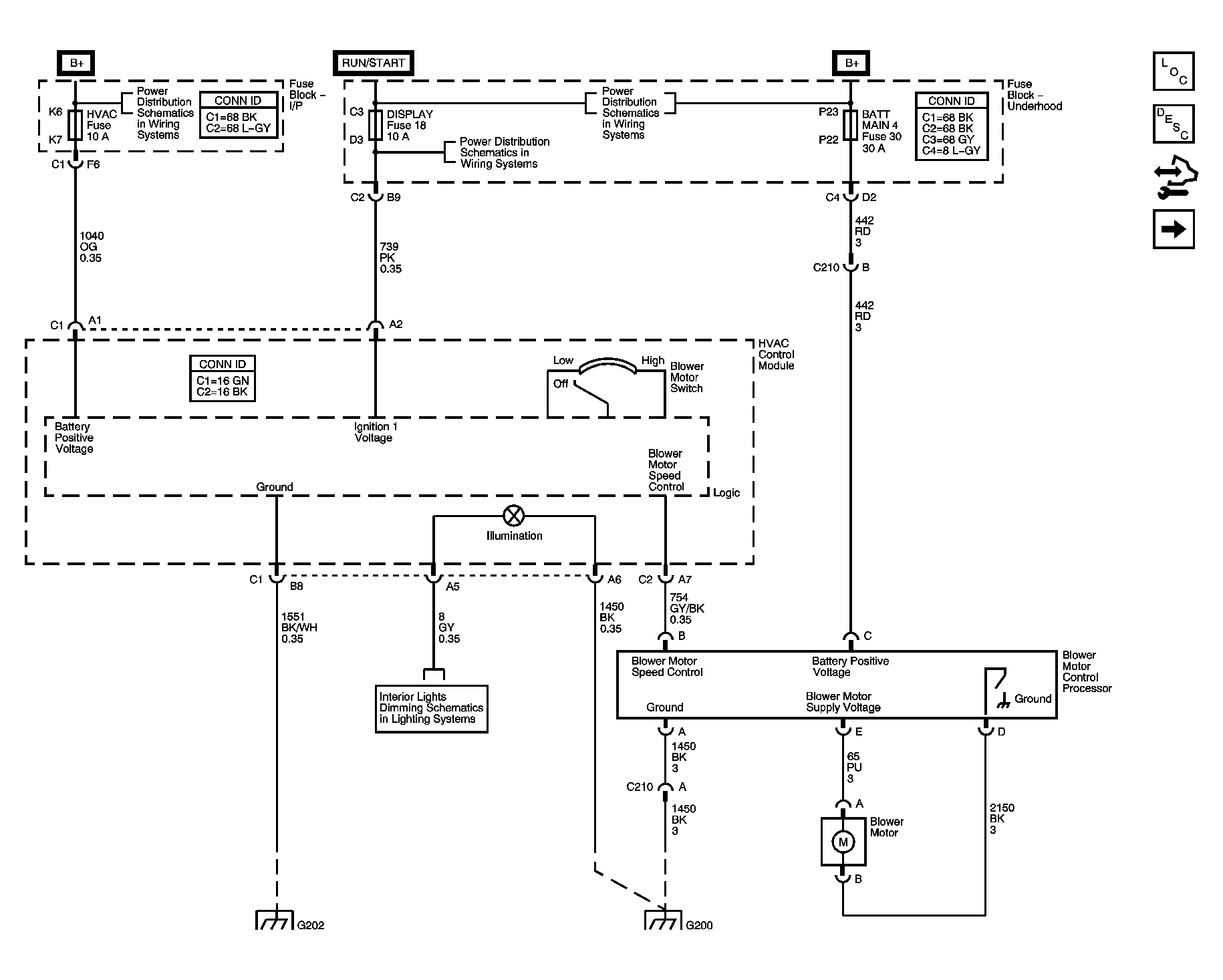

Fig 1: Power, Ground & Blower Controls Schematic
Courtesy of GENERAL MOTORS CORP.

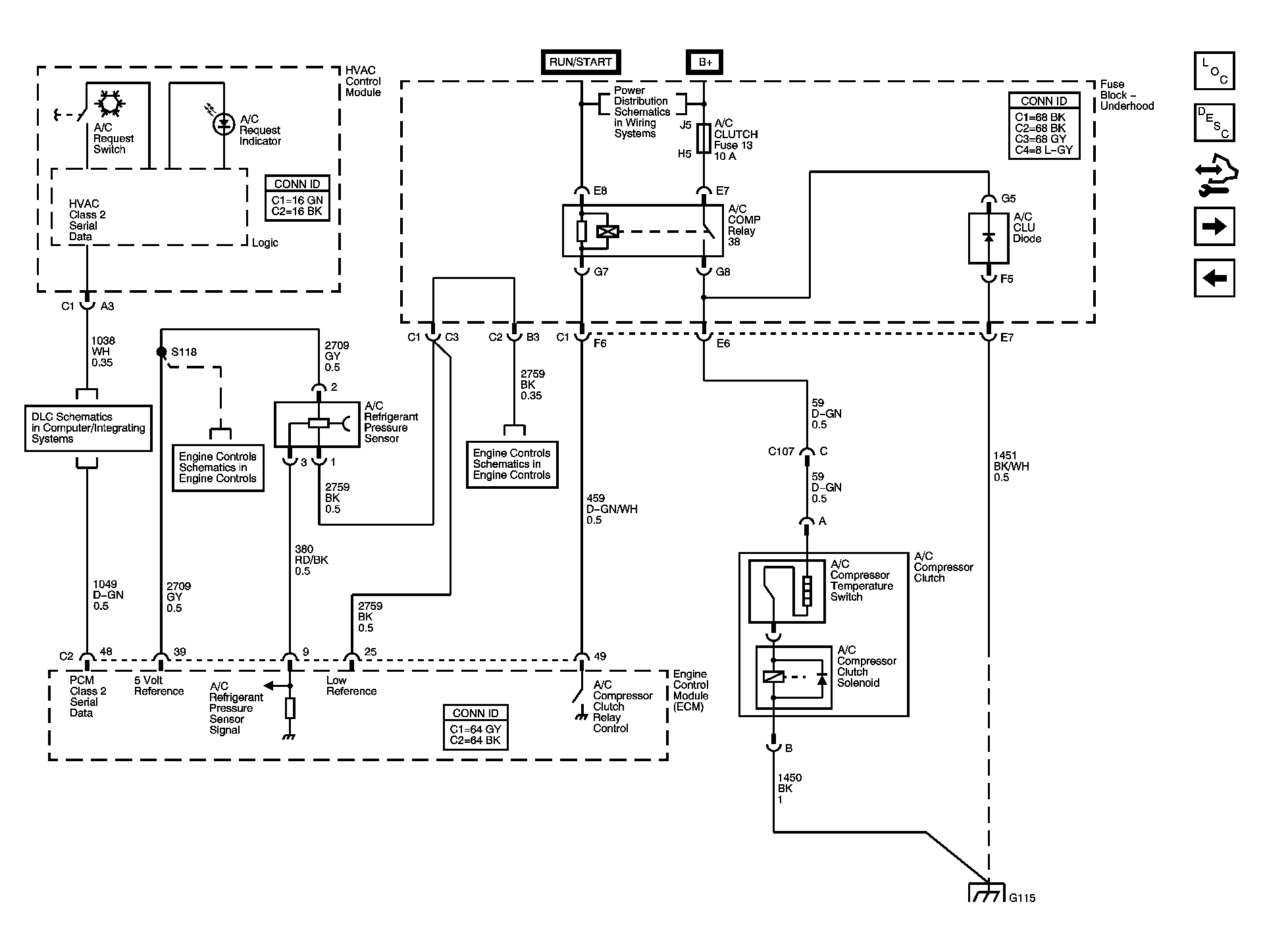

Fig 2: Compressor Controls & Serial Data Schematic (L26)
Courtesy of GENERAL MOTORS CORP.

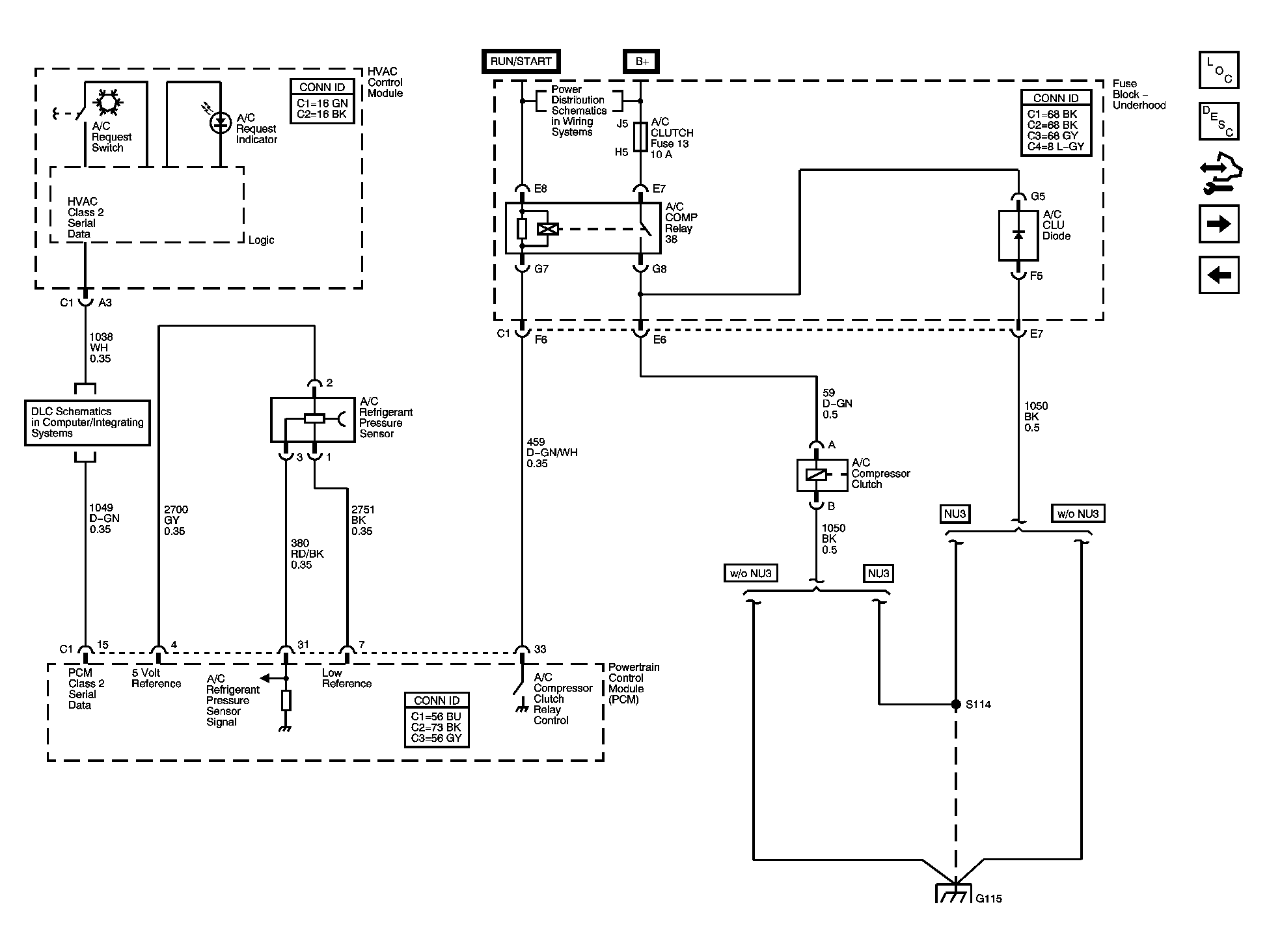

Fig 3: Compressor Controls & Serial Data Schematic (LY7)
Courtesy of GENERAL MOTORS CORP.

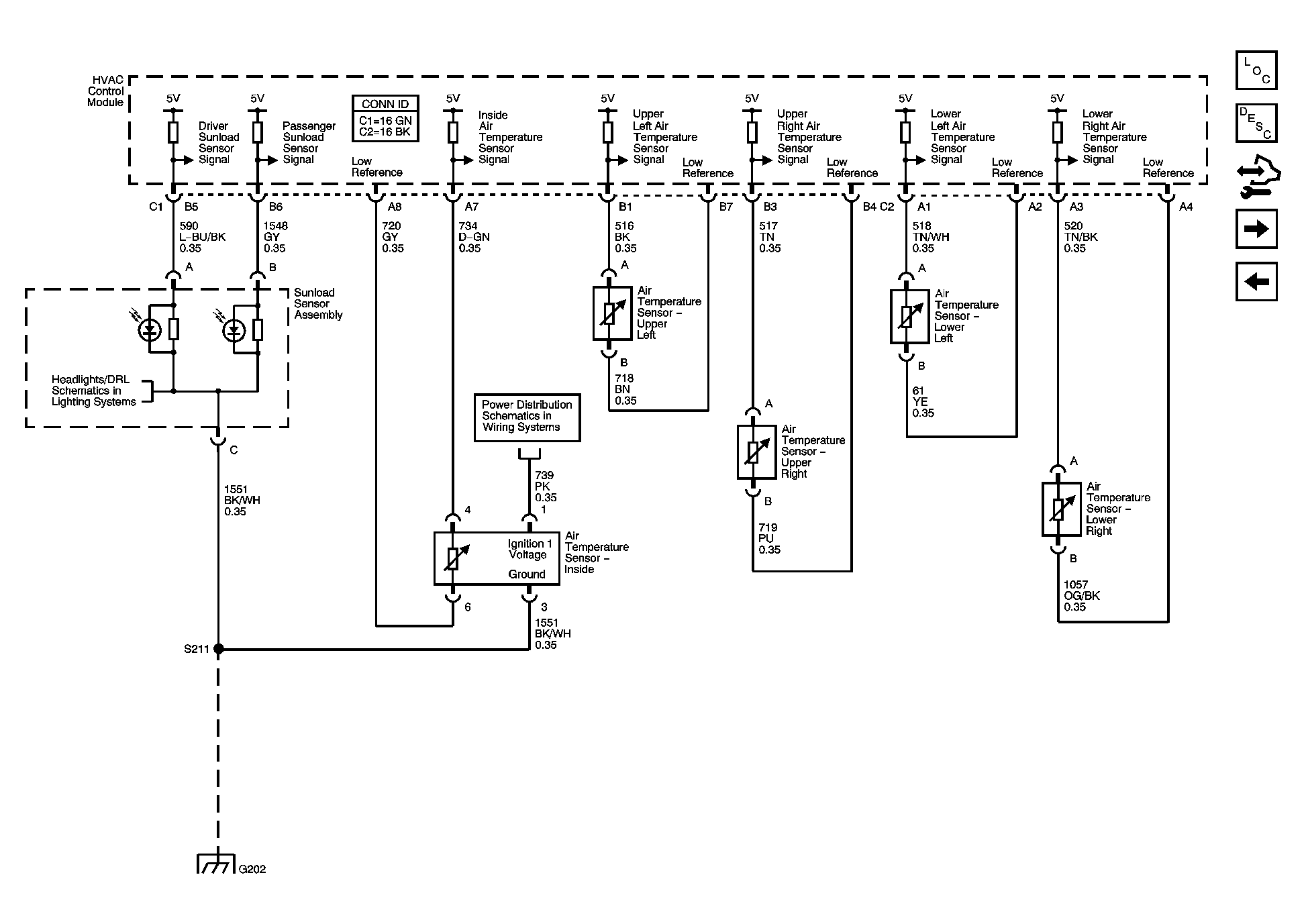

Fig 4: Air Temperature & Sunload Sensors Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 5: Air Delivery/Temperature Controls Schematic
