Passenger Seat Schematics

WARNING: This page is about a different car, the 2005 Buick LaCrosse and 2005 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: 6-Way Power Controls Schematic - Passenger Seat
GM1480327Courtesy of GENERAL MOTORS CORP.

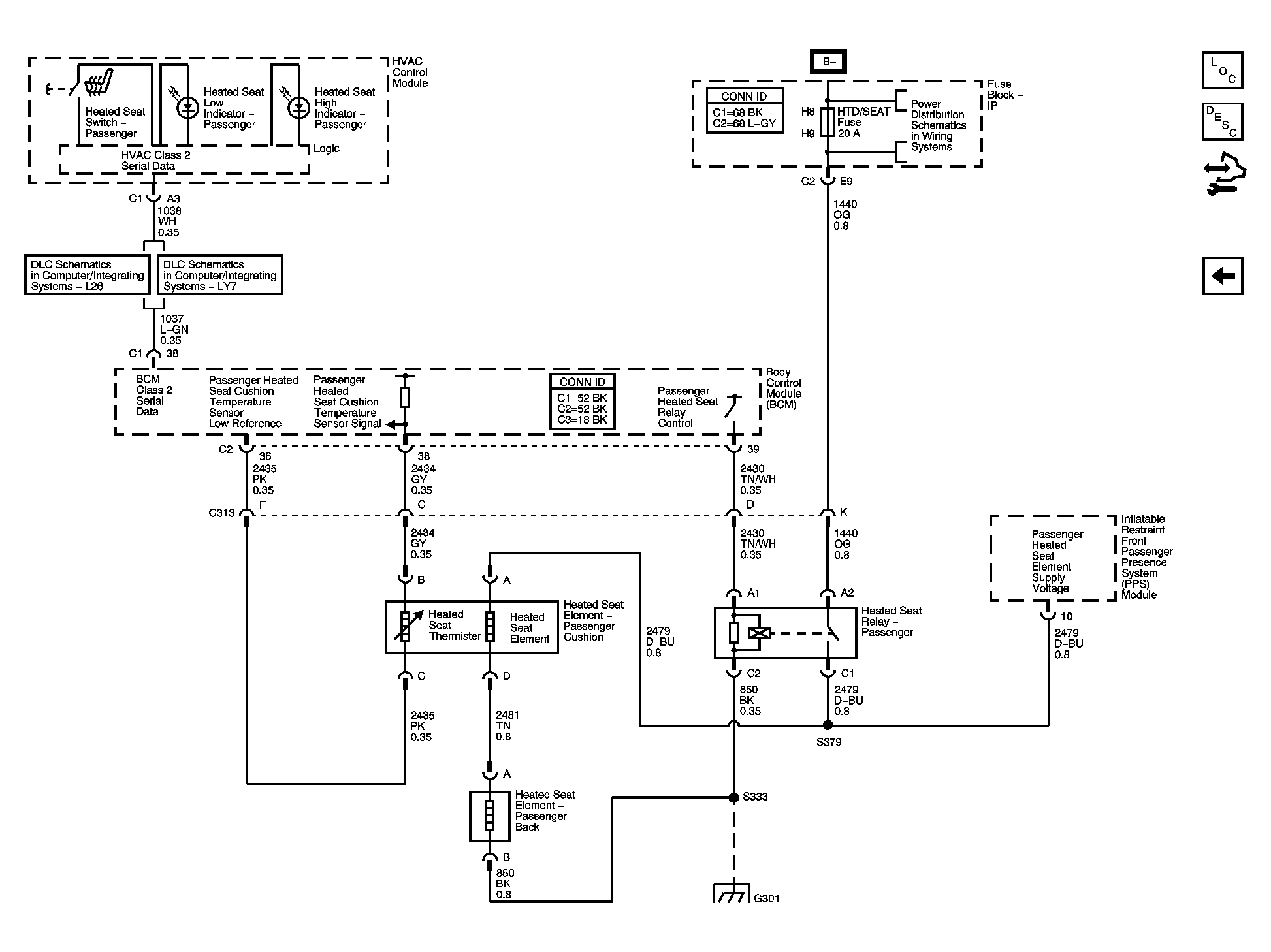

Fig 2: Heat Controls Schematic - Passenger Seat
GM1480328Courtesy of GENERAL MOTORS CORP.
