Wiper/Washer System Schematics

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

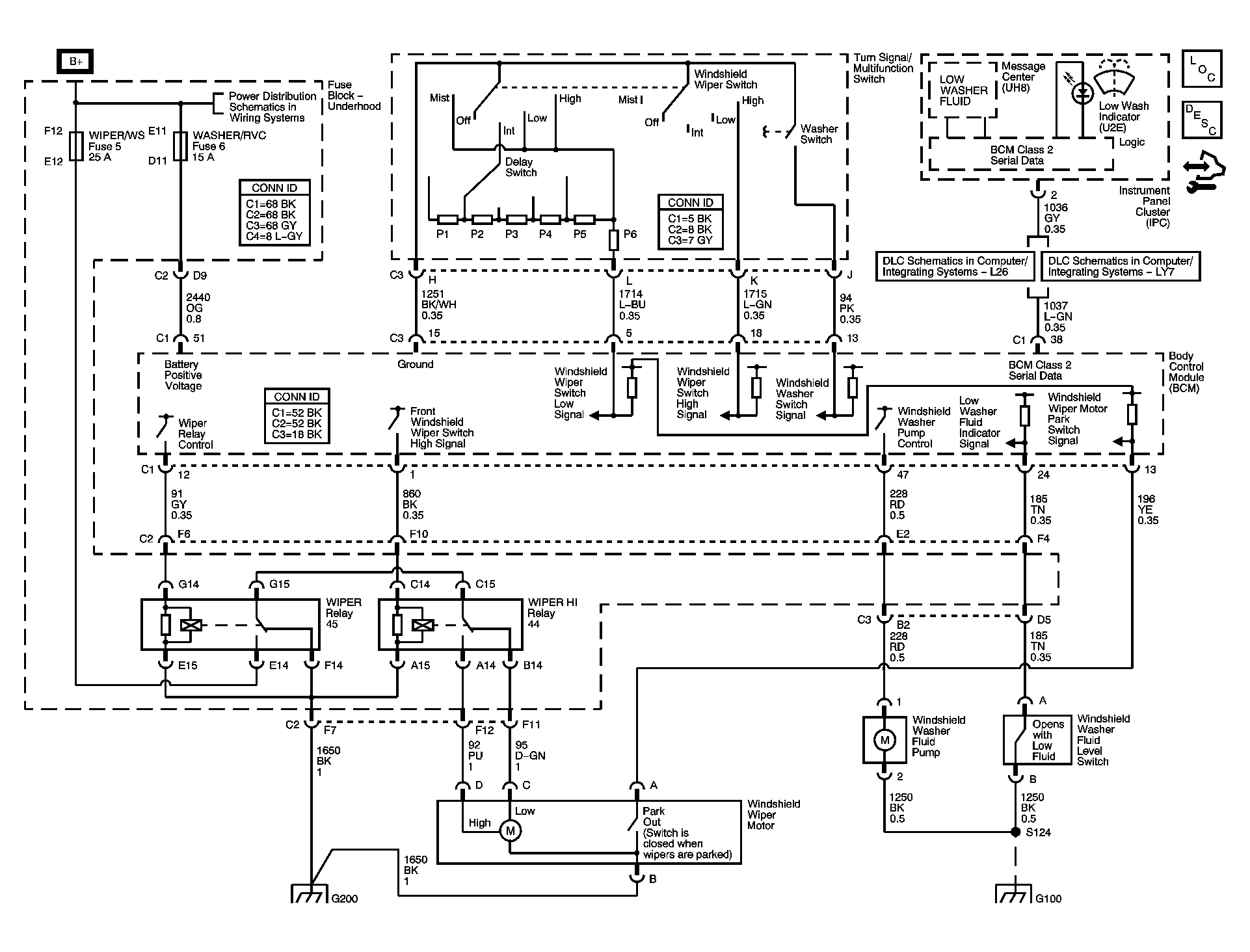

Fig 1: Wiper/Washer System Schematic
GM1645629Courtesy of GENERAL MOTORS CORP.
