Wiper Arm, Blade, Insert Replacement - Front

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

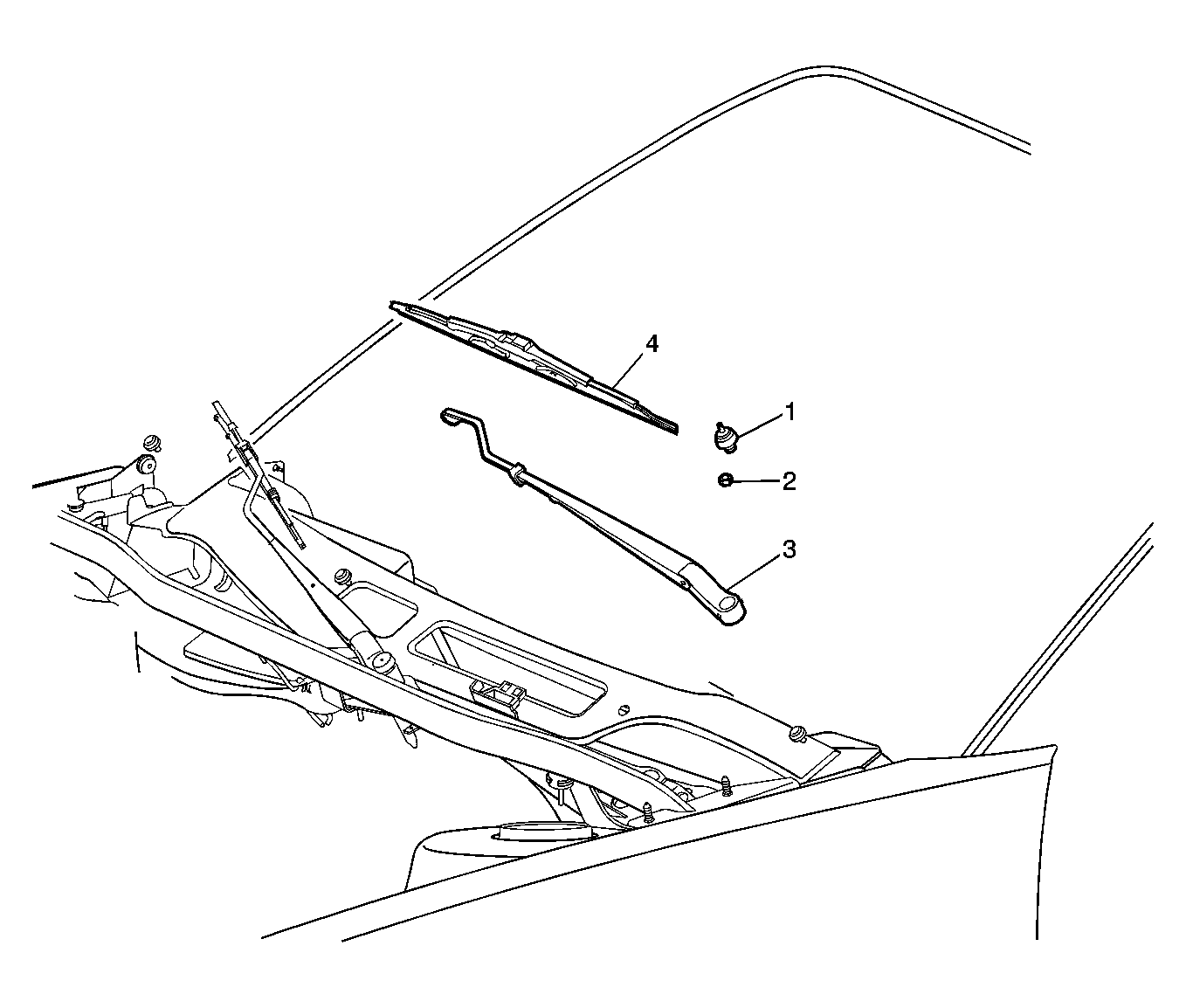

Fig 1: View Of Front Wiper Arm, Blade & Insert

Courtesy of GENERAL MOTORS CORP.

Wiper Arm, Blade & Insert Replacement - Front

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Cap, Wiper Arm (Qty: 2)
2	Nut, Wiper Arm (Qty: 2) Tighten: 25 N.m (18 lb ft)
3	Wiper Arm, Wiper Arm Assembly IMPORTANT: Use the J 39637 to remove the wiper arm from the wiper arm drive spindle.
4	Wiper Blade Assembly IMPORTANT: Keep the wiper blade claws in the rubber claw channel of the wiper blade element. Do not allow the claws of the wiper blade to contact the metal spline of the wiper blade element. Tip: To replace element, remove the bottom claws of the wiper blade element from the notches in the element of the wiper blade.
