Engine Controls Schematics

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

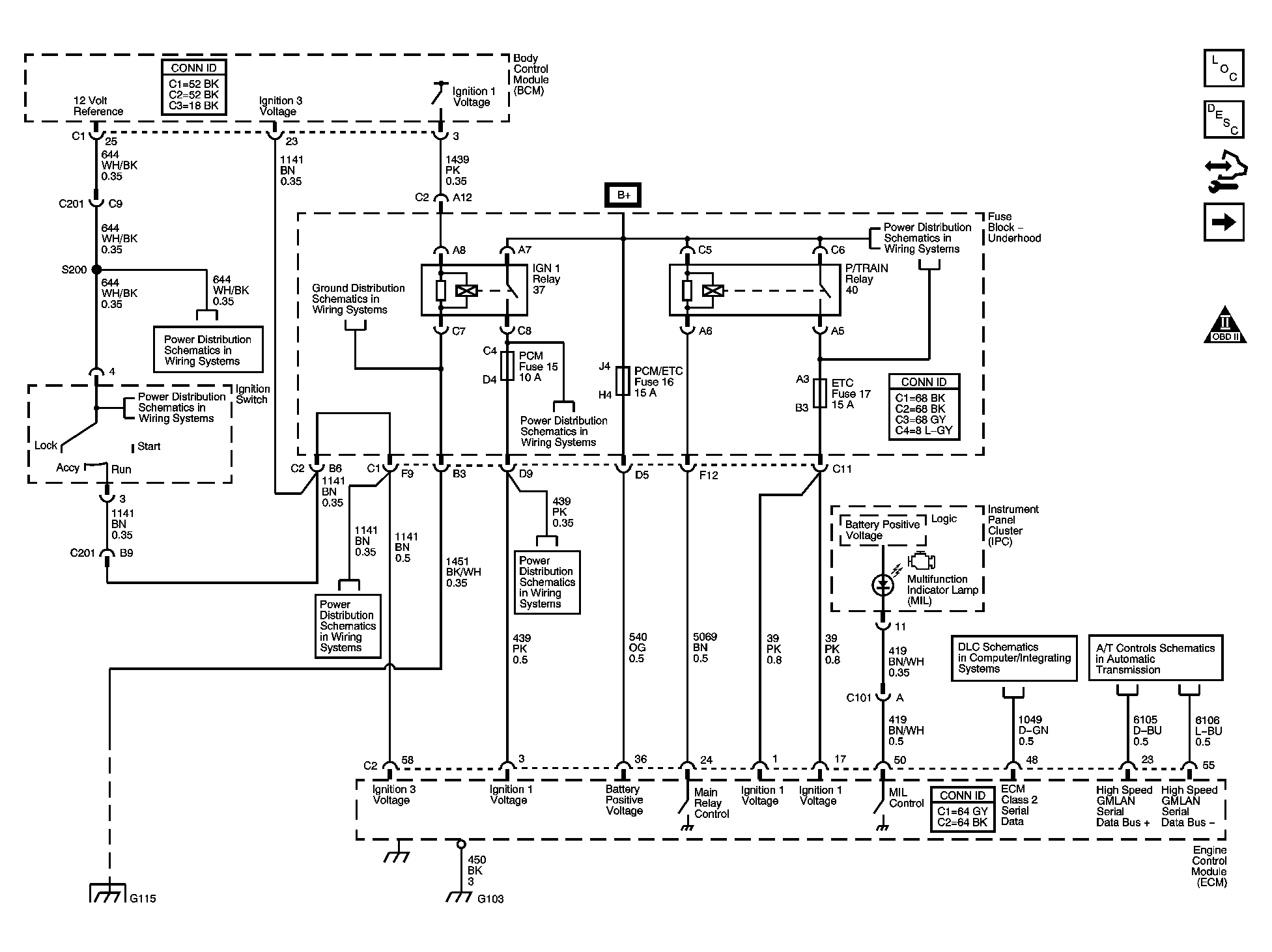

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

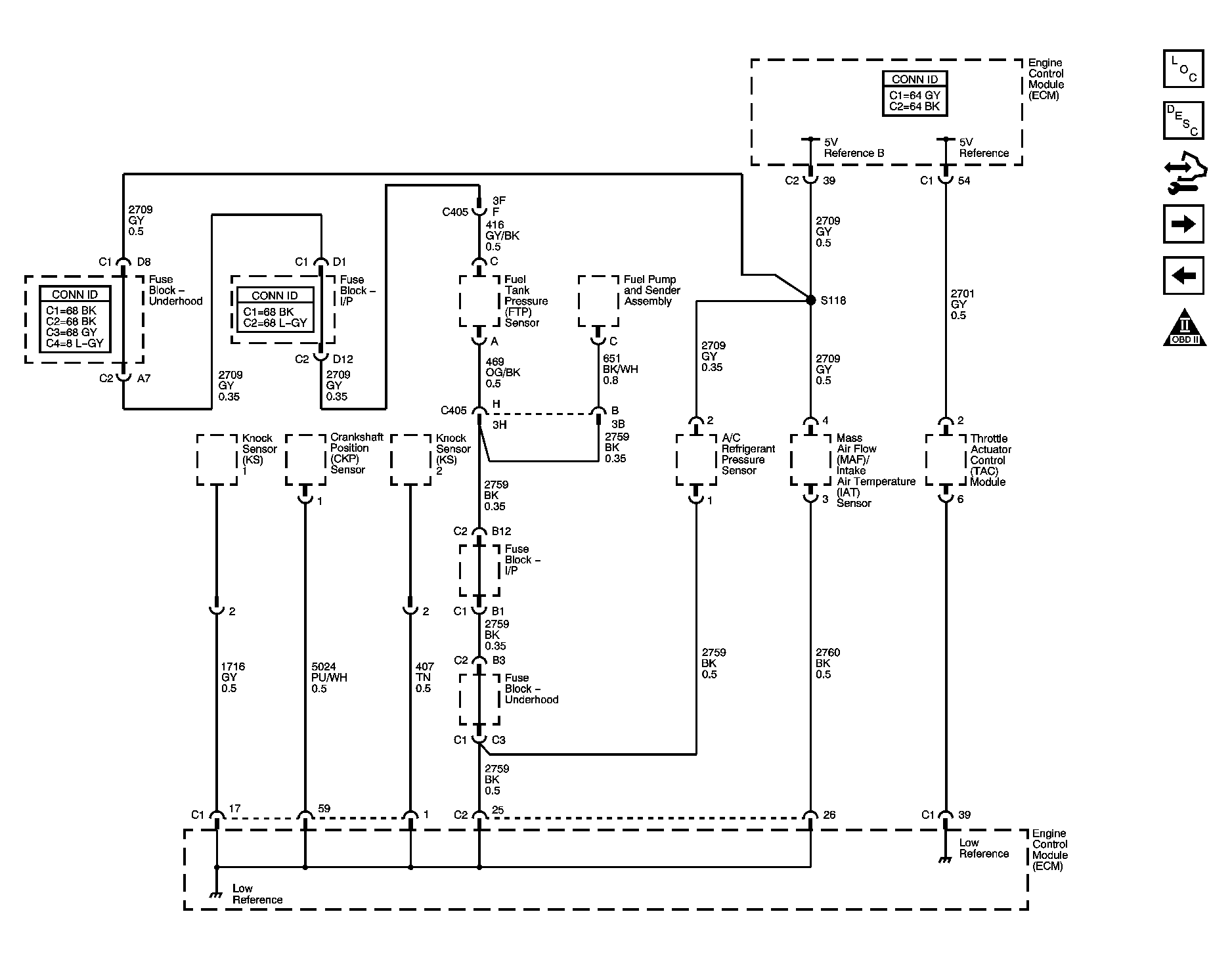

Fig 2: 5-Volt & Low Reference Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

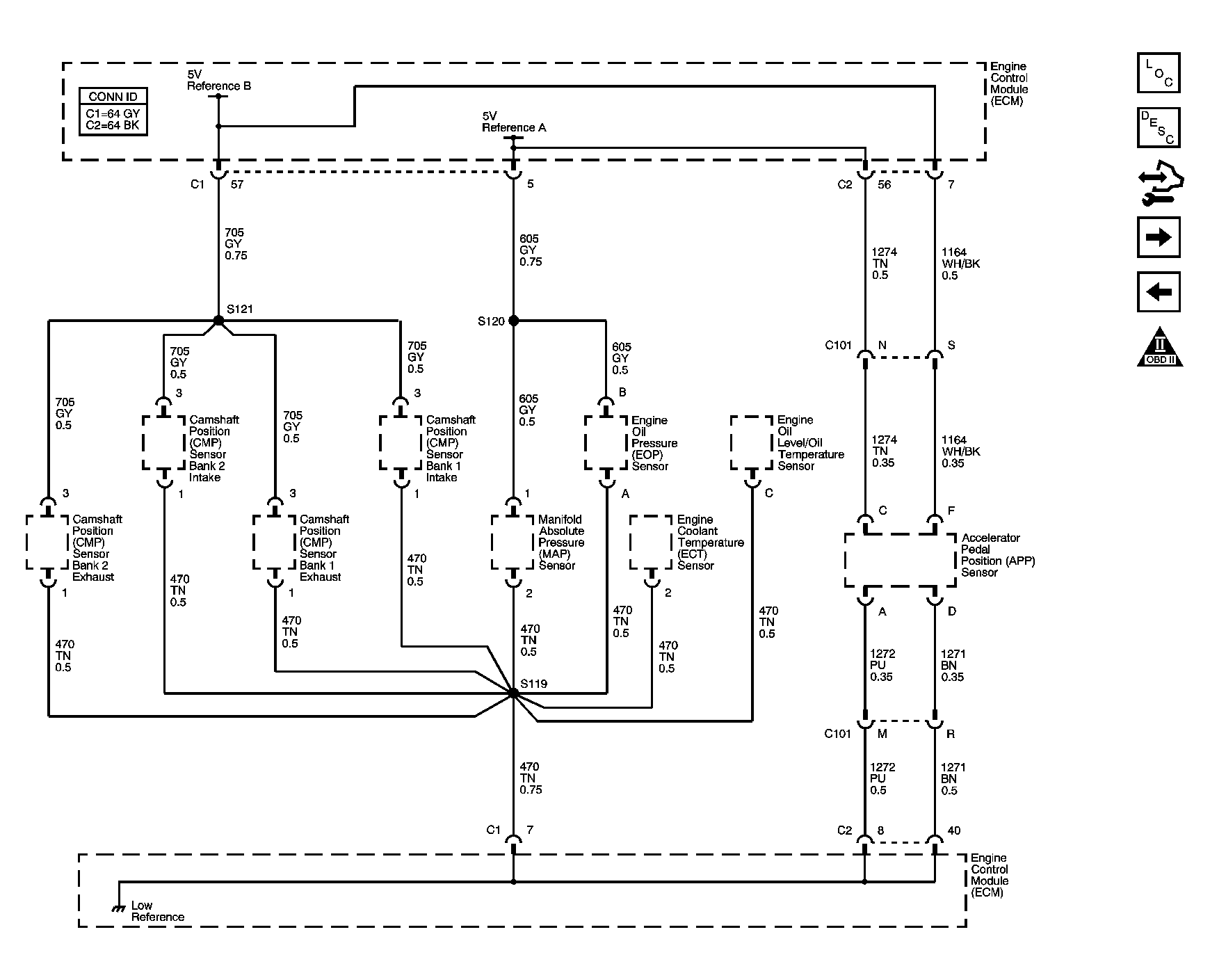

Fig 3: 5-Volt & Low Reference Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

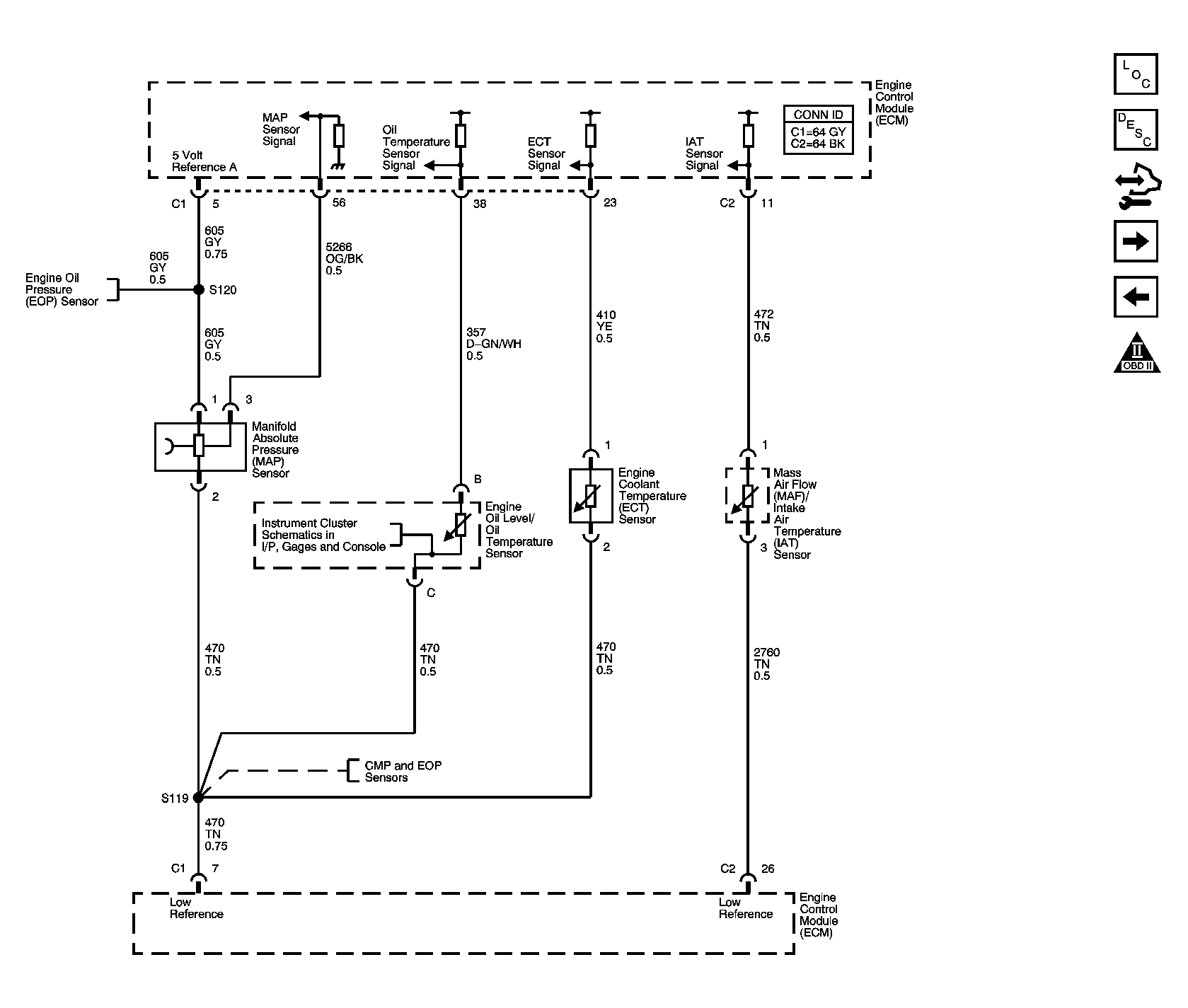

Fig 4: Pressure & Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

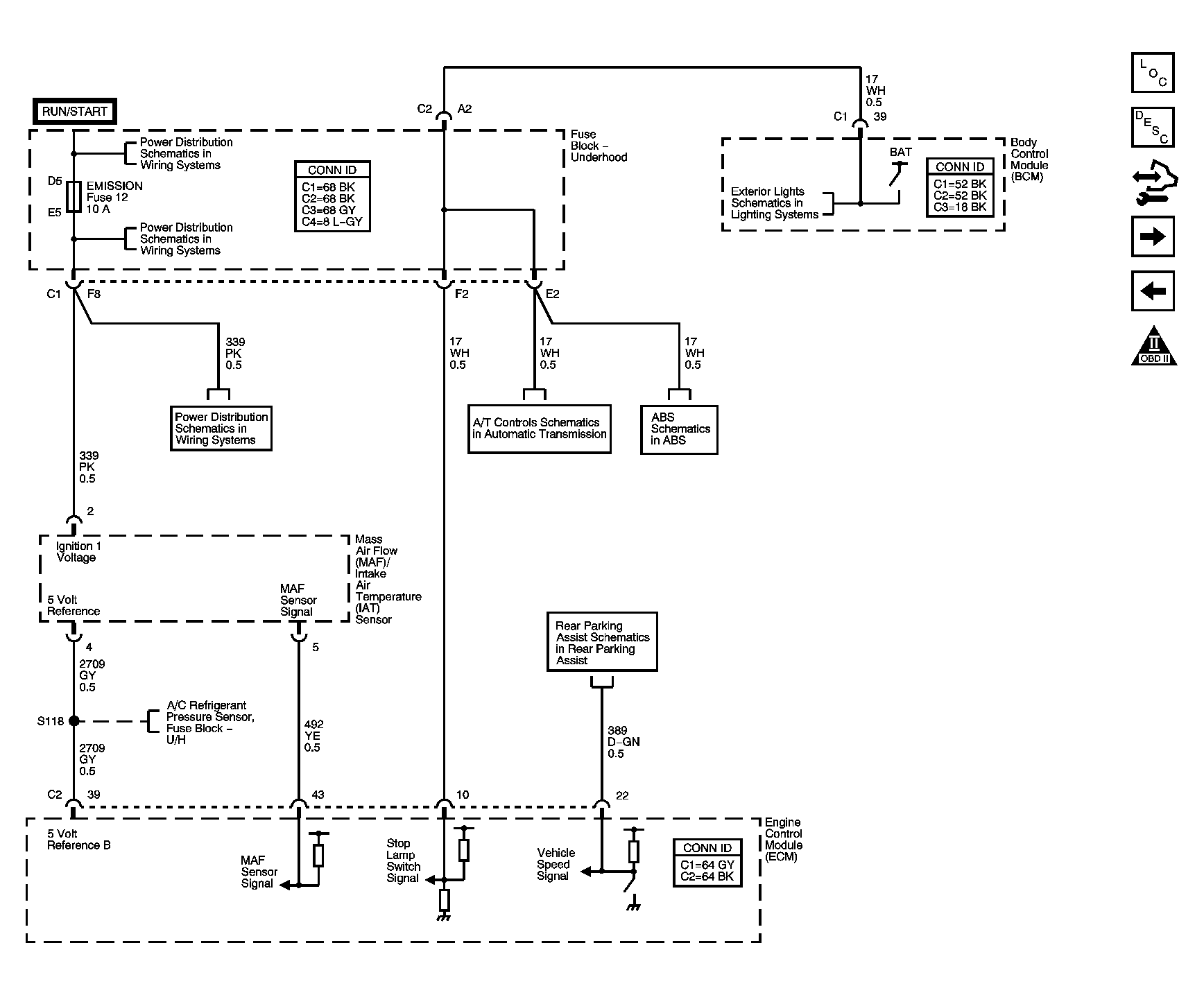

Fig 5: MAF, VSS & Stop Lamp Switch Schematic

Courtesy of GENERAL MOTORS CORP.

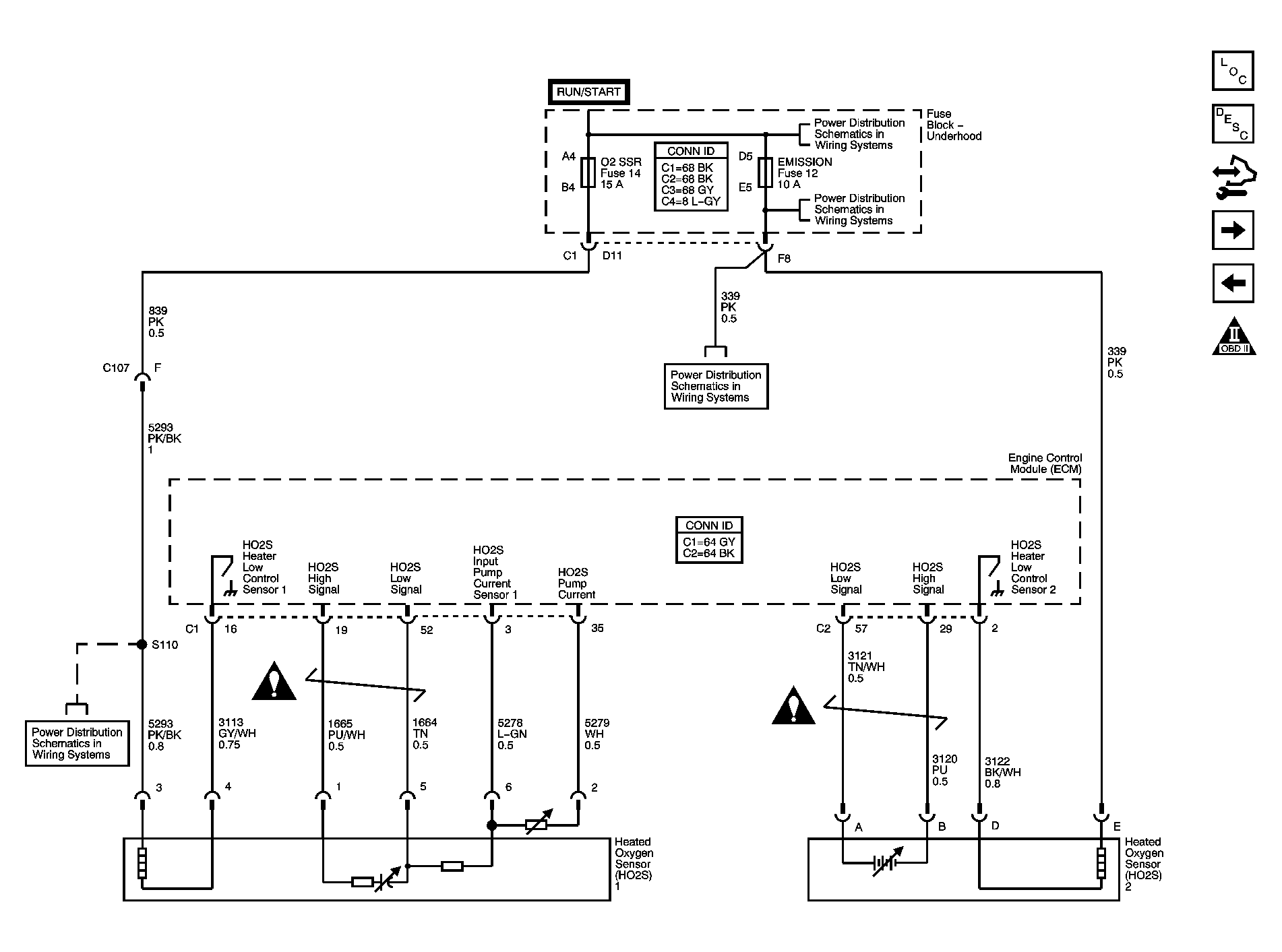

Fig 6: Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

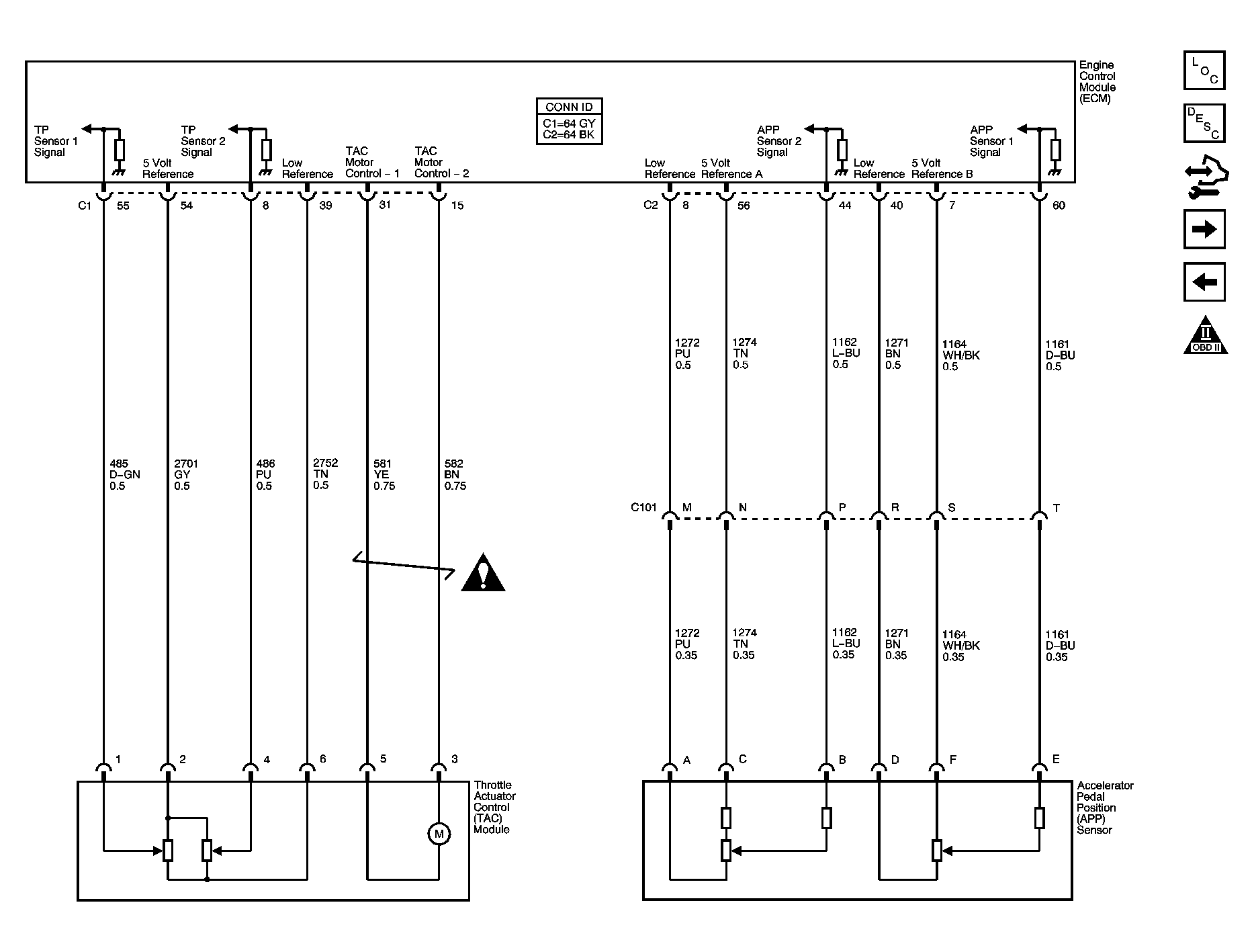

Fig 7: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: Ignition Controls Schematic - Bank 1 (Odd) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

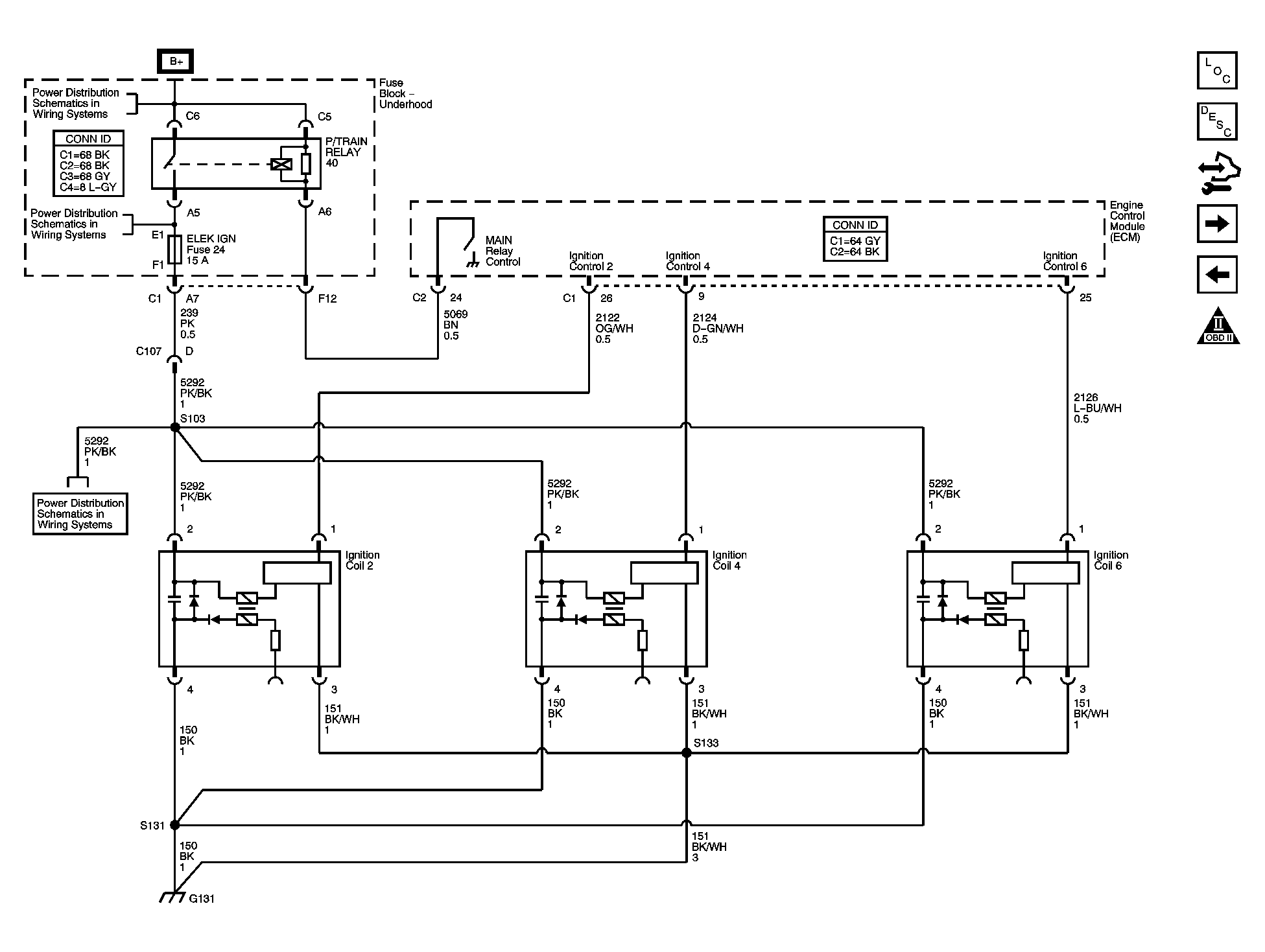

Fig 9: Ignition Controls Schematic - Bank 2 (Even) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Fig 10: Ignition Controls Schematic - Knock & CKP Sensors & Engine Speed

Courtesy of GENERAL MOTORS CORP.

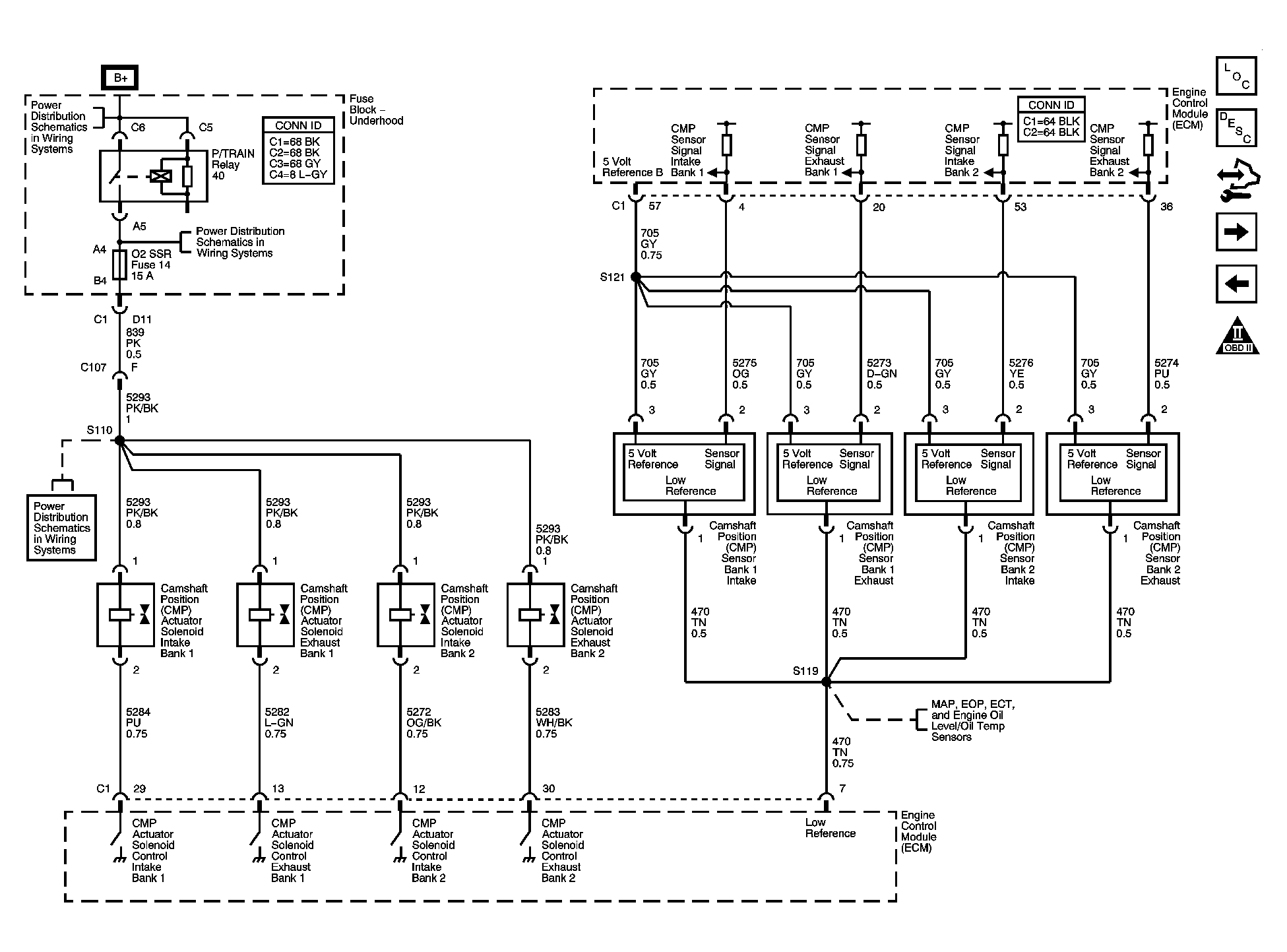

Fig 11: Ignition Controls Schematic - CMP Sensors & Solenoids

Courtesy of GENERAL MOTORS CORP.

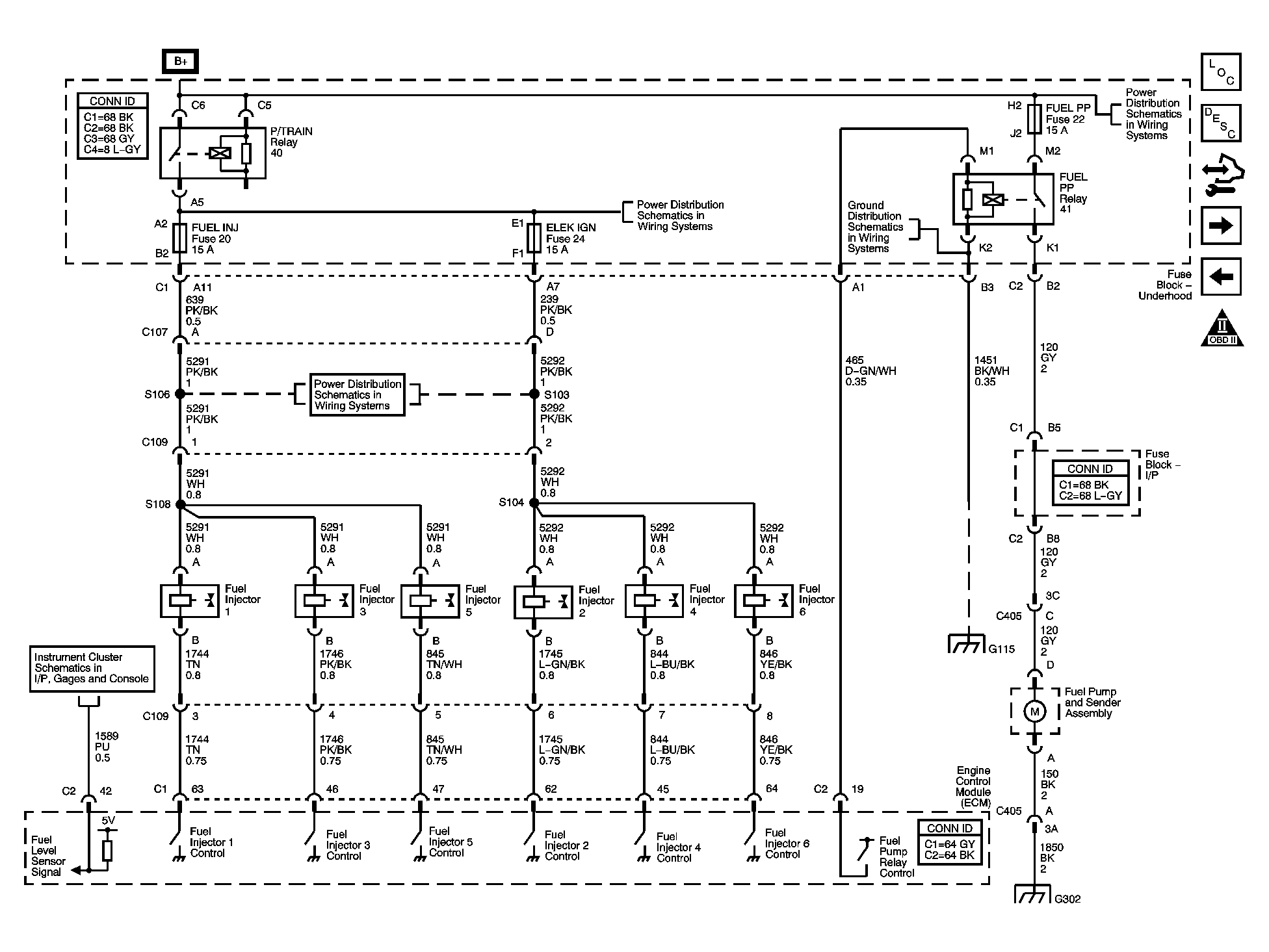

Fig 12: Fuel Controls Schematic - Fuel Pump & Injectors

Courtesy of GENERAL MOTORS CORP.

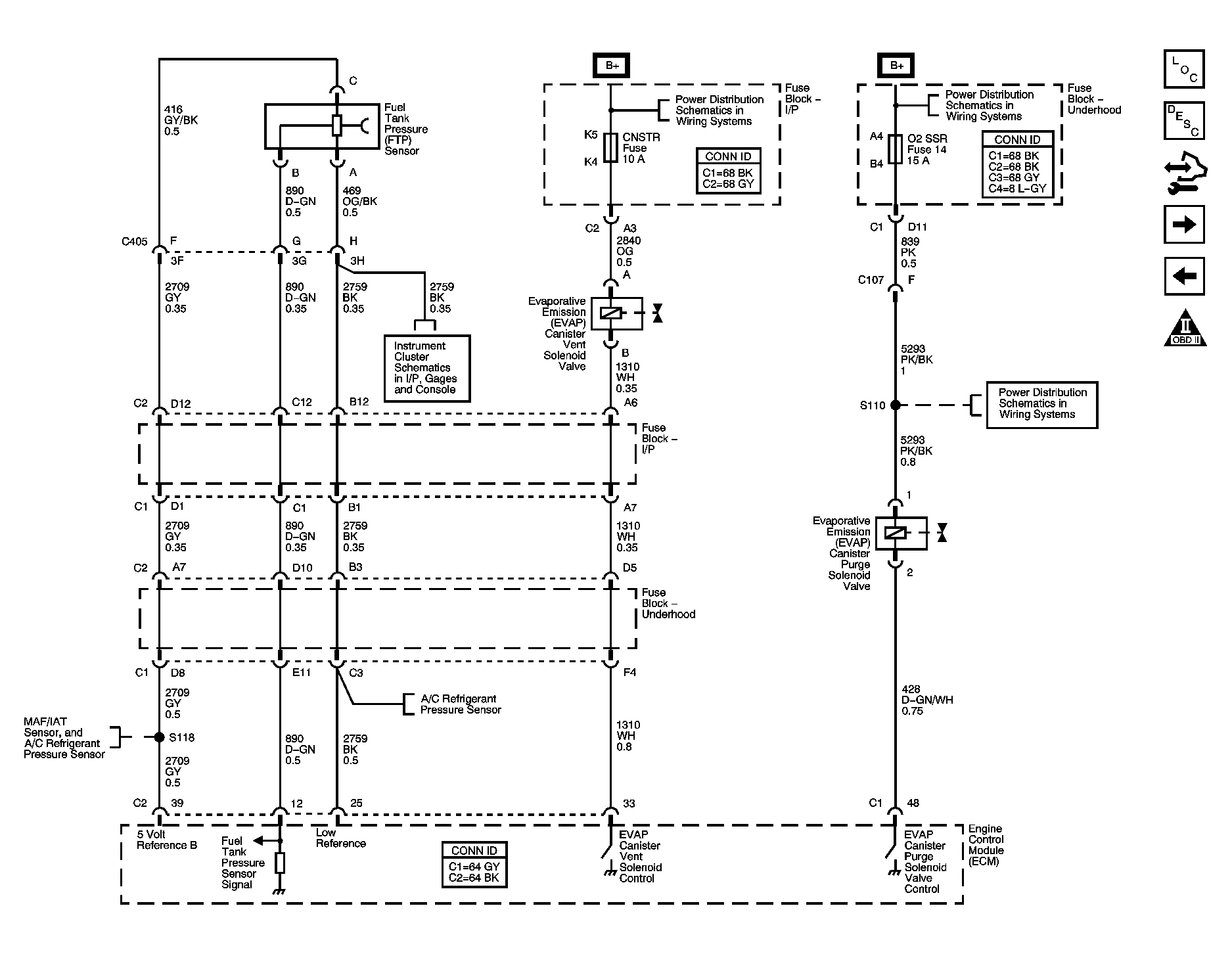

Fig 13: EVAP Controls Schematic

Courtesy of GENERAL MOTORS CORP.

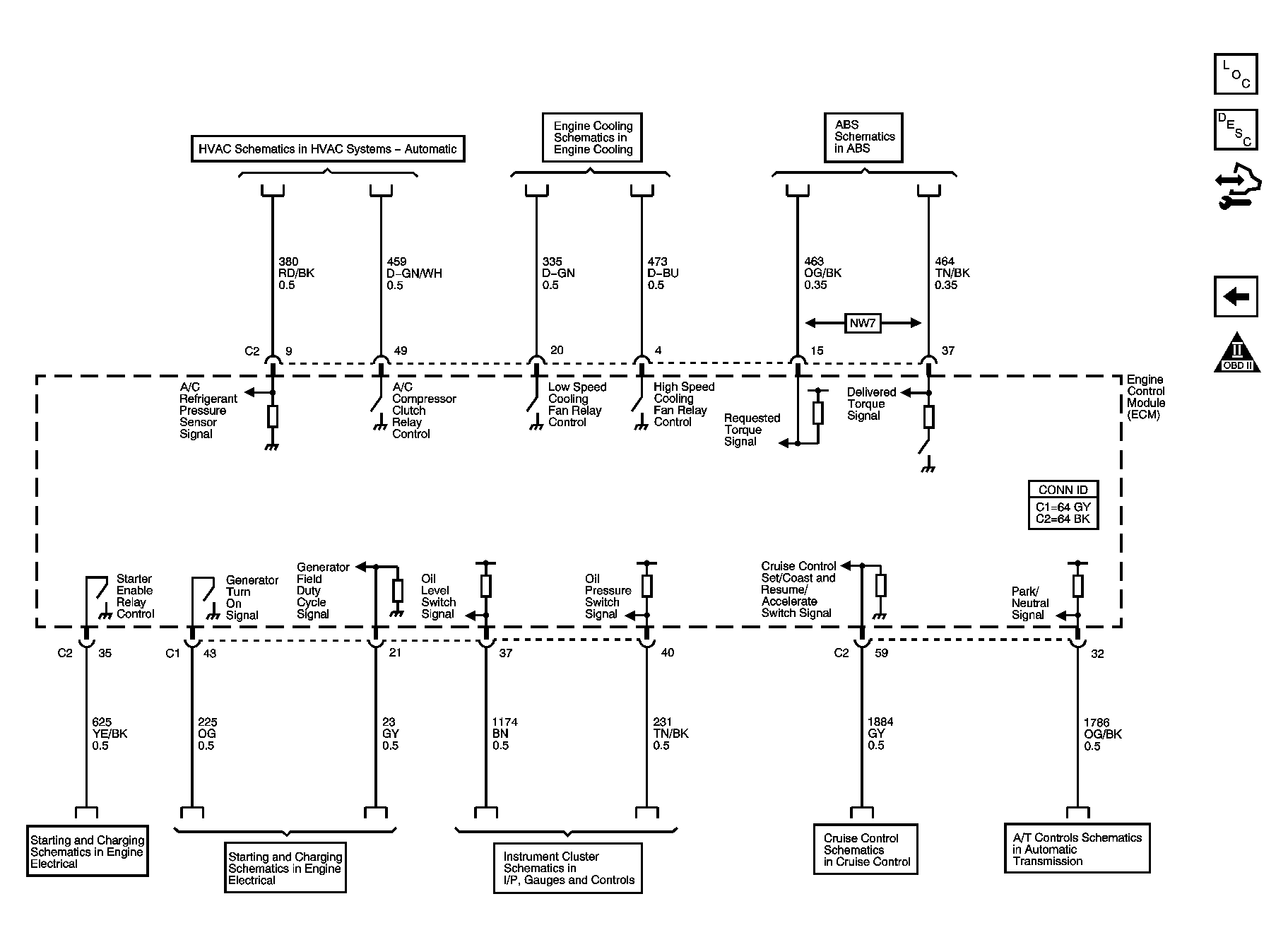

Fig 14: Module References Schematic

Courtesy of GENERAL MOTORS CORP.
