Ground Distribution Schematics

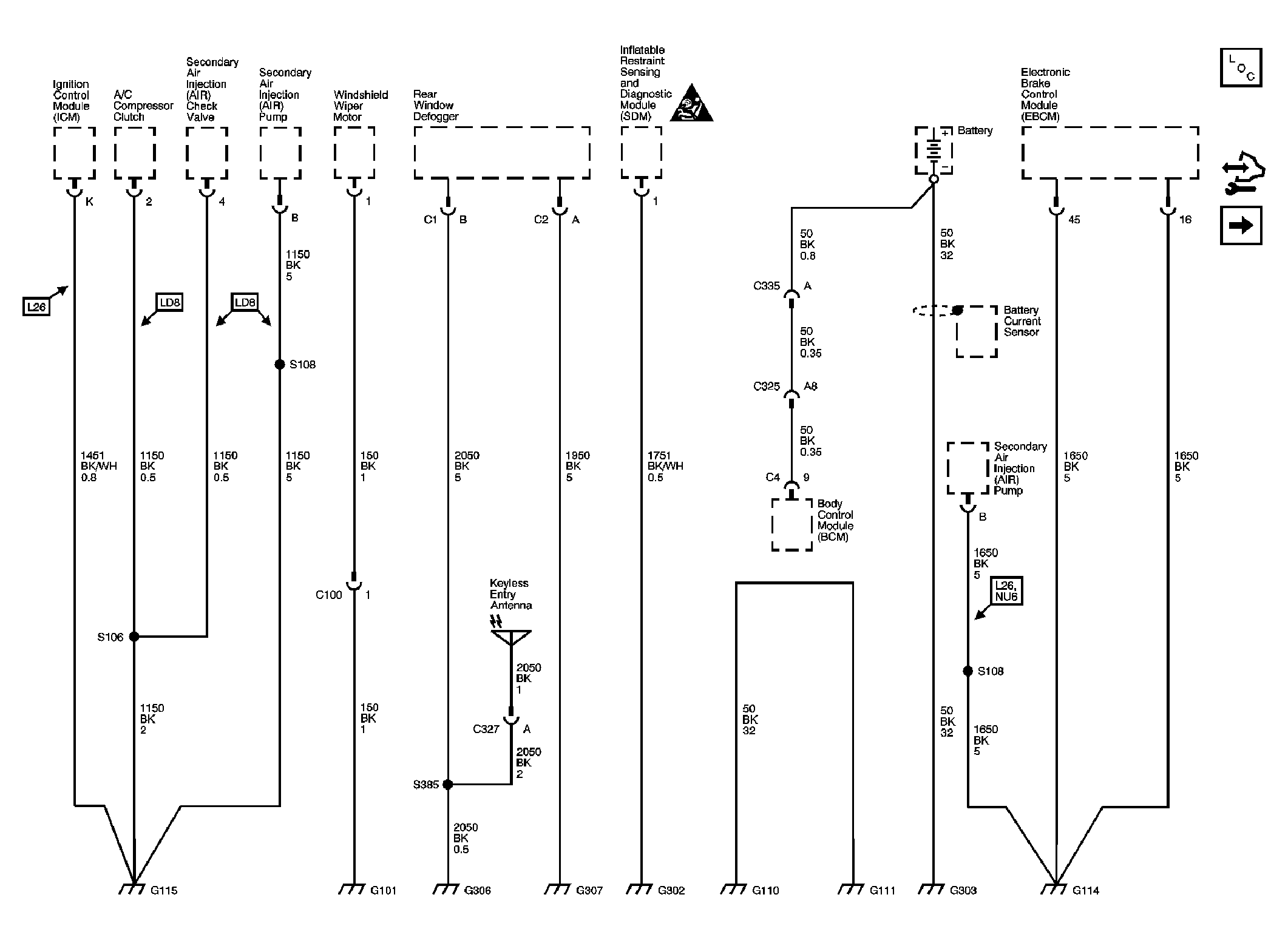

Fig 1: G101, G110, G111, G114, G115, G302, G303, G306, G307

Courtesy of GENERAL MOTORS CORP.

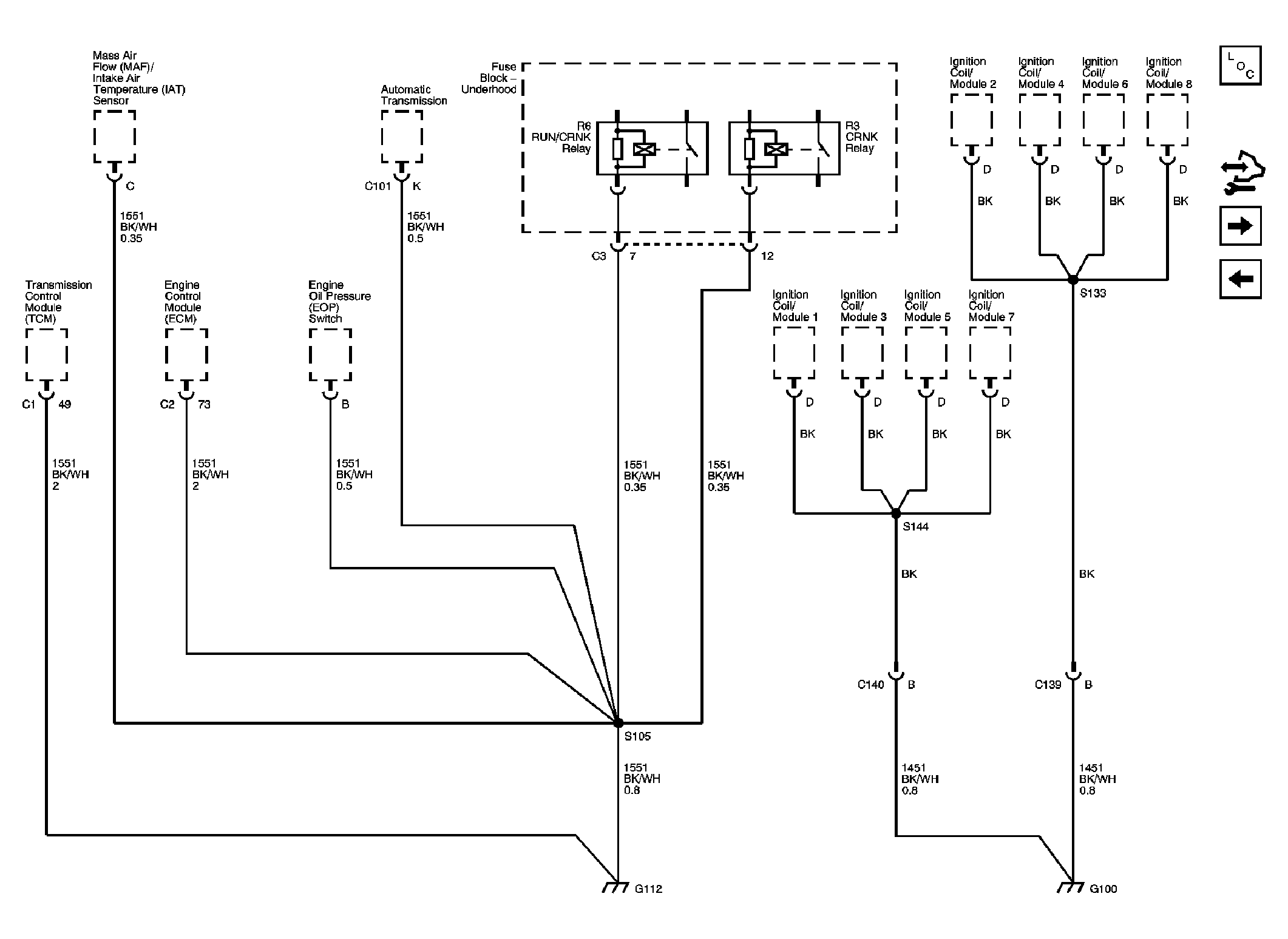

Fig 2: G100, G112 (LD8)

Courtesy of GENERAL MOTORS CORP.

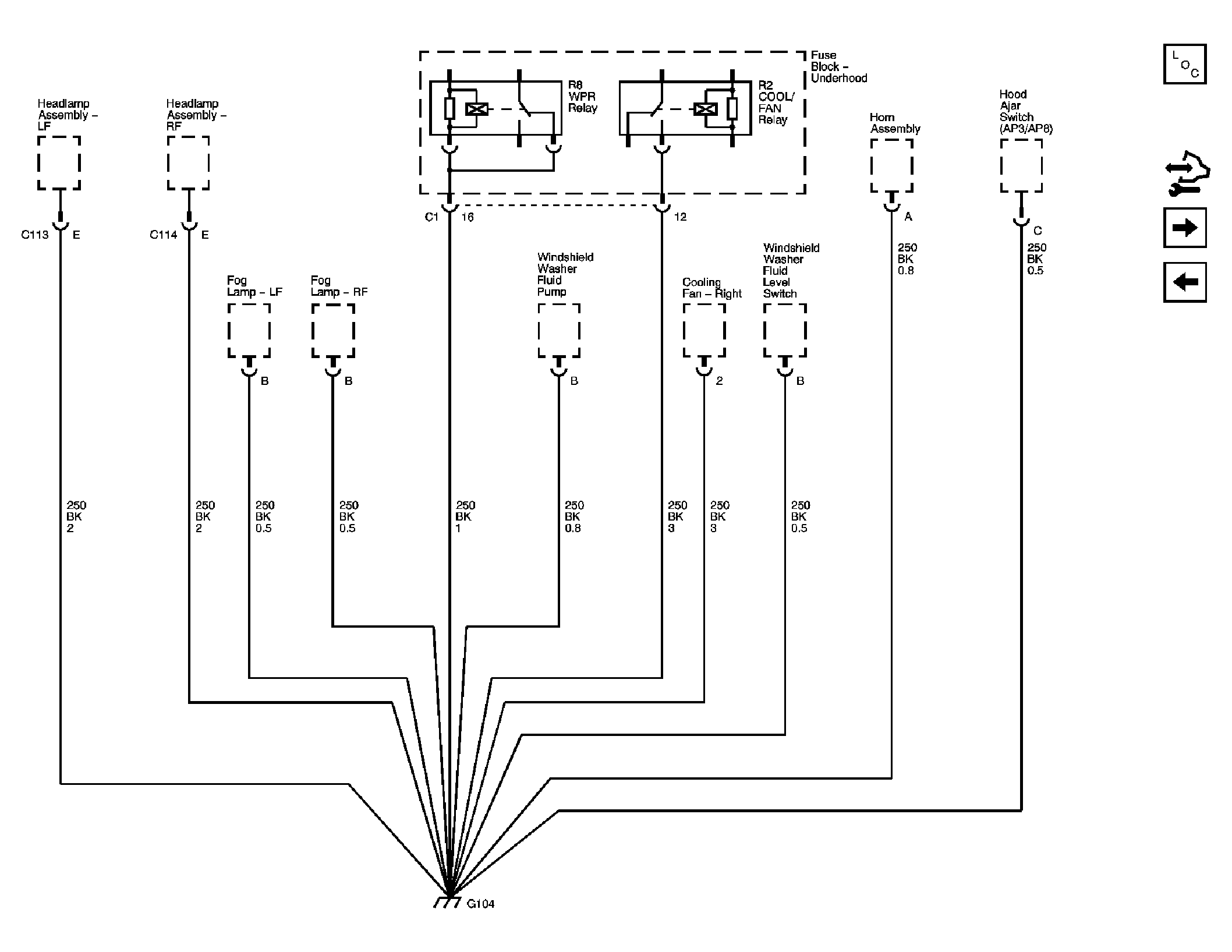

Fig 3: G104

Courtesy of GENERAL MOTORS CORP.

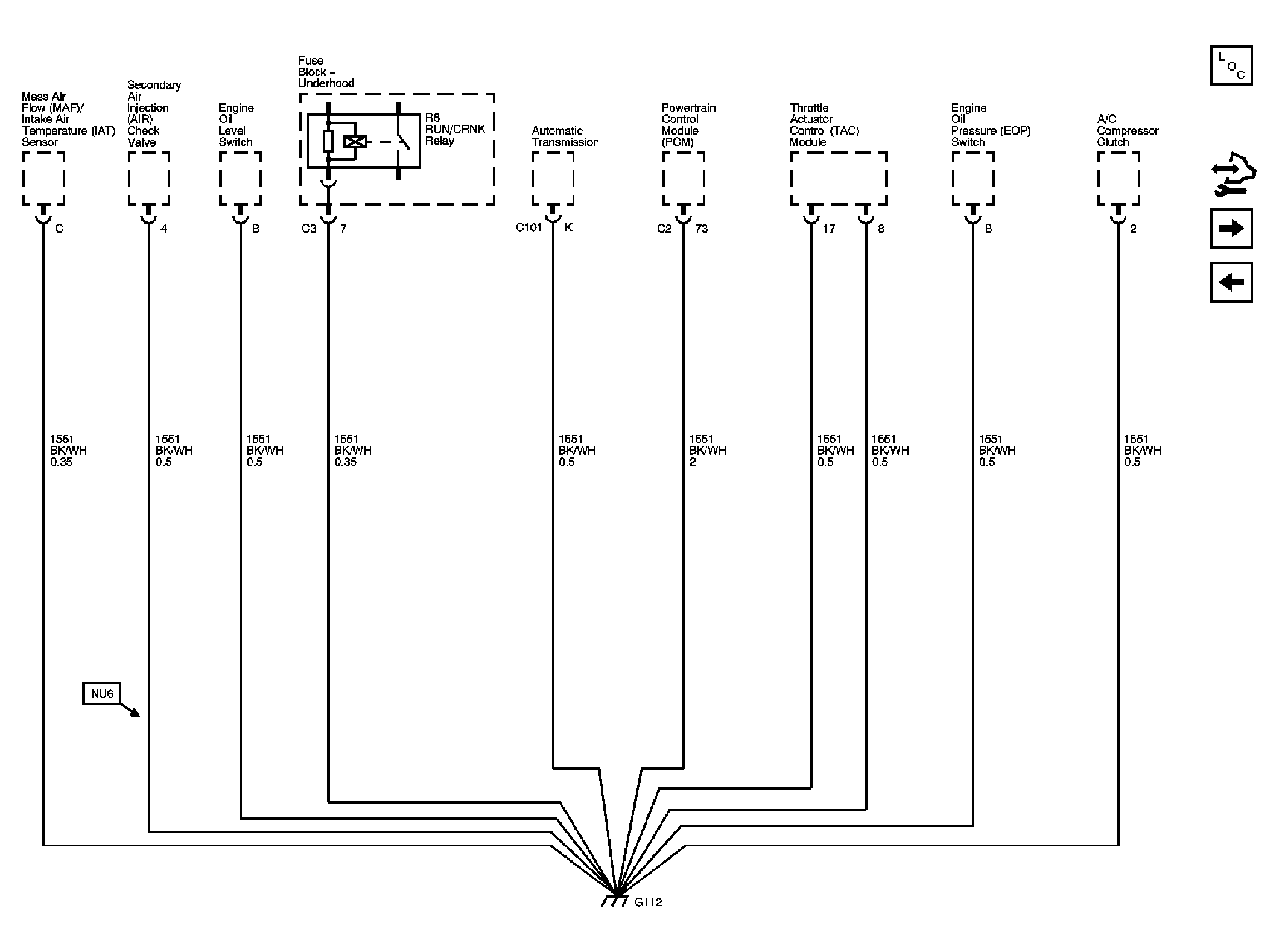

Fig 4: G112 (L26)

Courtesy of GENERAL MOTORS CORP.

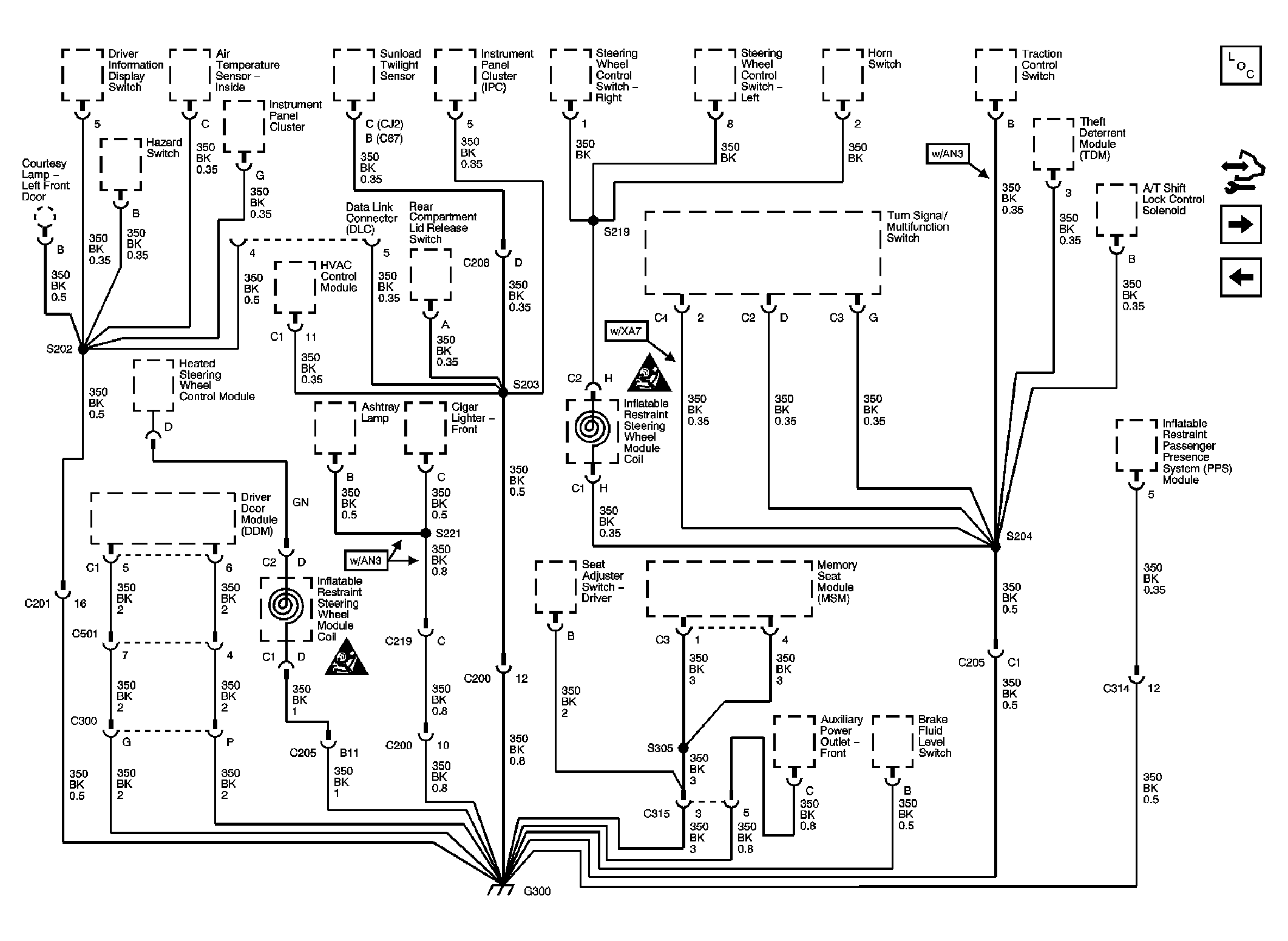

Fig 5: G300

Courtesy of GENERAL MOTORS CORP.

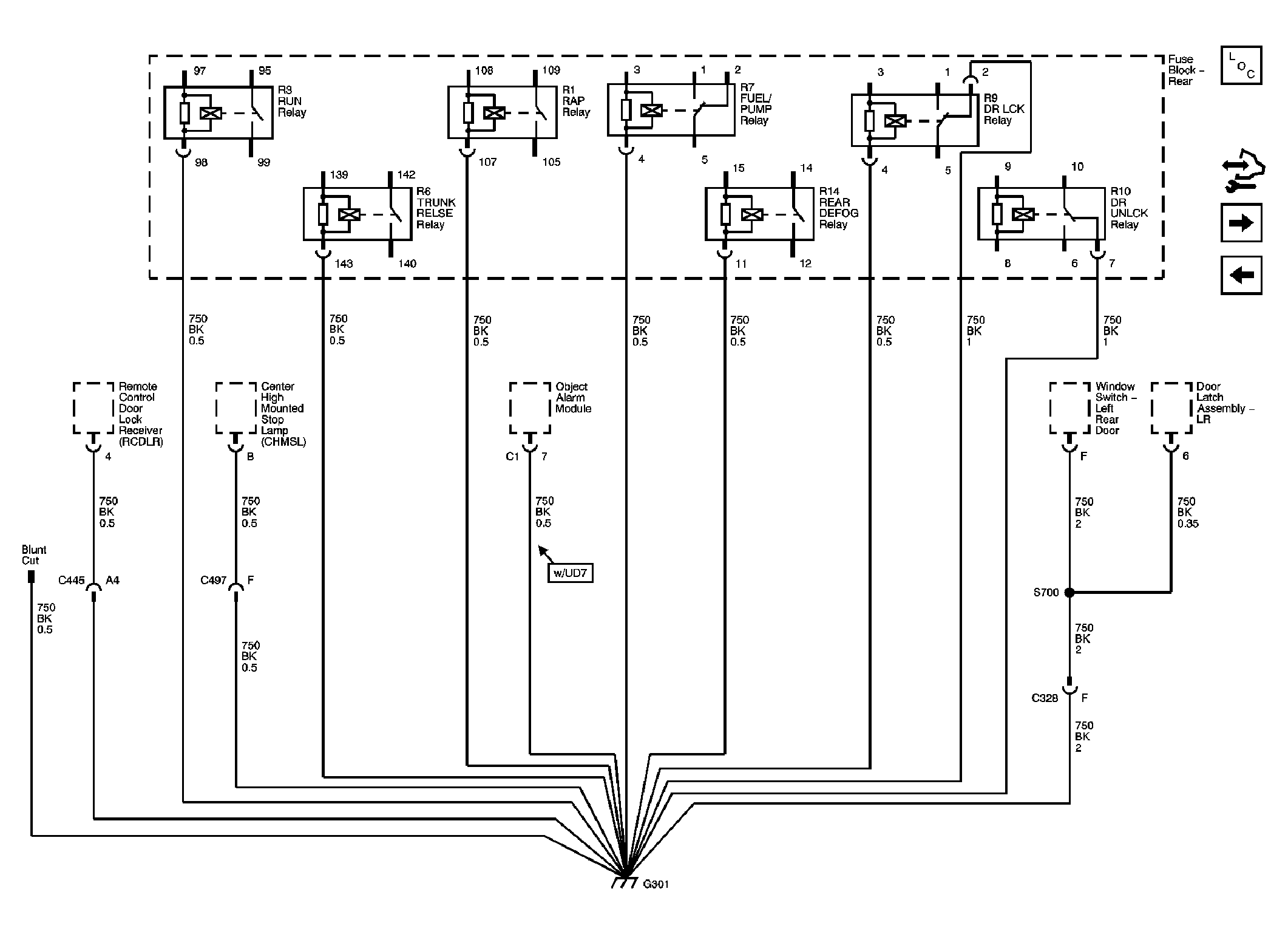

Fig 6: G301

Courtesy of GENERAL MOTORS CORP.

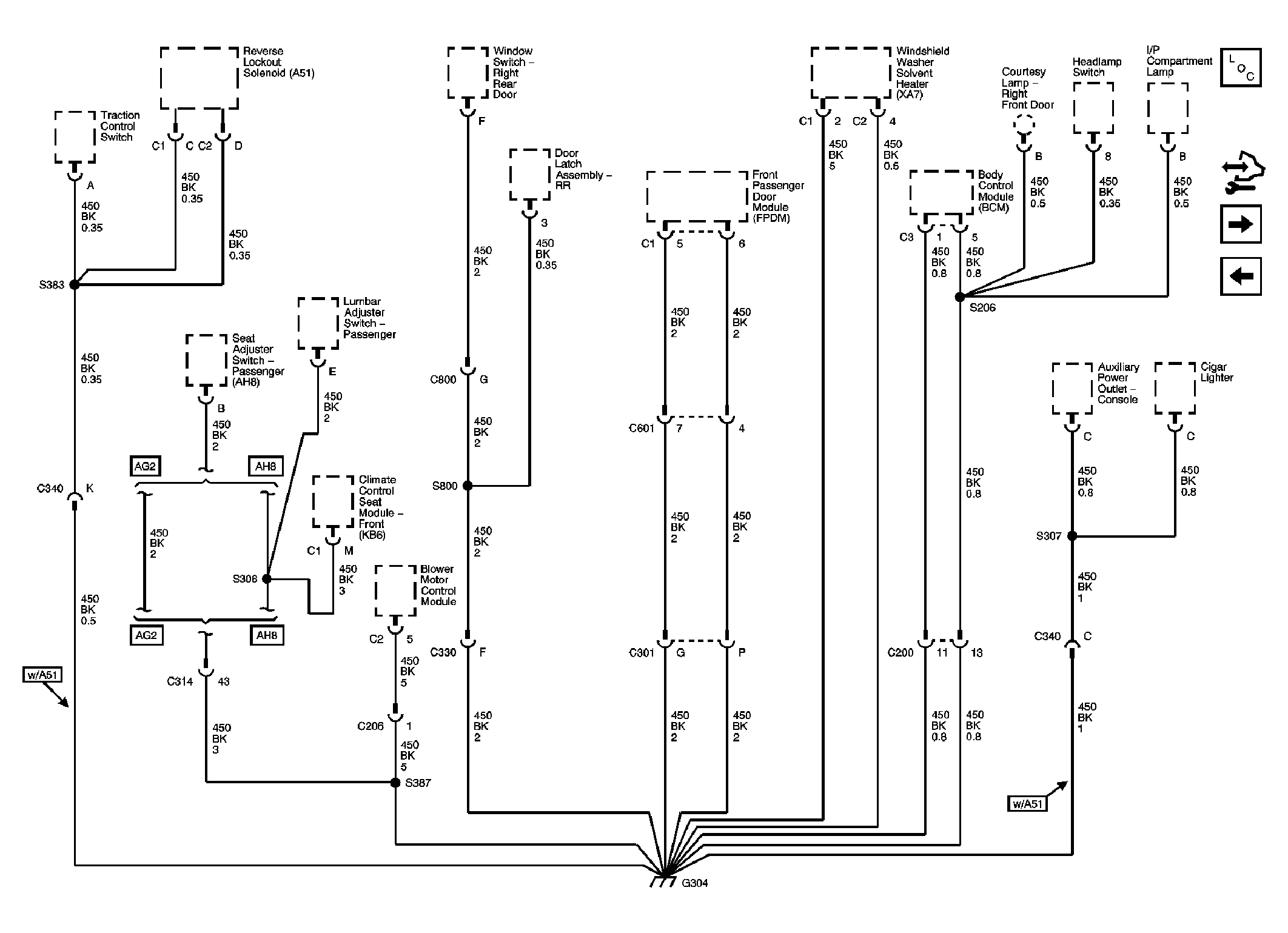

Fig 7: G304

Courtesy of GENERAL MOTORS CORP.

Fig 8: G305

Courtesy of GENERAL MOTORS CORP.

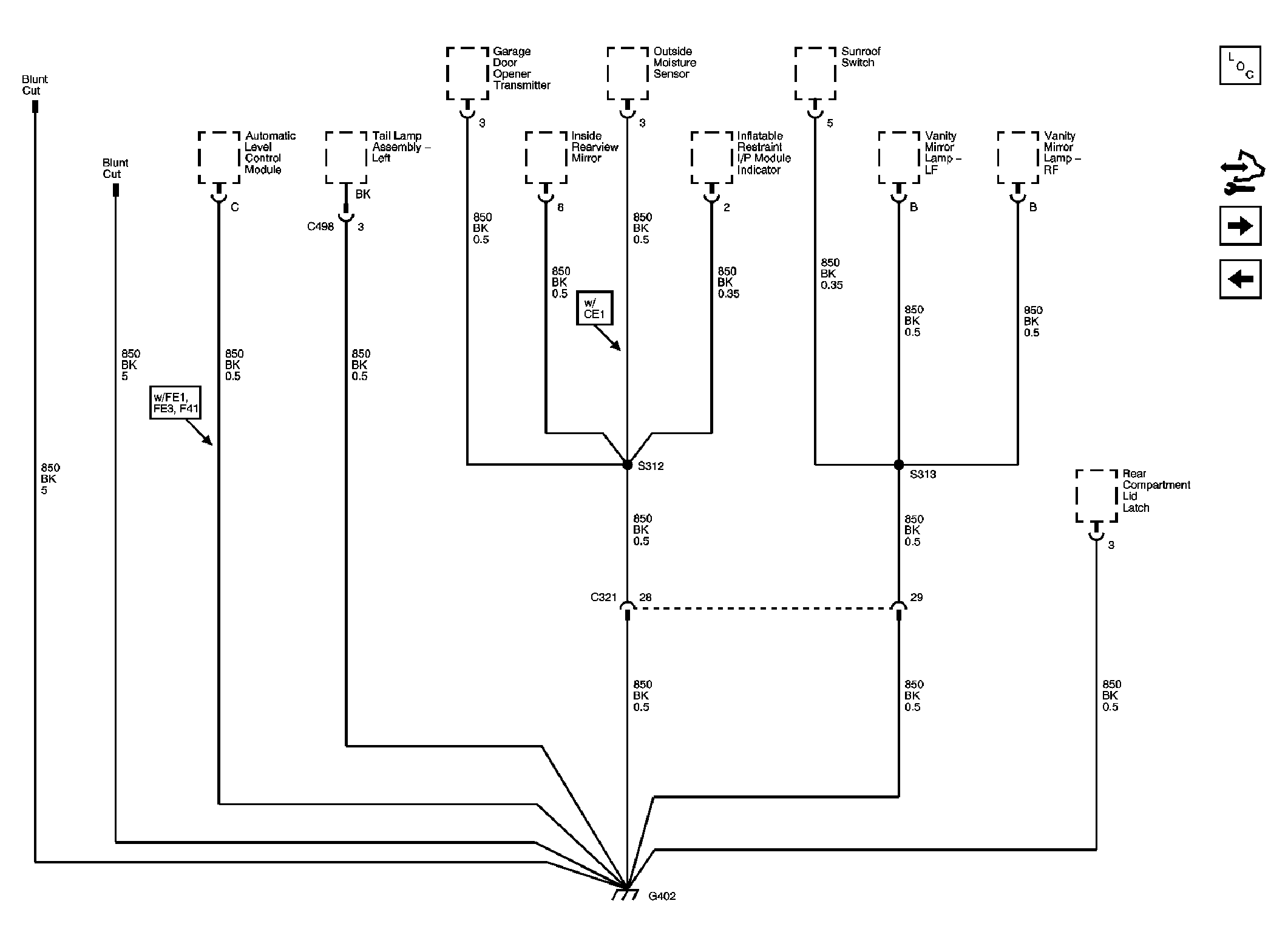

Fig 9: G402

Courtesy of GENERAL MOTORS CORP.

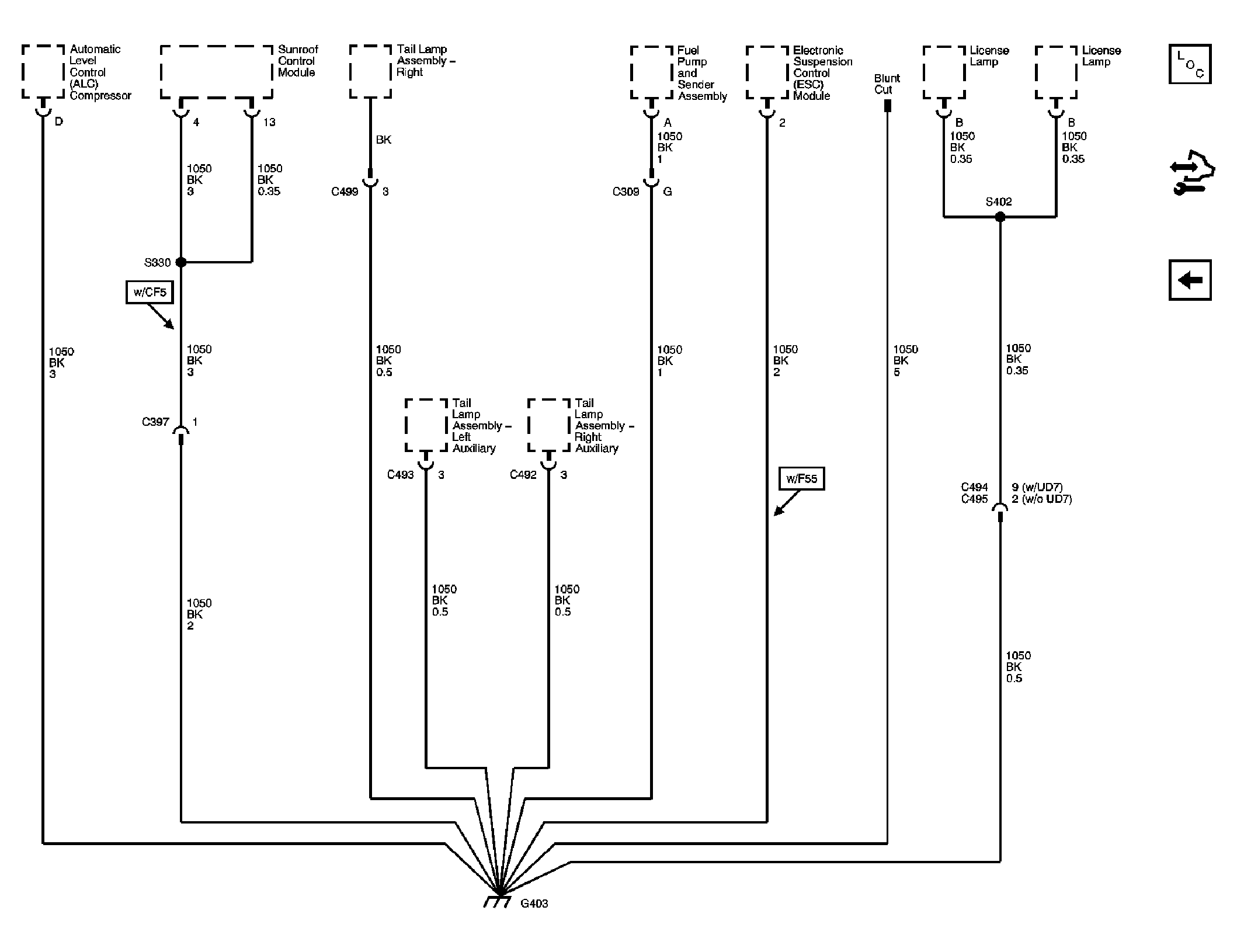

Fig 10: G403

Courtesy of GENERAL MOTORS CORP.
