Underhood Electrical Center or Junction Block Replacement

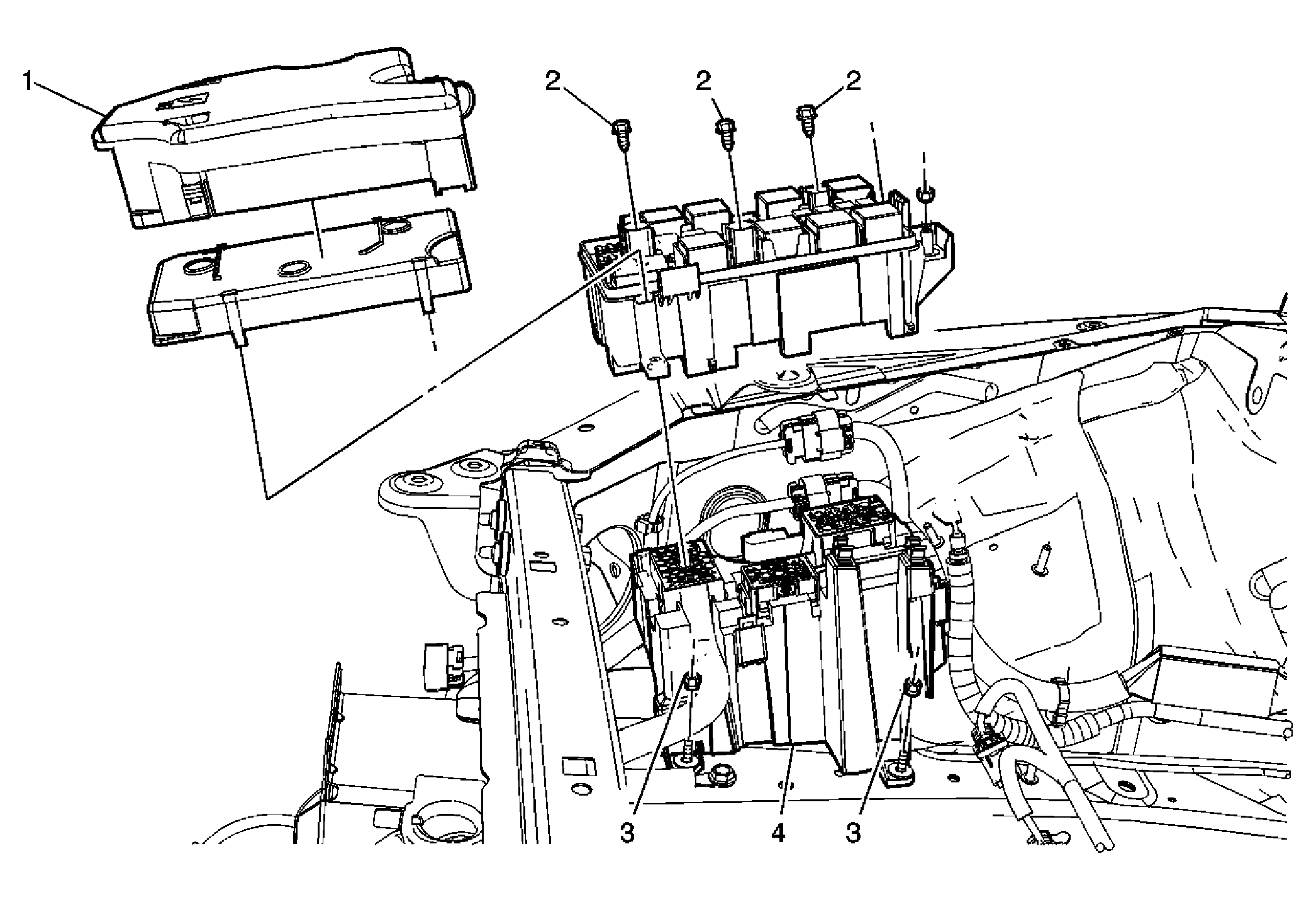

Fig 1: Identifying Underhood Electrical Center or Junction Block

Courtesy of GENERAL MOTORS CORP.

Underhood Electrical Center or Junction Block Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Body Harness Junction Block Cover
2	Body Harness Junction Block Screws Tighten:  9 N.m (80 lb ft)
3	Body Harness Junction Block Nuts Tighten:  9 N.m (80 lb ft)
4	Body Harness Junction Block Tip:  Disconnect the electrical connectors.
