Instrument Cluster Schematics

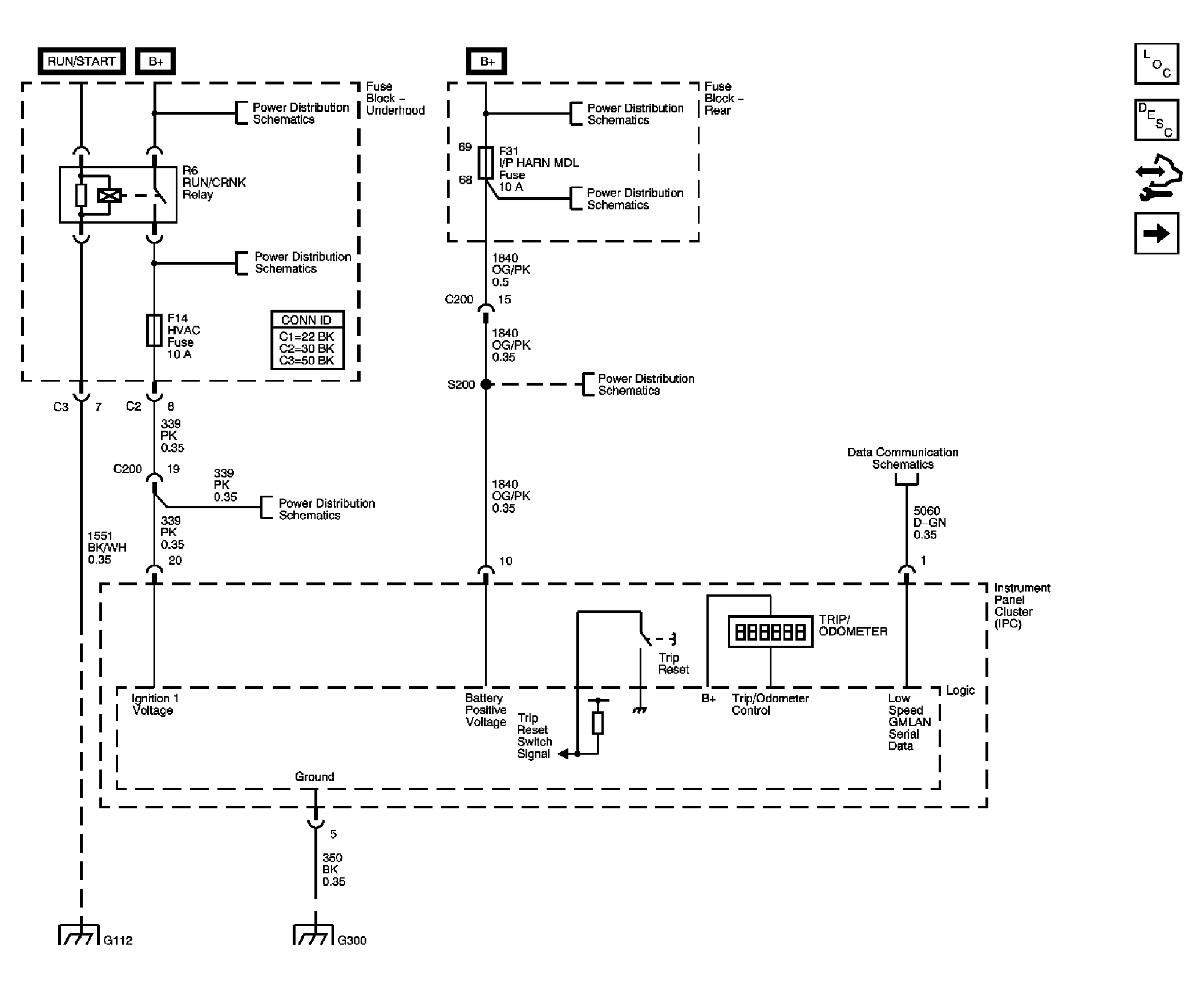

Fig 1: Power and Ground

Courtesy of GENERAL MOTORS CORP.

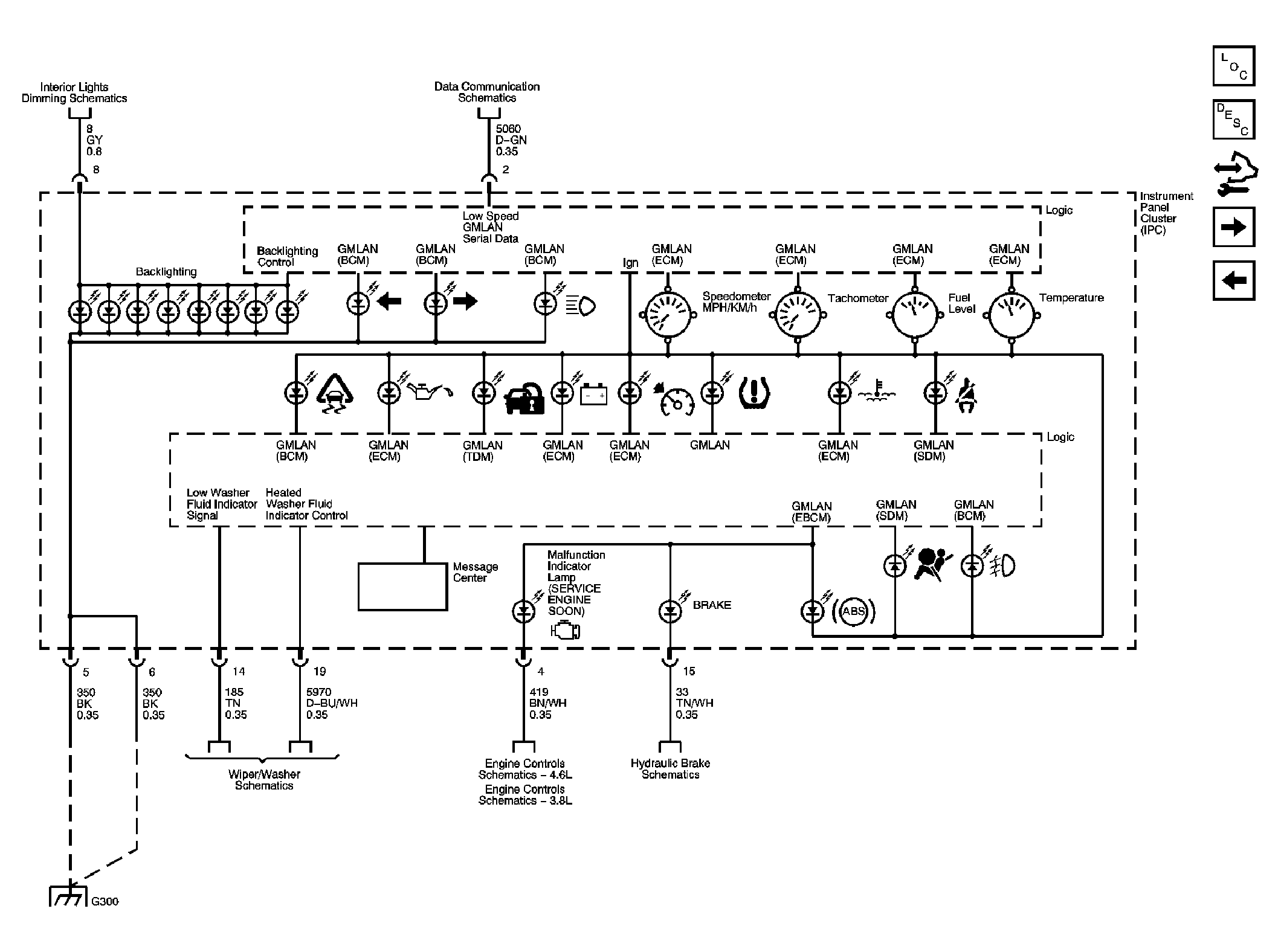

Fig 2: Indicators

Courtesy of GENERAL MOTORS CORP.

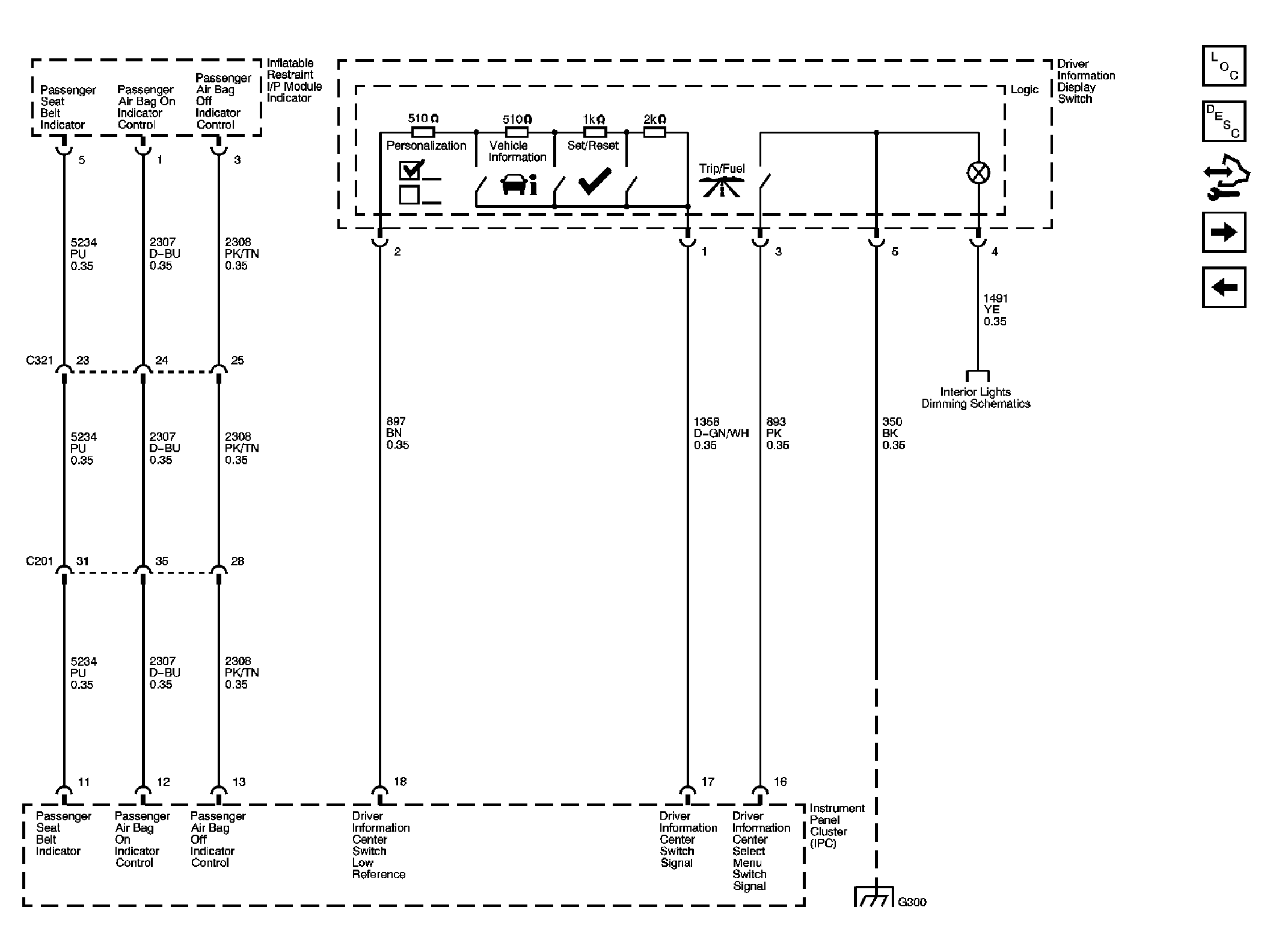

Fig 3: Inflatable Restraint Indicator and Driver Information Display

Courtesy of GENERAL MOTORS CORP.

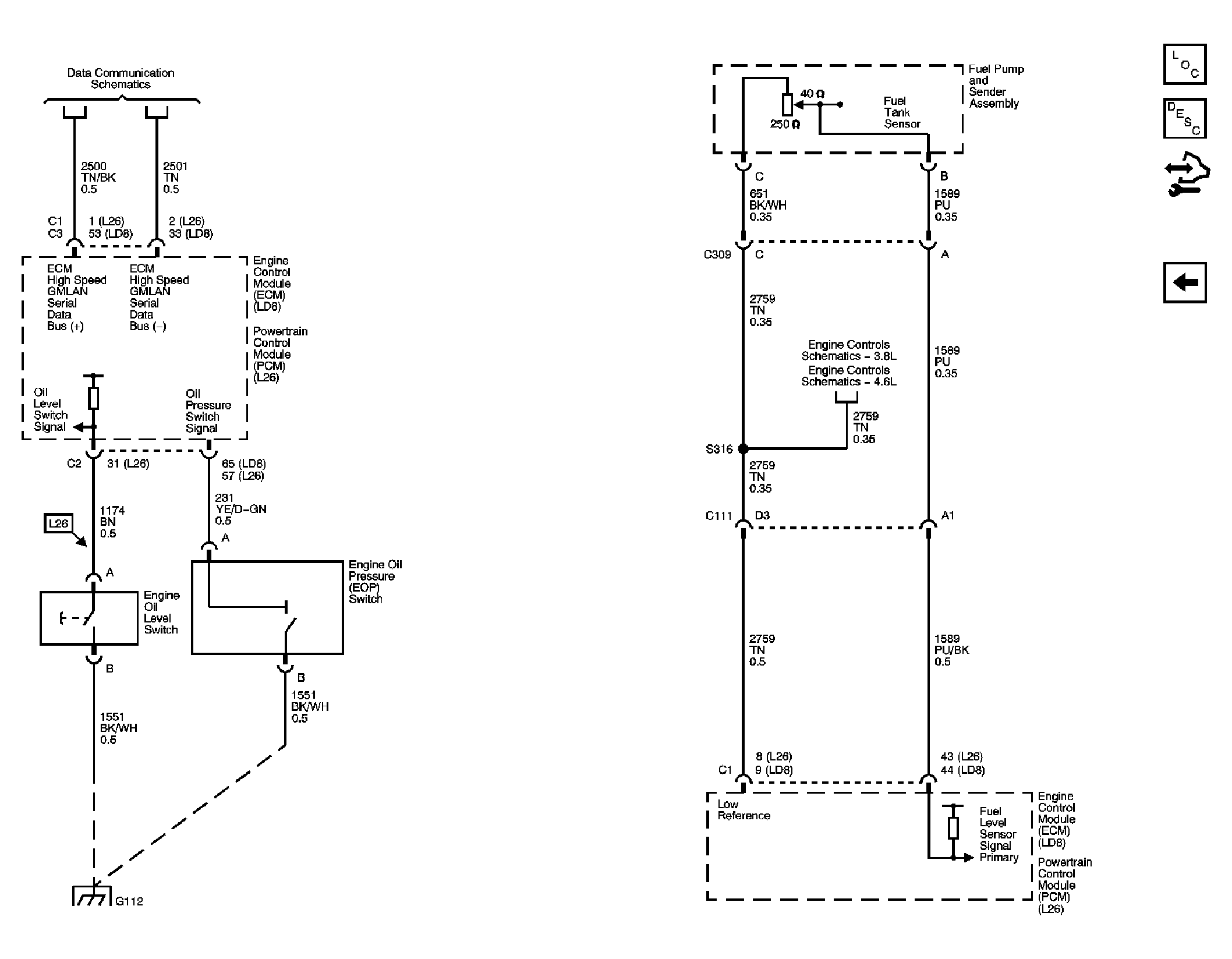

Fig 4: Oil Level, EOP, Fuel Level Sensor

Courtesy of GENERAL MOTORS CORP.
