Audible Warnings Schematics

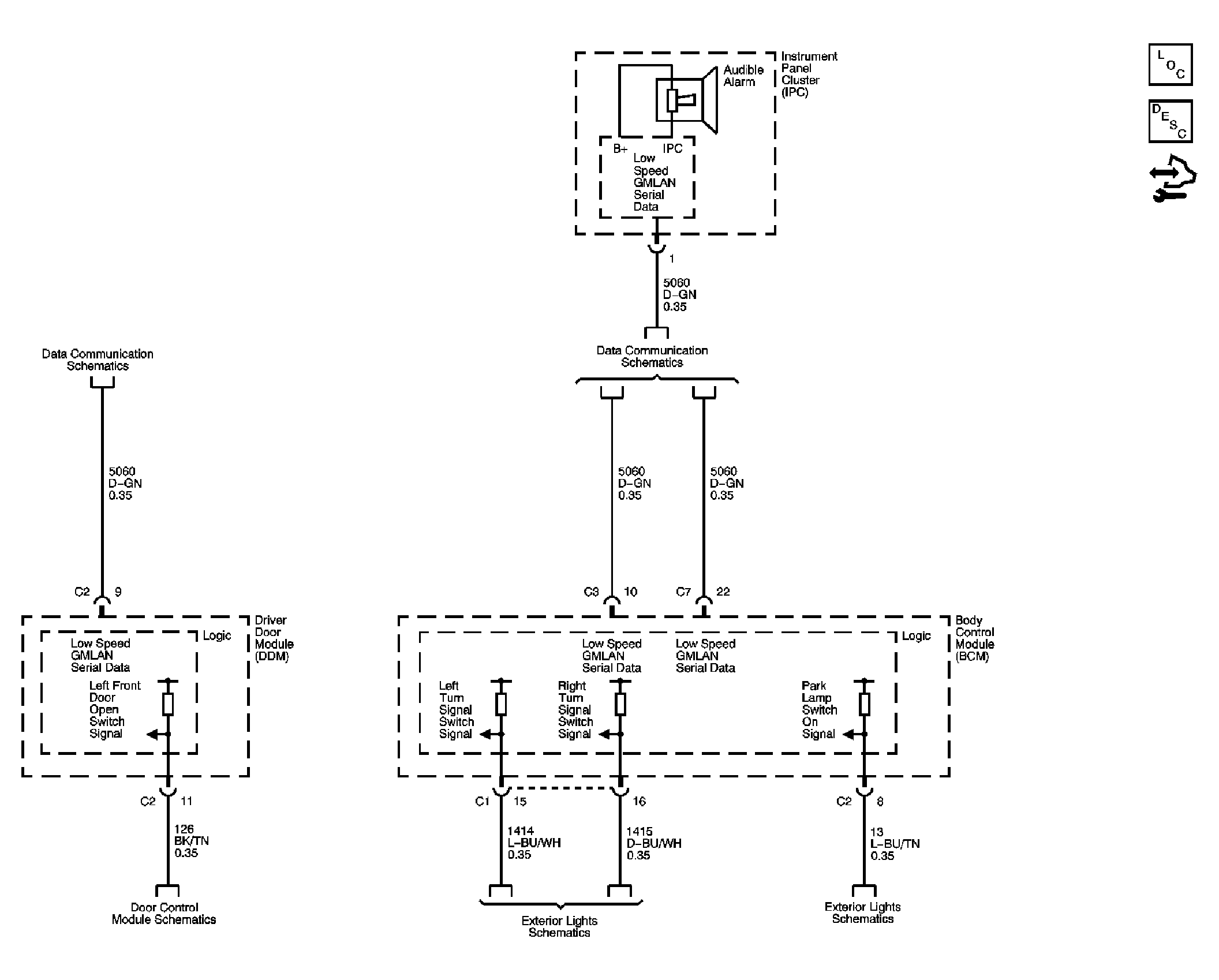

Fig 1: Audible Warnings Schematics

GM1792929

Courtesy of GENERAL MOTORS CORP.
