Hydraulic Brake Component Views

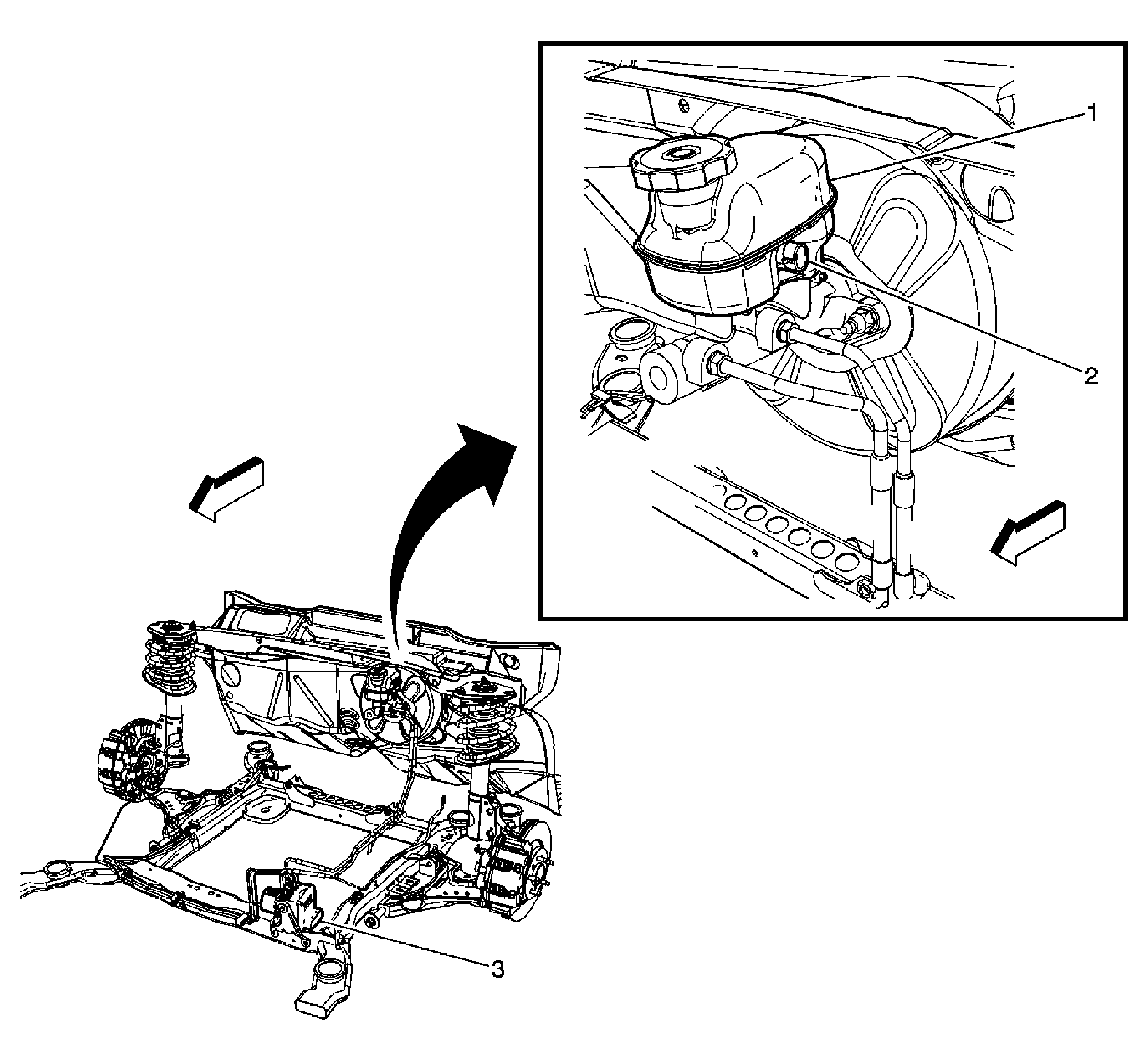

Fig 1: View Of Left Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Master Cylinder Reservoir
2	Brake Fluid Level Switch
3	Electronic Brake Control Module (EBCM)

Fig 2: Lower Left Side of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor
