Driver Seat Schematics

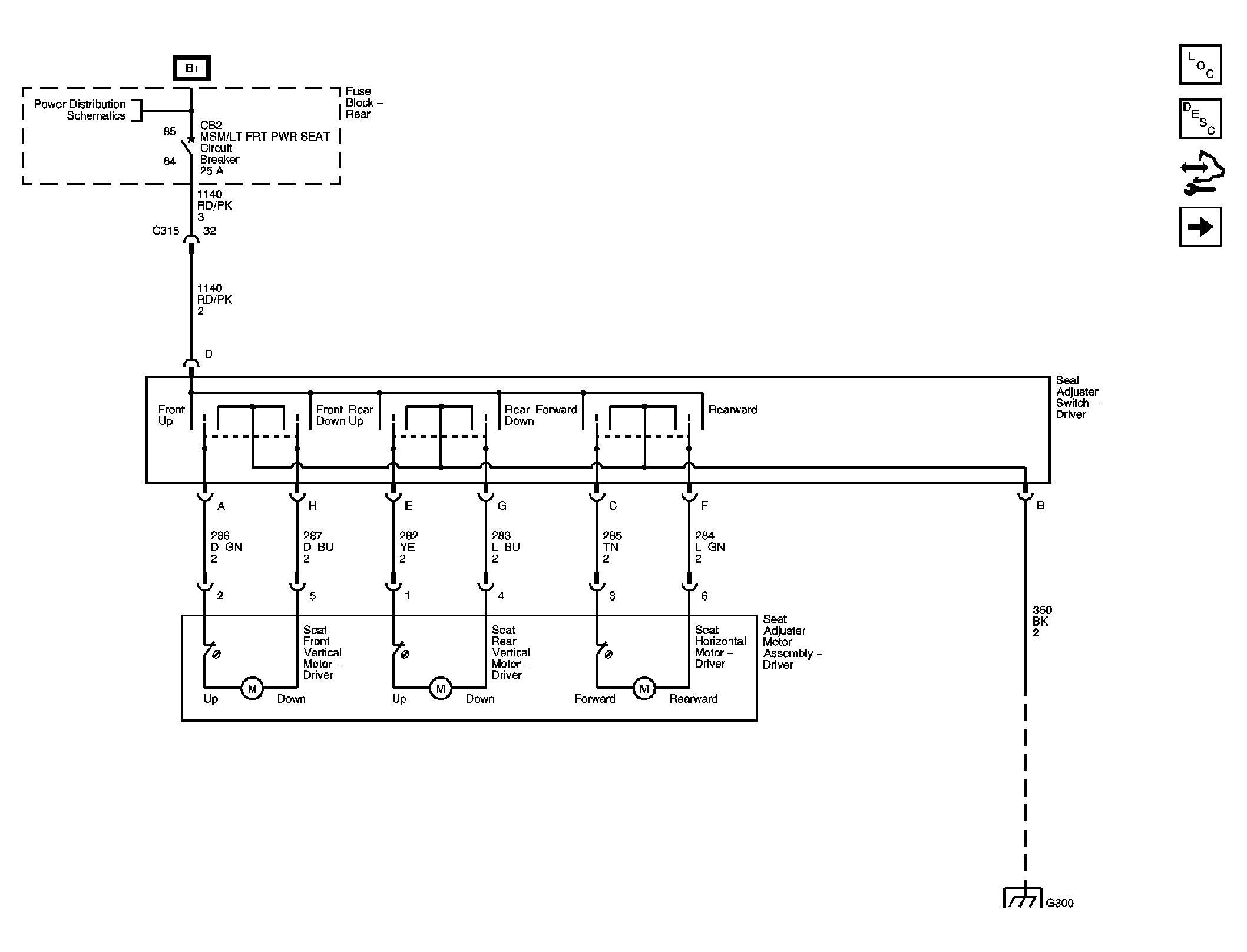

Fig 1: w/o A45
GM1793663Courtesy of GENERAL MOTORS CORP.

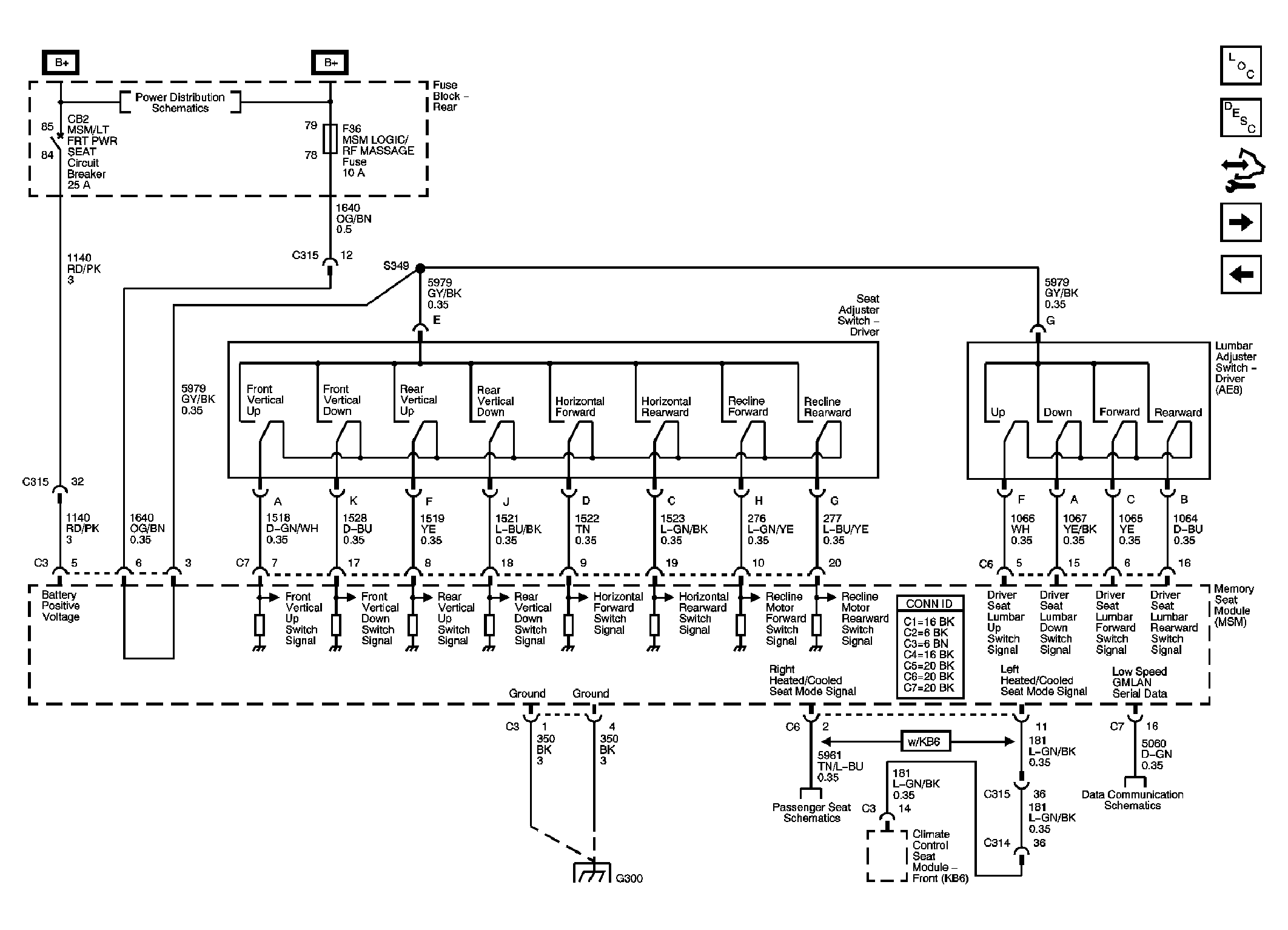

Fig 2: w/A45
GM1793680Courtesy of GENERAL MOTORS CORP.

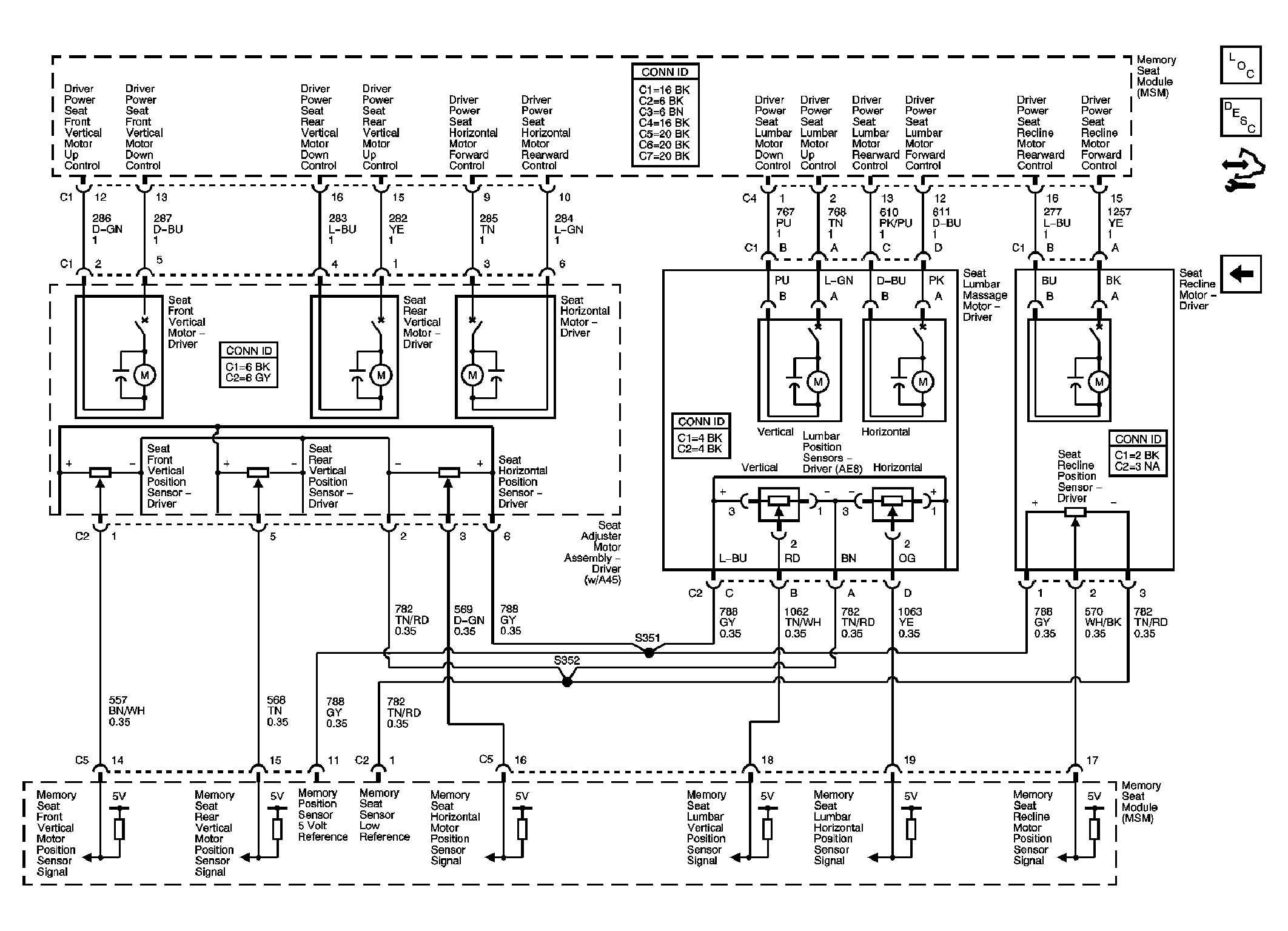

Fig 3: Position Sensors
GM1793688Courtesy of GENERAL MOTORS CORP.
