Wheelhouse Liner Panel Replacement - Rear

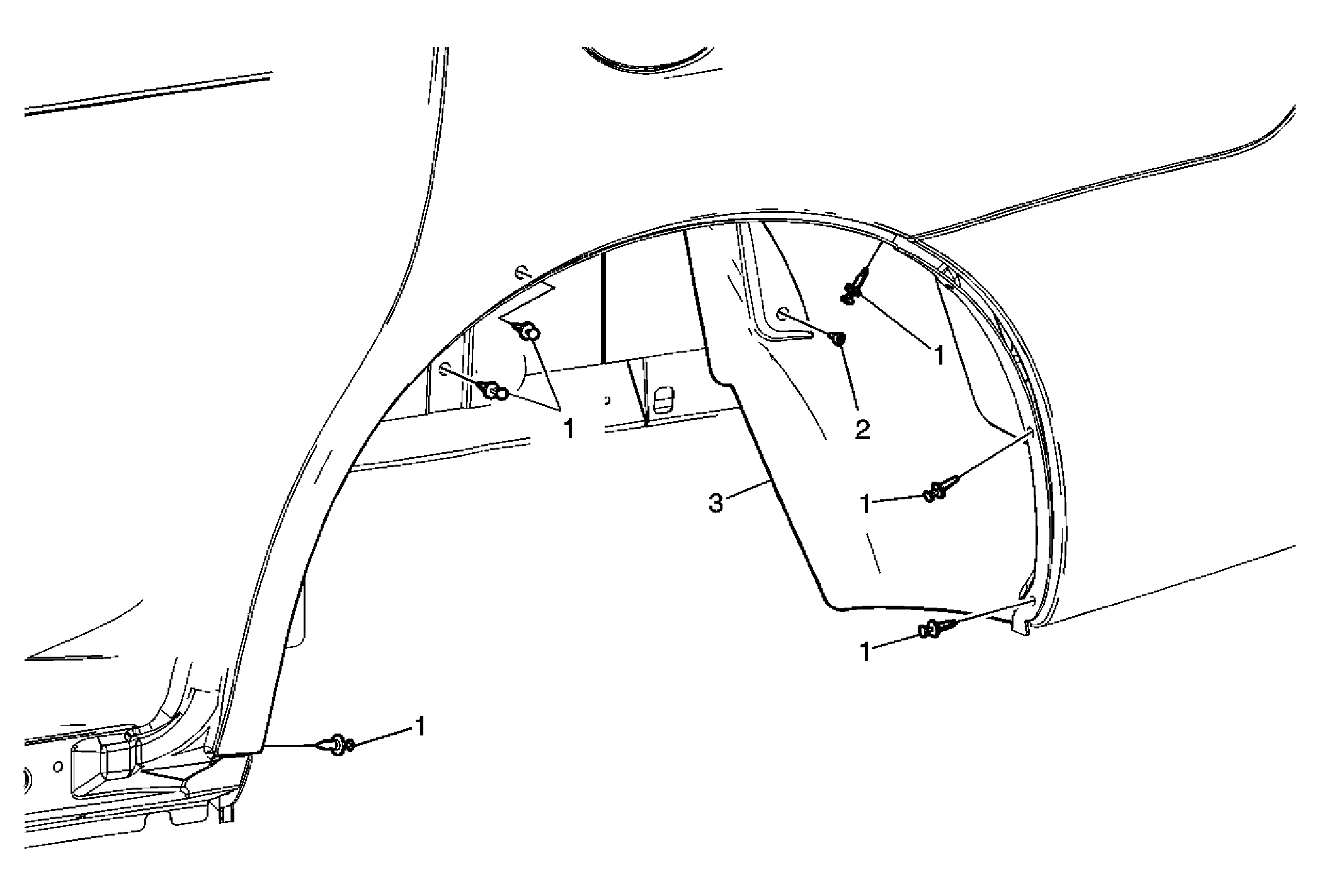

Fig 1: View Of Rear Wheelhouse Liner Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear wheel. Refer to Tire and Wheel Removal and Installation .
1	Rear Wheelhouse Liner Retainers (Qty: 6)
2	Rear Wheelhouse Liner Screw NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
3	Rear Wheelhouse Liner
